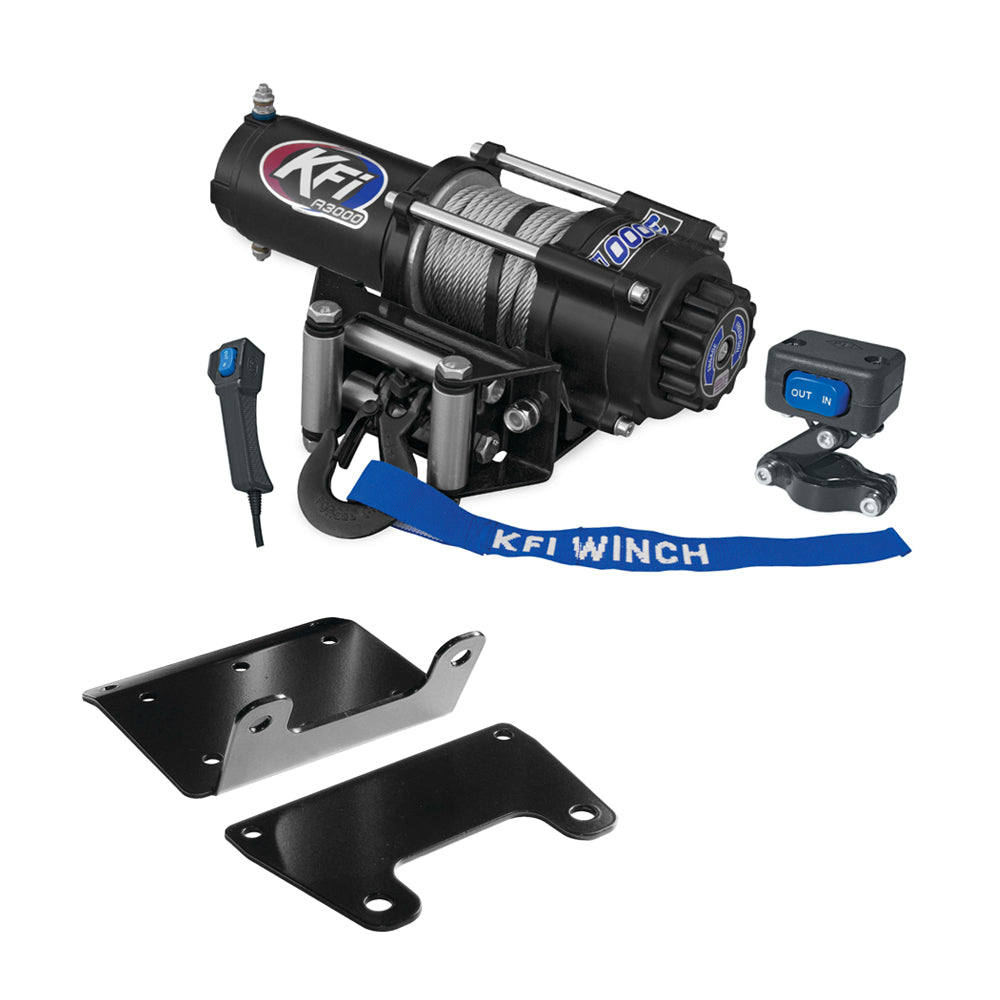

3000 lb KFI Winch Combo Kit (M3) For 2016-2017 Arctic-Cat 400 ALTERRA 4x4
3000 lb KFI Winch Combo Kit (M3) For 2016-2017 Arctic-Cat 400 ALTERRA 4x4
Part #A3000 and #100795
Fitment:
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Arctic-Cat 350 CR 4x4 2011-2012 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 366 4x4 2008-2011 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 400 ALTERRA 4x4 2016-2017 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 400 CR 4x4 2013-2015 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 425 CR 4x4 2011-2013 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 450 ALTERRA 4x4 2016 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 450 CR 4x4 2013-2015 | 100795 | --- | --- | 100795 | --- |
| Arctic-Cat 500 ALTERRA 4x4 2017 | 100795 | --- | --- | 100795 | --- |
| Textron 500 ALTERRA 4x4 2018 | 100795 | --- | --- | 100795 | --- |
Winch Details:

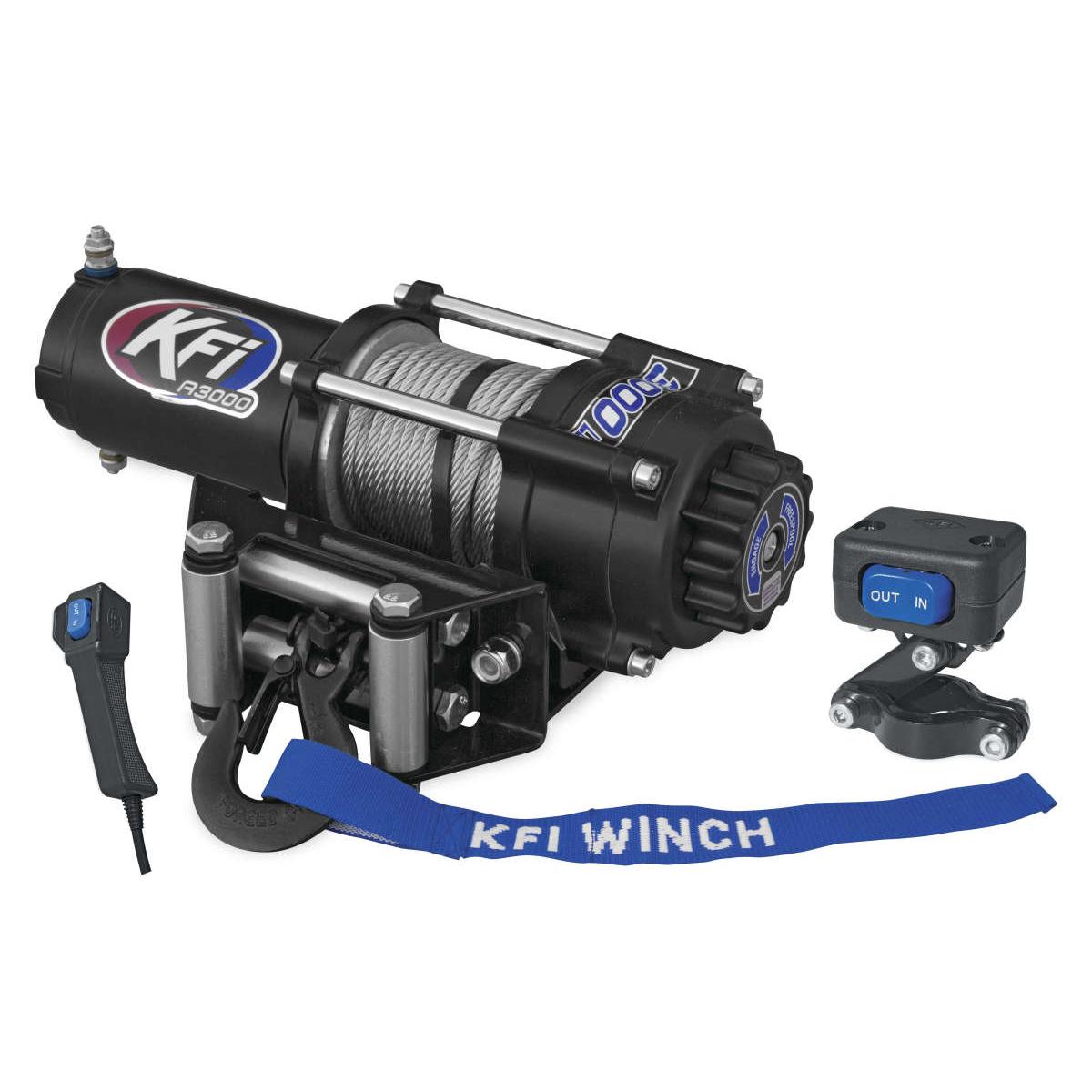

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3000lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a "KFI 1-Year Limited Warranty". The KFI A3000 winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
Winch Includes:
Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.
Also included is a Handheld 14' CordedRemote for those situations when you need to control your winch from a distance ordismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.
The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
| A3000 Specifications | |
| Model | A3000 ATV Series |
| Rated Line Pull | 3000 lbs. |
| Motor | 12V DC, 1.3 hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 1.5" (D) x 3.32" (L) |
| Cable | 3/16" (D) x 45.9' (L) |
| Fairlead | Multi-directional Roller |
| Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch |
| Winch Dimensions | 13.39" L x 4.06" D x 4.29" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 24.8 lbs. (complete kit) |

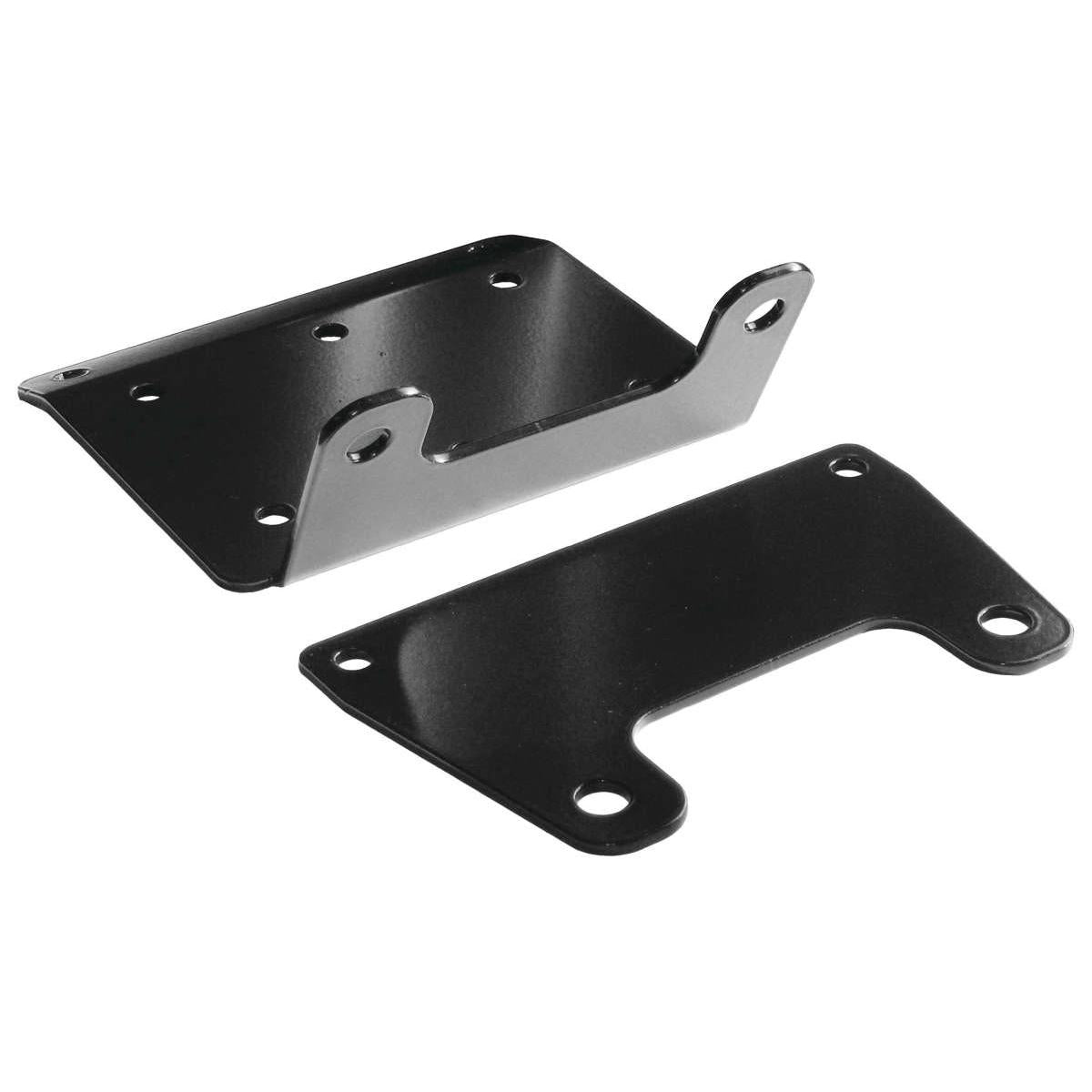

Mount Specs:
- 100% MADE IN USA.
- Constructed of 10GA Grade 50 steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- Satisfaction guaranteed.
