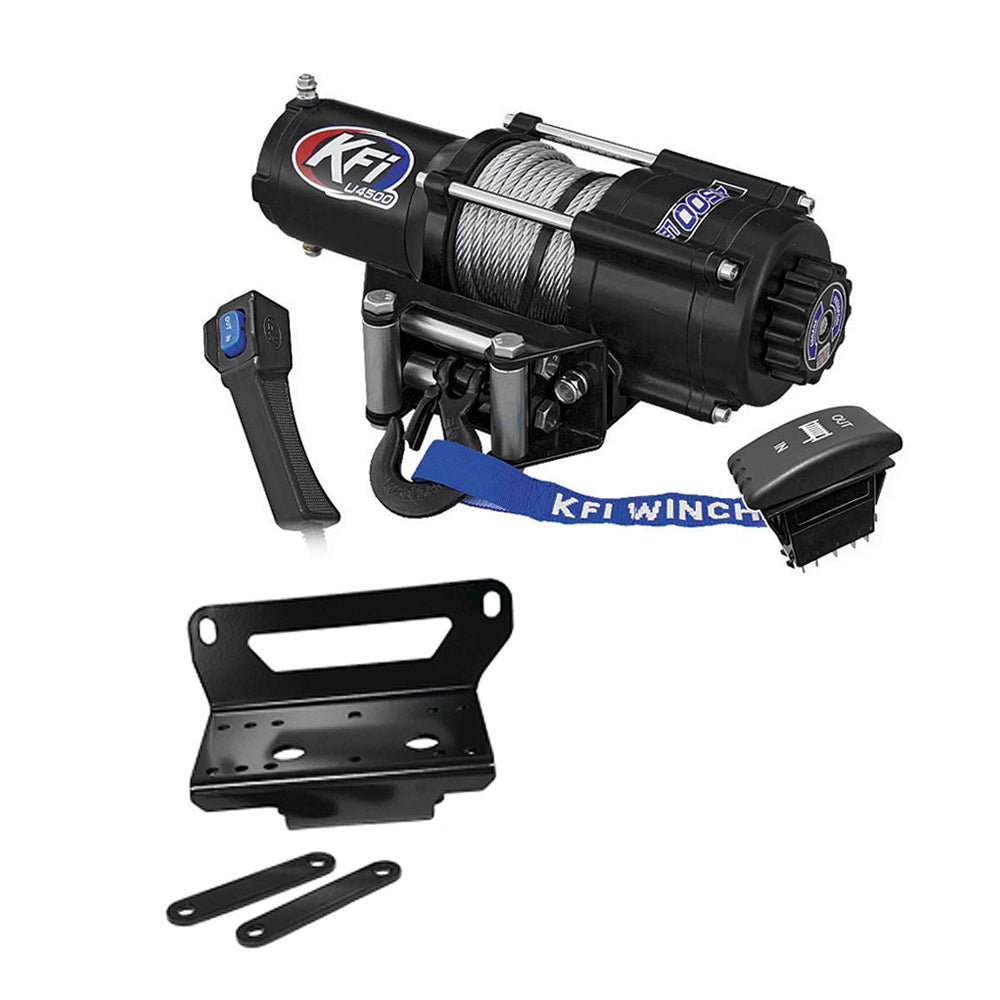

4500 lb KFI Winch Combo Kit (M5) For 2012-2016 John Deere Gator XUV 550
4500 lb KFI Winch Combo Kit (M5) For 2012-2016 John Deere Gator XUV 550
Part #U45-R2 and #100940
Fitment:
Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
---|---|---|---|---|---|
John Deere Gator RSX 860E ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator RSX 850i ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator RSX 860i ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator RSX 860M ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 550 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 550 S4 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 560 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 560 S4 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 560E ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 560E S4 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 590E ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 590E S4 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 590i ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 590i S4 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 590M ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |
John Deere Gator XUV 590M S4 ALL YEARS | 100940 | 100940 | 100940 | 100940 | 100940 |

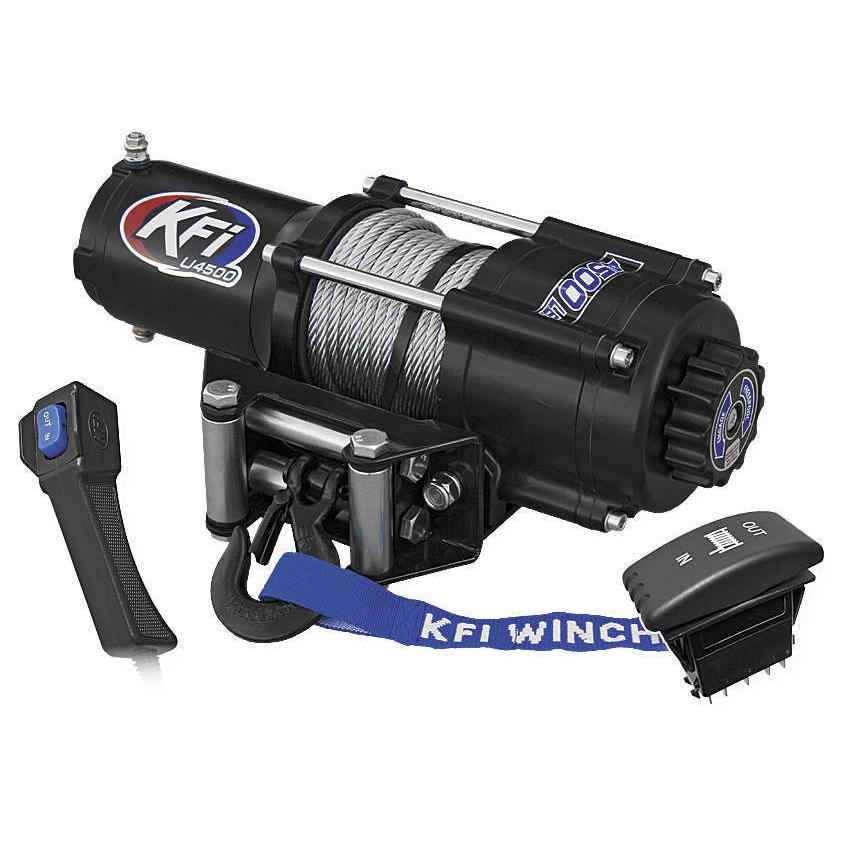

Winch Details:
Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 4500lb ATV/UTV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV/UTV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV/UTV winch mount.
Winch Includes:
38' Steel Cable #UTV-CBL-4K
Also included is a Handheld 14' Corded Remote(ATV-HR) for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring a system so that you can store your remote when not in use.
Take control of your winch with the included UTV Dash Rocker Switch (UTV-DRS-K). It comes with the switch and the wiring harness with the plug for easy install. The dash rocker also comes with a blue led light inside to light up your dash at night. This rocker switch allows you to control your winch with just the touch of your finger, never having to fully let go of your steering wheel.
The all New Heavy Duty Electric Contactor (ATV-CONT) protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.
U45w-R2 Specifications | |
Model | U4500 UTV Series |
Rated Line Pull | 4500 lbs. |
Motor | 12V DC, 1.7 hp Permanent Magnet |
Gear Ratio | 166:1 |
Gear/Transmission | All-metal Planetary Gear Drive |
Brake | Dynamic and Mechanical |
Clutch (free spooling) | All Metal Cam Activated Freespool |
Drum Size | 2" (D) x 3.19" (L) |
Cable | 15/64" (D) x 38' (L) |
Fairlead | Multi-directional Roller |
Control | Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch |
Winch Dimensions | 14.6" L x 4.55" D x 5" H |
Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV) |
Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
Recommended Battery | 12 Amp/hour minimum |
Warranty | Limited 1 Year |
Winch Weight | 36.6 lbs. (complete kit) |

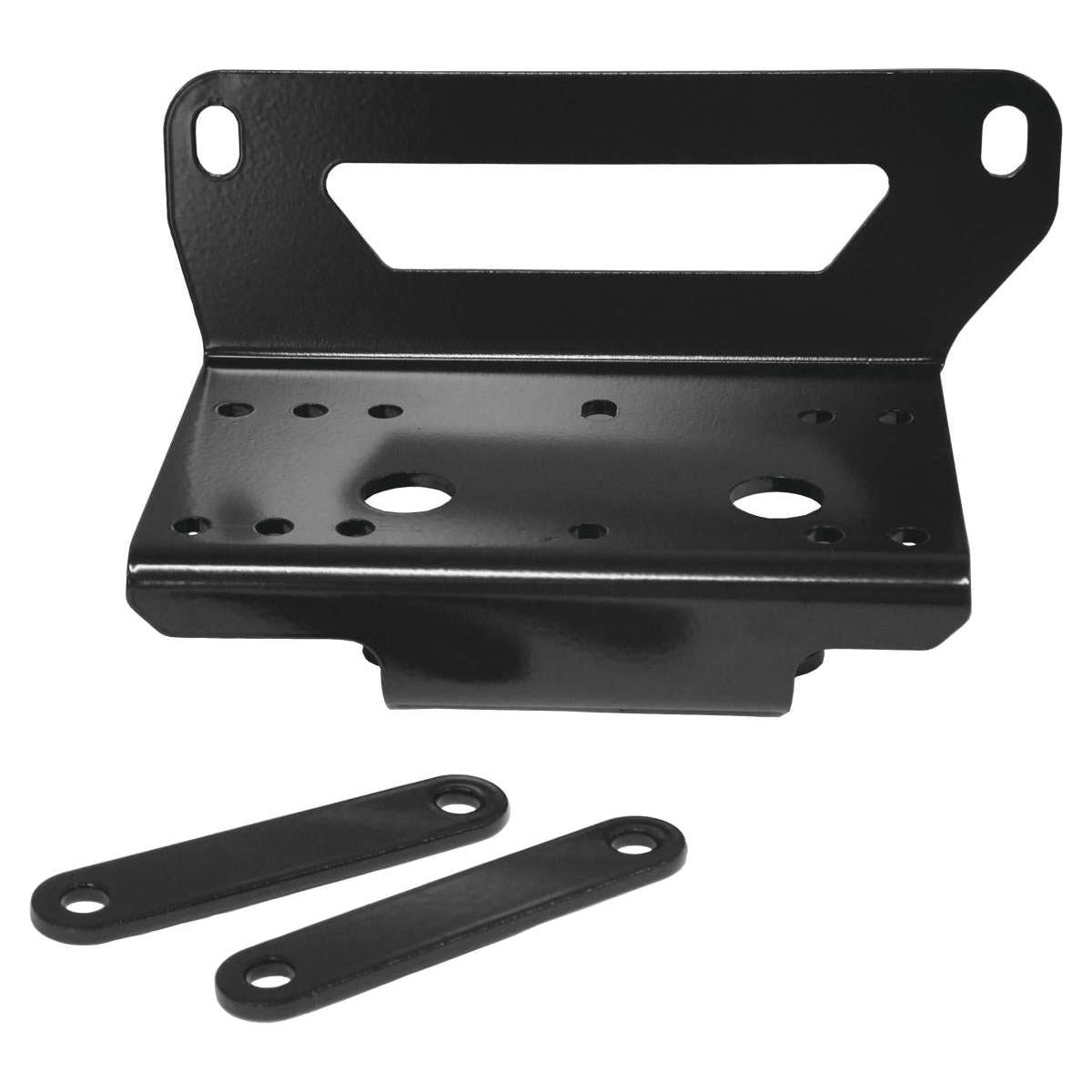

Mount Specs:
- 100% MADE IN USA.
- Constructed of 3/16" Grade 50 steel.
- Plastic trimming may be required for certain models and winches.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- Mounts winch tucked back behind front bumper.
- Satisfaction guaranteed.
Brand: KFI
Part Numbers:
1x U45-R2
1x 100940
