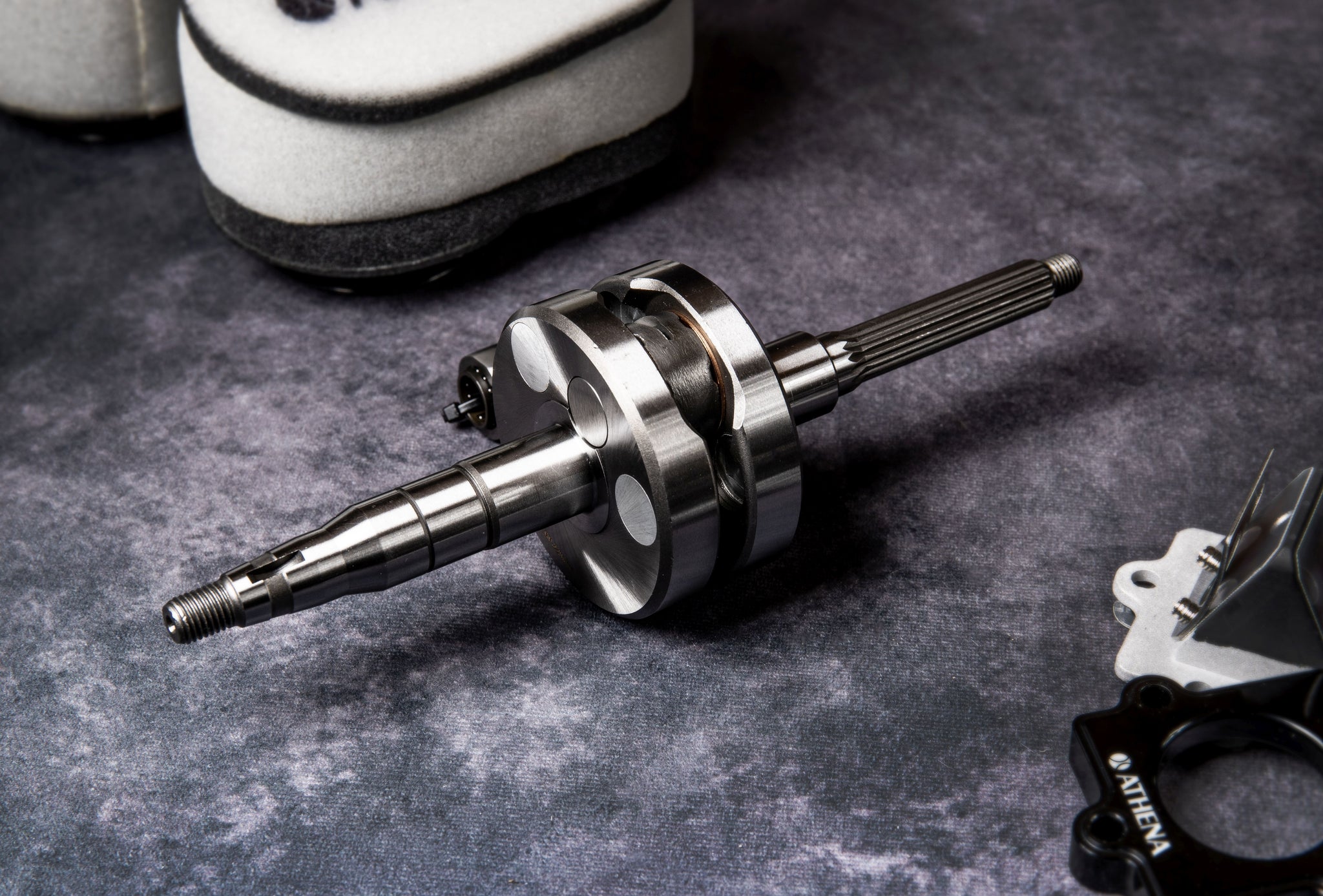

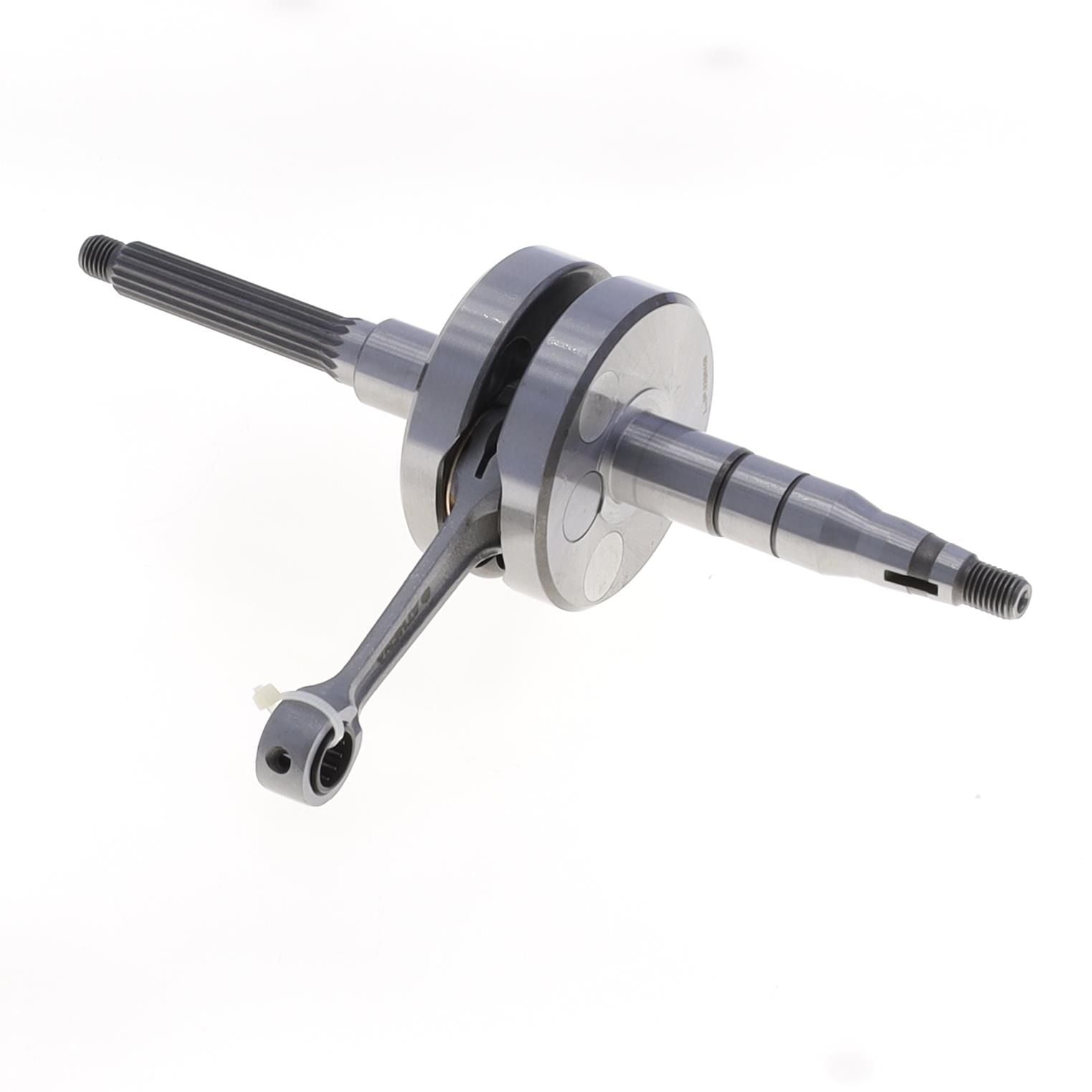

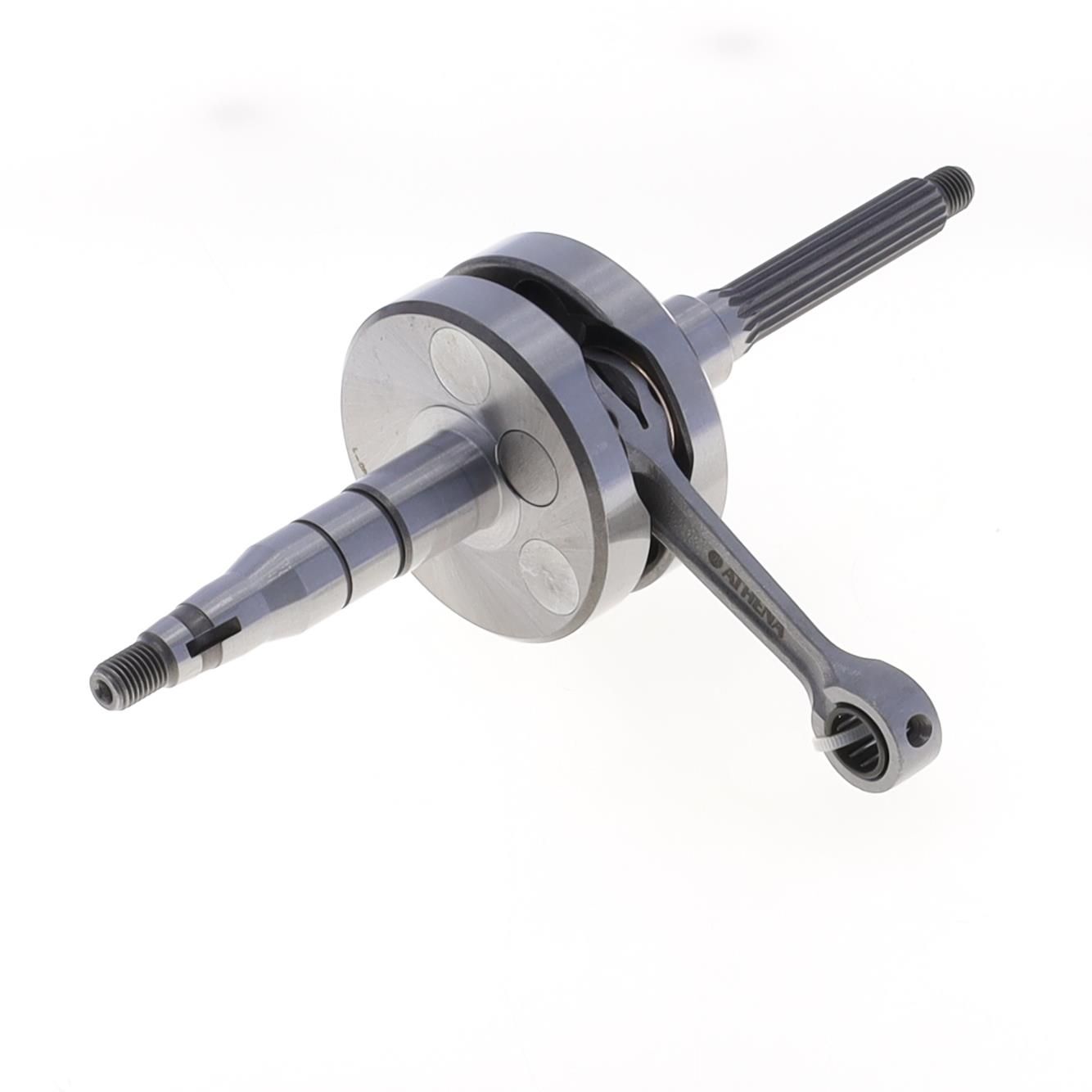

Athena Racing crankshaft 12mm pin S410485320007

The Racing Corsa Crankshaft and 12mm Pin is one of the fundamental components for transmitting motion: its design and production must be carefully cared for to guarantee maximum performance and reliability.

The new Racing Horizontal Minarelli Crankshaft is the result of studies and tests carried out by Athena's Technical and R&D Office, to obtain greater resistance under stressful working conditions, even in the most intensive uses. Forged in 18NiCrMo5 steel with a high breaking load, this crankshaft has been redesigned with aluminum inserts and lightened in weight, allowing for improved balance (over 16,000 rpm). In addition, vibrations have been eliminated in favor of increased longevity of the bearing shells, shims, and thermal part. The crankshaft is perfectly matched to Athena's racing cylinder kits.

The racing crankshaft is available with a connecting rod foot hole for either a 10mm or 12mm pin, and comes with special bearing cage.

Even the connecting rod has been redesigned, with an H shape and forged in 18NiCrMo5 steel, increasing its resistance and flexibility compared to those currently on the market.

All components are tested and approved after a series of endurance tests to complete a racing and high-quality product.

• Maximization of performances
• Resistance to extreme stress
• Perfectly match the original

Brand: Athena
Part Number: S410485320007

Fitment:

• Aprilia Rally 50 LC 1996-1999
• Aprilia Rally 50 1995-2002
• Aprilia Scarabeo 50 2T 1993-2002
• Aprilia SR50 LC 1997-2002
• Aprilia SR50R Replica SBK ARIA 1997-2001
• Benelli Pepe 50 1999-2001
• BETA Elkon 50 LC 1999-2003
• Italjet (Childrens Minis) Dragster 50 LC 1998-2000

Note: Image is for reference only, actual product may vary slightly.
