Baja Designs Frame Light Kit Each S1 Series Multi Pattern Clear Lens 387001
Customer Ratings
Baja Designs Frame Light Kit Each S1 Series Multi Pattern Clear Lens 387001
Baja Designs Frame Light Kit Each S1 Series Multi Pattern Clear Lens 387001
Spice your K 790 up with a lighting kit from Baja Designs! This kit includes everything you need such as wiring, lights, bracketry, and hardware. This kit utilizes our S1 series of light, and will provide ample performance for any adventure you're on. Installation is a breeze, and the fient is second to none!
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 2,375 Utilizing 1 LED
- Wattage/Amps: 20W / 1.45A
- Dimensions: 2.1 Inch x 2.1 Inch x 2.1 Inch
- Safe Voltage Range: 9-28V
- Weight: 0.4 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

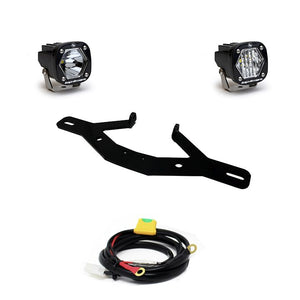

Kit Includes:
- 19-On KTM 790
- x1 S1 Spot LED Light
- x1 S1 Wide Cornering Light
- Mounting Brackets
- Wiring Harness
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
0Brand: Baja Designs
Part Number: 387001
Fitment:
- KTM 390 Adventure 2020-2021
- KTM 790 Adventure 2019-2020
- KTM 790 Adventure R 2019-2020
- KTM 790 Adventure R Rally 2020
- KTM 890 Adventure 2021-2022
- KTM 890 Adventure R 2021-2022
Note: Image is for reference only, actual product may vary slightly.
