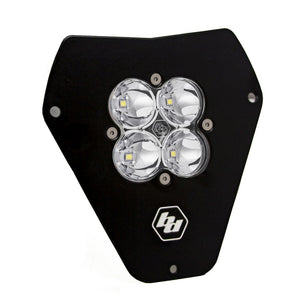

Baja Designs Headlight Kit Squadron Sport Series Spot Pattern Clear Lens 557051
Customer Ratings
Baja Designs Headlight Kit Squadron Sport Series Spot Pattern Clear Lens 557051
Baja Designs Headlight Kit Squadron Sport Series Spot Pattern Clear Lens 557051
If you are looking for an off road light that features unique styling and leading edge performance, than the Squadron Sport, LED KTM 2008-2013 Kit is the light for you.
The Sport produces an impressive 2,260 lumens while only drawing 20 watts, allowing for a longer ride. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Note: For the EXCs that were made from 2007-2011 that are carbureted, our lights will require the purchase of 61-1040 (DC conversion kit).
Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.
For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike).
Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 2,260 Utilizing 4 LEDs
- Wattage/Amps: 20W / 1.4A
- Dimensions: 3.07 x 2.77 x 3.07 inch
- Weight: .90 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing
Includes:
Squadron Sport, LED KTM 2008-2013 Kit
Spot: A longer and narrower 8 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
0Brand: Baja Designs
Part Number: 557051
Fitment:
- KTM 250 SXF 2011-2013
- KTM 250 XC-F 2011-2013
- KTM 250 XCF-W 2011-2013
- KTM 350 EXC F 2012-2013
- KTM 350 SXF 2011-2013
- KTM 350 XC-F 2011-2013
- KTM 350 XCF-W 2012-2013
- KTM 450 XC-W 2008-2012
- KTM 500 EXC 2012-2013
- KTM 500 EXC Six Days 2012-2013
Note: Image is for reference only, actual product may vary slightly.
