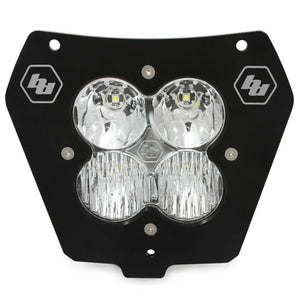

Baja Designs Headlight Kit XL Sport Series Driving/Combo Pattern Clear Lens

If you are looking for an off road light that features unique styling and leading edge performance, than the XL Sport, LED KTM 2014-2016 Kit is the light for you. The XL Sport produces an impressive 2,260 lumens while only drawing 20 watts, allowing for a longer ride. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: For the EXCs that were made from 2007-2011 that are carbureted, our lights are plug and play with the purchase of 61-1040 (DC conversion kit).

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

A Skene dimmer must be purchased separately to enable the high/low feature.

Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It.
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 2,260 Utilizing 4 LEDs
• Wattage/Amps: 20W / 1.4A
• Dimensions: 4.43 x 3.65 x 4.43 inch
• Weight: 1.85 Lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes:
XL Sport, LED KTM 2014-2016 Kit

Brand: Baja Designs
Part Number: 567081

Fitment:

• KTM 250 SXF 2013-2016
• KTM 250 SXF Factory Edition 2016
• KTM 250 XC-F 2013-2016
• KTM 250 XCF-W 2014-2016
• KTM 350 SXF 2013-2016
• KTM 350 XC-F 2013-2016
• KTM 350 XCF-W 2014-2016
• KTM 350 XCF-W Six Days 2016
• KTM 450 XC-F 2013-2016
• KTM 450 XC-W 2013-2016
• KTM 500 EXC 2014-2016
• KTM 500 EXC Six Days 2016
• KTM 500 XC-W 2013-2016

Note: Image is for reference only, actual product may vary slightly.
