Dakota Digital 1961 62 Chevy Impala Retrotech Analog Gauge System RTX-61C-IMP-X
Dakota Digital 1961-62 Chevy Impala RTX Instruments- RTX-61C-IMP-X

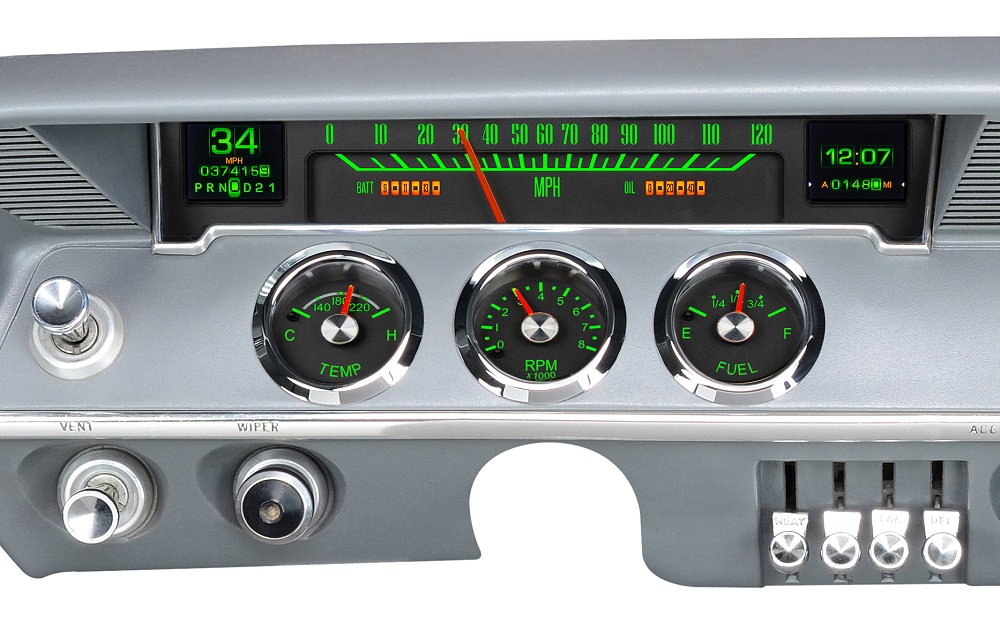

Embrace the shapes in your 1961-62 Chevy dashboard and drop this multi-function, multi-color beauty in place! New aluminum chrome bezels are supplied for the round gauges, while your stock stamped trim for the speedometer is reused. From three-wheeling down Whittier Blvd. to power shifting a 409/425, the stock look will make you smile every time you hit the key!
*Bezel is NOT included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
MTX-61C-IMP-X metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take 4-8 weeks to build. If you want the metric version, just let us know when you make your purchase.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed, or just leave the vintage-looking tumbler odometer on the screen for a totally stock appearance. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Please scroll through the listing below for a more in-depth look at the RTX series and lots more pics!
RTX System Includes:
Speedometer - 0-120 MPH (optional metric version 0-200 kmh)
Tachometer - 0-8000 RPM
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Digital Message Centers
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Estimated Range/Miles to Empty
0-60 MPH Timer (0-100 kmh)
1/4 and 1/8 mile time
1/4 and 1/8 mile end speed (trap speed)
High speed recall
High RPM recall
Turn Signals (Left/ Right)
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Two Auxiliary input indicators with user-programmable labels
Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
**Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Both daytime and nighttime brightness can be easily controlled through the RTX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 (sold separately) is a common accessory to add this functionality.
With 12 facto
Brand: Dakota Digital
Part Number: RTX-61C-IMP-X
