Description

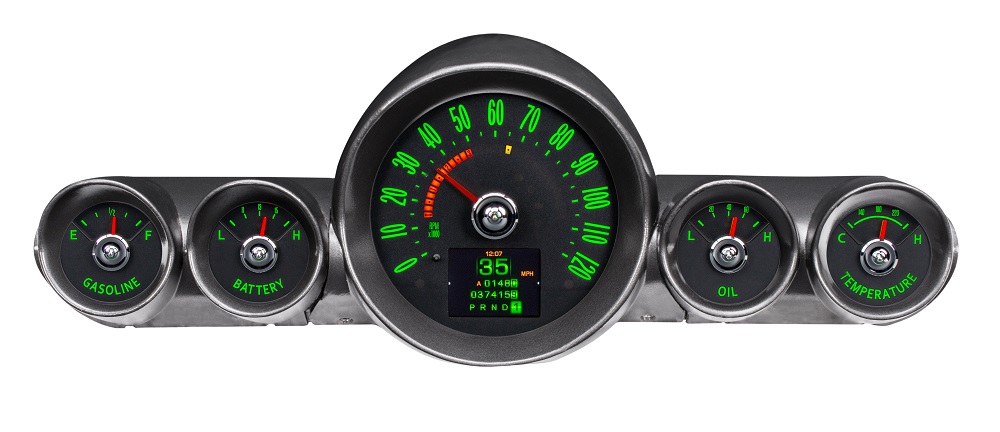

Dakota Digital 1959-60 Chevy Impala / El Camino RTX Instruments- RTX-59C-IMP-X



Fins and style for miles, but the 1959-60 Chevy dash has become an icon in the custom world. We find these quintuple clusters installed in everything from kustoms to mini trucks, and the RTX series is sure to wow them all. OE-styling for the faces with a large, full color TFT digital display and the flexibility to choose your own lighting colors make this a slam dunk. Requires use of stock gauge pods, which Dakota Digital does not offer.

*Bezel and gauge pods are NOT included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel and gauge pods.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed, or just leave the vintage-looking tumbler odometer on the screen for a totally stock appearance. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Please scroll through the listing below for a more in-depth look at the RTX series and lots more pics!

MTX-59C-IMP-X metric system (KM/H and degrees Celsius) is available as a custom option for no additional cost, but may take 4-8 weeks to build. If you want the metric version, just let us know when you make your purchase.

RTX System Includes:

Analog Gauges

Speedometer - 0-120 MPH (optional metric version 0-200 kmh)

Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF (optional metric version 40-120ºC)
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC

Digital Bar Graph Gauges

Tachometer - 0-8000 RPM

Digital Message Centers

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)
Estimated Range/Miles to Empty

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 and 1/8 mile time
1/4 and 1/8 mile end speed (trap speed)
High speed recall
High RPM recall

Built-In Indicators:

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Two Auxiliary input indicators with user-programmable labels
Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

**Not all OEM indicator lamp functions will be replaced.

  • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Lighting:

Colors

Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Brightness

Both daytime and nighttime brightness can be easily controlled through the RTX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the

Brand: Dakota Digital
Part Number: RTX-59C-IMP-X
