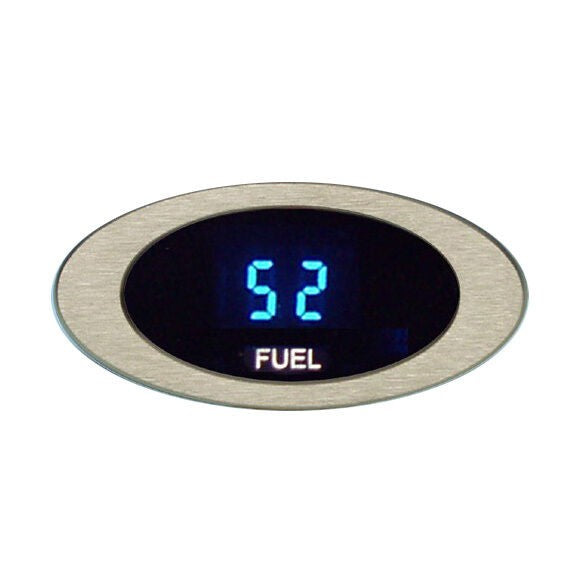

Dakota Digital ION Series Oval Fuel Level Gauge Satin or Chrome Bezel ION-06-1
Fuel Level Gauge
from Dakota Digital
ION-06-1
Description from Dakota Digital:
The Ion Series of instrumentation from Dakota Digital offers the latest in modern styling, cutting edge technology and the utmost digital accuracy for your custom ride! The Ion Series was designed to set itself apart from the standard gauge look offering sleek, streamlined instrumentation to match the theme of today’s high tech vehicles. Enclosed in fully machined aluminum housings the Ion Series offers a truly astounding look to match the superb performance.
Range: 0- 99%
- Choice of either Teal or Blue display.
- Choice of either Satin or Chrome bezel.
- Machined aluminum bezel and housing.
* Non-glare lens option available on Teal display only.
Gauge preset to work with the following fuel senders resistance ranges:
Sender Type Empty Resistance Full Resistance
GM30 0ohms 30ohms
GM90 0ohms 90ohms
GM250 40ohms 250ohms
Ford10 73ohms 10ohms
Ford150 20ohms 150ohms
VDO 10ohms 180ohms
Stewart Warner/Sun 240ohms 33ohms
Import 112ohms 4ohms
* Choice of either BLUE or TEAL display.
* Choice of either Black or Chrome bezel.
* Machined aluminum housing.
* Non-glare lens option available on Teal display only.
Don't forget: When making your payment, please put in the note field which display you would like (blue or teal) and which bezel you would like (black or chrome).
Brand: Dakota Digital
Part Number: ION-06-1
