Demon Heavy Duty Axle For Polaris Models 2016-2021 PAXL-6076HD
Demon Heavy Duty Axle For Polaris Models 2016-2021 PAXL-6076HD
NOTES:
Through years of research and development Demon Powersports has developed an axle that doesn?t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger. Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity. These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40? articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45?-47? depending on the model. The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.Trust in Demon Heavy Duty Axles to keep you riding!!
Four axles are required per vehicle
Description:
- 15%-20% increase in diameter compared to regular axle
- Inner cage made up of 4340 chromoly steel
- Dual heat treated high strength chromoly steel shaft
- Thermoplastic polyester elastomer (TPEE) Boot
- 10%-15% increase in CV joint size compared to regular joints
- Wider articulation angles
- Dual plunge design prevents axle from binding
- Packed with high load molybdenum grease Precision CNC machined
- Can Fit 1.5?- 5? Bracket lift of particular brands/ All Portal Gear Lifts / 1.5?- 5? A-arms of particular brands
- 1-year ltd warranty
Brand: Demon
Part Number: PAXL-6076HD
Fitment:
- 2016-2021 Polaris Sportsman 450 HO
- 2016-2020 Polaris Sportsman 450 HO EPS
- 2017-2019 Polaris Sportsman 450 Utility Edition HO
- 2022 Polaris Sportsman 570
- 2015-2021 Polaris Sportsman 570
- 2022 Polaris Sportsman 570 6x6
- 2019-2021 Polaris Sportsman 570 6x6
- 2017-2018 Polaris Sportsman 570 6x6 Big Boss EPS
- 2022 Polaris Sportsman 570 EPS
- 2015-2021 Polaris Sportsman 570 EPS
- 2022 Polaris Sportsman 570 Hunter Edition
- 2020-2021 Polaris Sportsman 570 Hunter Edition
- 2022 Polaris Sportsman 570 Premium
- 2020-2021 Polaris Sportsman 570 Premium
- 2022 Polaris Sportsman 570 Touring
- 2015-2021 Polaris Sportsman 570 Touring
- 2022 Polaris Sportsman 570 Touring EPS
- 2015-2021 Polaris Sportsman 570 Touring EPS
- 2021-2022 Polaris Sportsman 570 Trail
- 2017-2019 Polaris Sportsman 570 Utility Edition EPS
- 2015 Polaris Sportsman ACE 570
- 2015 Polaris Sportsman ACE 570 SP
- 2015-2019 Polaris Sportsman SP 570 Hunter Edition
- 2015-2019 Polaris Sportsman SP 570 Touring
- 2015-2019 Polaris Sportsman SP 570
- 2020 Polaris Sportsman Touring 570 Premium
- 2015-2019 Polaris Sportsman X2 570 EPS
- 2020-2021 Polaris Sportsman X2 570

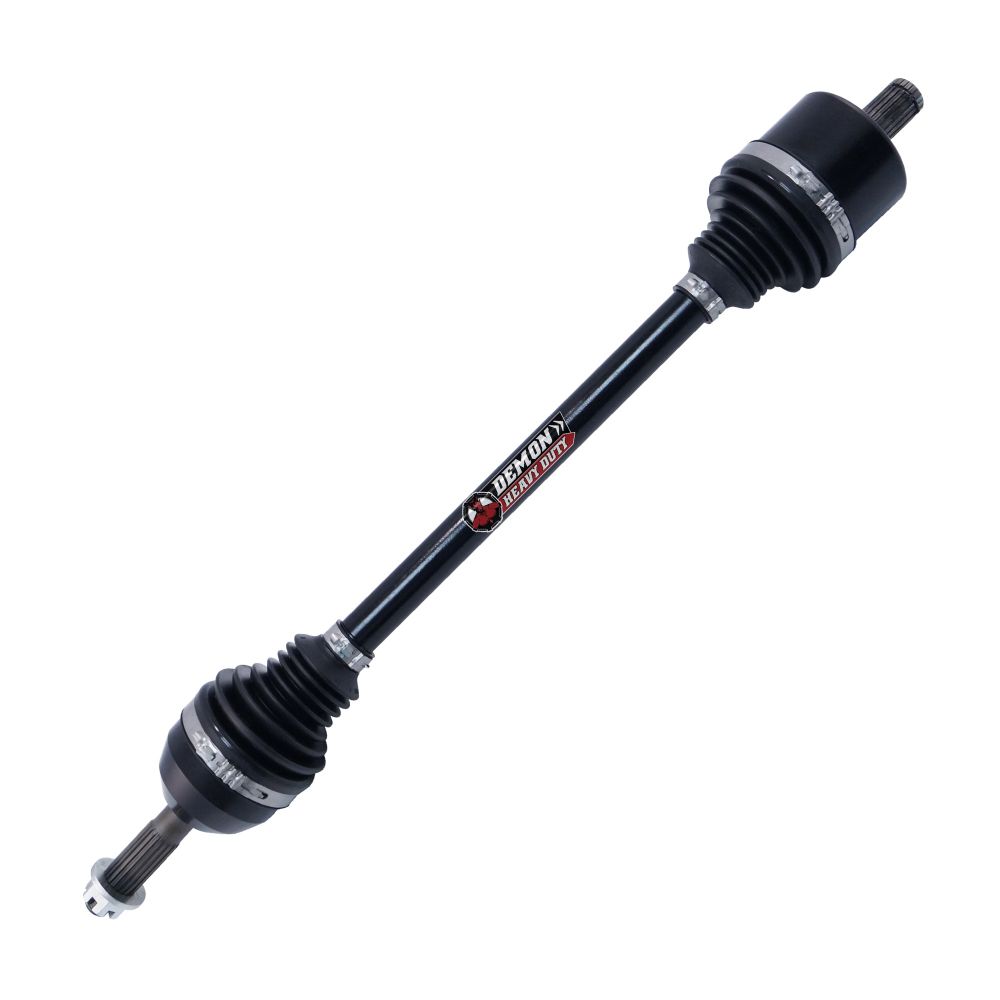

Note: Image is for reference only, actual product may vary slightly.
