Denali UTV Snow Plow Kit For Odes UTVs Dominator 1000 4X4 4 Door 2015-2016

NOTES:

DENALI UTV Snow Plow Mounts are used for DENALI UTV Snow Plows. They are made of 100% laser cut 1/4" steel and includes all the necessary hardware for mounting. Custom slotted holes allow the plow blade to hug the ground while the overall design of the side walls is formed from the body to maximize the strength of the mount. All components of the mount are welded together to create an impact resistant plow mount plate.

Please Note: the silver, Quick Release Pins, are NOT included with the purchase of the plow mount plate. They are available for sale separately.

Mount Specs:

• 1/4" steel
• 100% laser cut
• Black, industrial powder coat finish
• Includes mounting hardware and detailed instructions

Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch 3500lb or larger.

Our DENALI Standard Straight Series UTV Snow Plow by MotoAlliance is made to handle the toughest conditions including sand, snow and ice. The 65 degree attack angle and over center design of the plow ensures snow rolls up and is thrown forward. The "Easy-Connect" design will make attaching and detaching your plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV, preventing damage to the front end or other vehicle parts from sudden impact. The snow plow mount plate is specifically engineered to fit the frame of your UTV and can remain on your vehicle year round.

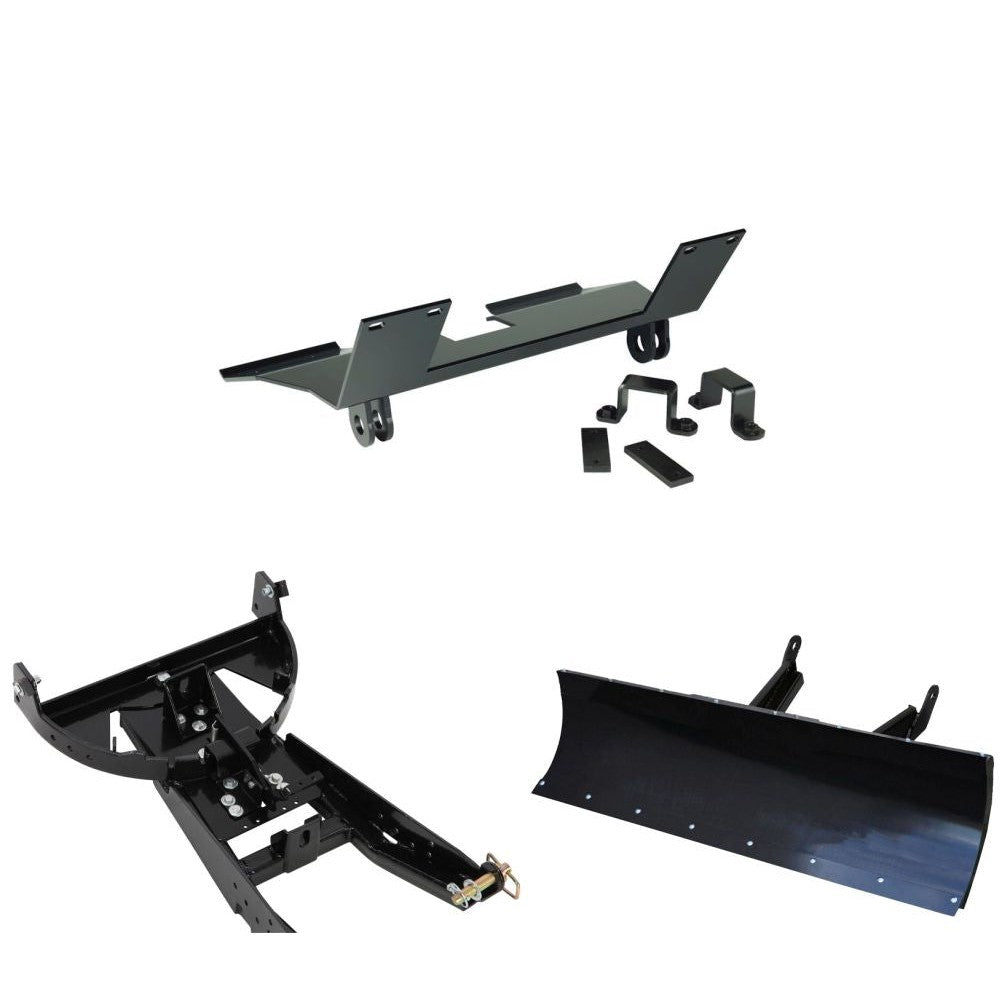

Kit Contents:

• UTV Snow Plow Blade of your choosing
• UTV Pushtube
• Two (2) Wearbars
• Skid Feet
• Plow Mount (machine specific)
• Installation Hardware and Instructions

Standard Series Snow Plow Blade Specs

• Heavy duty blade (19 inch scoop) made of 11-gauge steel
• Four 7 gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65" attack angle and over center design ensures snow rolls up and is thrown forward
• 3/16" thick, 7 gauge steel replaceable wearbars
• Height AND angle adjustable steel skid feet
• 3 Year Warranty

Pro Series Snow Plow Blade Specs

• County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
• Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
• Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
• High strength, high yield 3/16 thick Grade 50 steel wear bar
• Angled Blade : 16 on the low side; 23 on the high side
• Rubber flap & stabilizer bar with rubber flap
• Height AND angle adjustable steel skid feet
• 3 Year Warranty
• Made in the USA

Brand: Denali
Mount Part Number: MA11724
Pushtube Part Number: PTUT

Fitment:

• 2009-2014 Yamaha Rhino 450 YXR450FA 4x4
• 2009-2014 Yamaha Rhino 450 YXR450FAH 4x4 Hunter Edition
• 2009-2014 Yamaha Rhino 450 YXR450FASE 4x4 Special Edition
• 2009-2014 Yamaha Rhino 450 YXR450FH 4x4 Hunter Edition
• 2009-2014 Yamaha Rhino 450 YXR450FSE 4x4 Special Edition
• 2009-2014 Yamaha Rhino 660 YXR660FA 4x4
• 2009-2014 Yamaha Rhino 660 YXR660FAEX 4x4 Exploring Edition
• 2009-2014 Yamaha Rhino 660 YXR660FAH 4x4 Hunter Edition
• 2009-2014 Yamaha Rhino 660 YXR660FASE 4x4 Special Edition
• 2009-2014 Yamaha Rhino 660 YXR660FDU 4x4 Ducks Unlimited Edition
• 2009-2014 Yamaha Rhino 660 YXR660FH 4x4 Hunter Edition
• 2009-2014 Yamaha Rhino 660 YXR660FSE 4x4 Special Edition
• 2009-2014 Yamaha Rhino 660 YXR660FSP 4x4 Sport Edition
• 2009-2014 Yamaha Rhino 700 YXR700F 4x4 FI
• 2009-2014 Yamaha Rhino 700 YXR700FDU 4x4 Ducks Unlimited Edition FI
• 2009-2014 Yamaha Rhino 700 YXR700FH 4x4 Hunter Edition
• 2009-2014 Yamaha Rhino 700 YXR700FH 4x4 Hunter Edition FI
• 2009-2014 Yamaha Rhino 700 YXR700FSE 4x4 Special Edition FI
• 2009-2014 Yamaha Rhino 700 YXR700FSEP 4x4 Special Edition FI
• 2009-2014 Yamaha Rhino 700 YXR700FSP 4x4 Specialt Edition FI
• 2009-2014 Yamaha Rhino 700 YXR700FSP 4x4 Sport Edition FI
• 2009-2014 Yamaha Rhino 700 YXR700FSP2 4x4 Special Edition II FI

Note: Image is for reference only, actual product may vary slightly.
