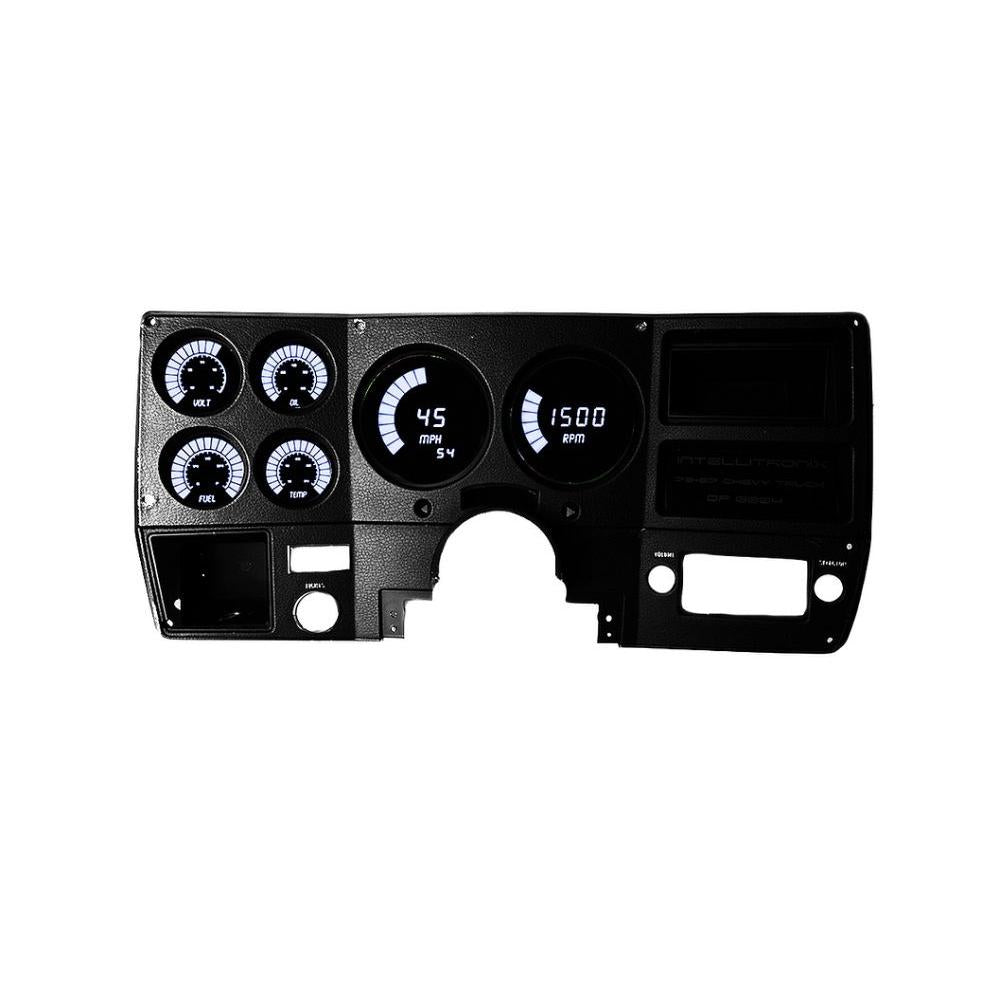

Intellitronix 1973-1987 Chevy Truck LED Digital Bargragh BG6004 - White

Dress up your 1973-87 Chevy Truck with a state-of-the-art 73-87 Chevy Truck LED Digital Bargragh Direct Fit Panel Replacement from Intellitronix. Fully loaded with direct fit printed circuit boards, custom fit smoked plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control.

Featuring a custom-designed LED bargraph, the unit is microprocessor controlled with peak RPM memory recall, and automatic night dimming, shift light, and RPM activated switch that can handle 3 amps. In-dash mounting hardware is included. The panel only 3 3/8” diameter and 1 ½” deep and includes a 0-9999 readout in 100, 10, or 1 RPM increments such as 9900, 9990, 9999. It works on 1-2-4-6-8-10-12-cylinder engines. A night driving tip, red is best!

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Temperature display reads 160° to 240°F range. Sender S8013 included; Please add a note if you need a 3/8in bushing because we send the more common 1/2in bushing--otherwise, you will have to supply the bushing on your own.

Oil Pressure displays 0-80 PSI range plus Oil pressure sender included.

Voltmeter reads 12-16 volt range and no sending unit is required.

Fuel Level displays with Empty to Full in 1/4 increments and works with most existing fuel level sending units set at industry standard 0-90. Please let us know if your sender works off a different Ohms range.

The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.

Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.

BEZEL NOT INCLUDED

FEATURES:

AVAILABLE COLORS: White, Red, Blue and Green

SPEEDOMETER READING: Order your speedometer in either MPH or KPH

ACCESSORIES: All required sending and sensor units are included.

Brand: Intellitronix
Part Number: BG6004W

Note: Image is for reference only, actual product may vary slightly.
