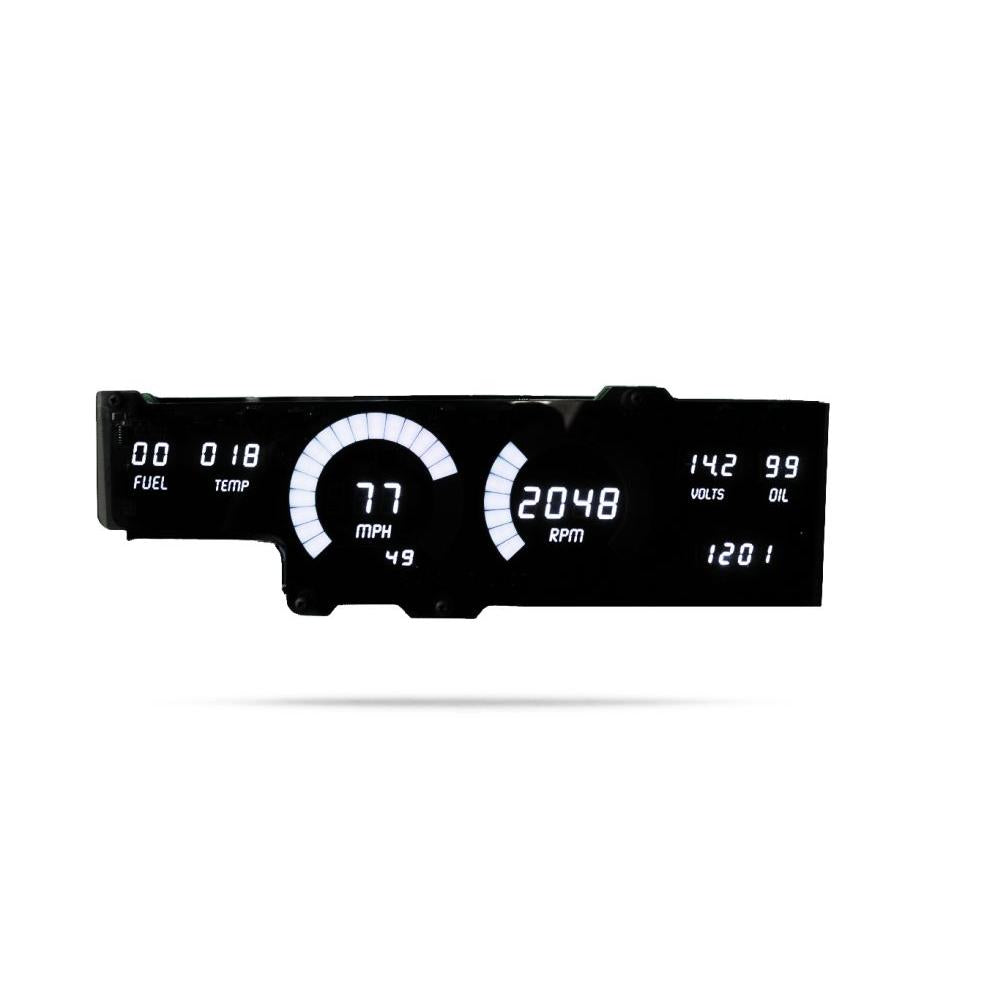

Intellitronix 1978-1988 Oldsmobile Cutlass LED Digital DP1407 - White

Your 1978-88 Oldsmobile Cutlass will look elegant with the 78-88 Oldsmobile Cutlass LED Digital Dash Panel Replacement from Intellitronix. The dash comes complete direct fit printed circuit boards, custom fit smoked plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.

Note: If you are ordering for the 442 OR have the rally pack style gauges, you will require a different hardware kit and lens. Please make a note at the time of checkout.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall and all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer features a custom-designed LED bar graph, the unit is microprocessor controlled with peak rpm memory recall, and automatic night dimming, Shift light, and RPM Activated Switch can handle 3 amps. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines.

Water Temperature displays 50-250°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to get the correct bushing on your own.

Oil Pressure displays 0-100 PSI range. Oil pressure sender included.

Voltmeter displays 7.0-25.5 volt range and no sending unit is required.

Fuel level is programable to 4 different ohms ranges: 73-10 ohm, 0-90 ohm, 10-180 ohm, 240-33 ohm.

Clock displays standard hours and minutes.

The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.

Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.

Please see pictures to verify you have the correct dash this unit will fit to

BEZEL NOT INCLUDED

FEATURES:

AVAILABLE COLORS: White, Red, Blue and Green

SPEEDOMETER READING: Order your speedometer in either MPH or KPH

ACCESSORIES: All required sending and sensor units are included

Brand: Intellitronix
Part Number: DP1407W

Note: Image is for reference only, actual product may vary slightly.
