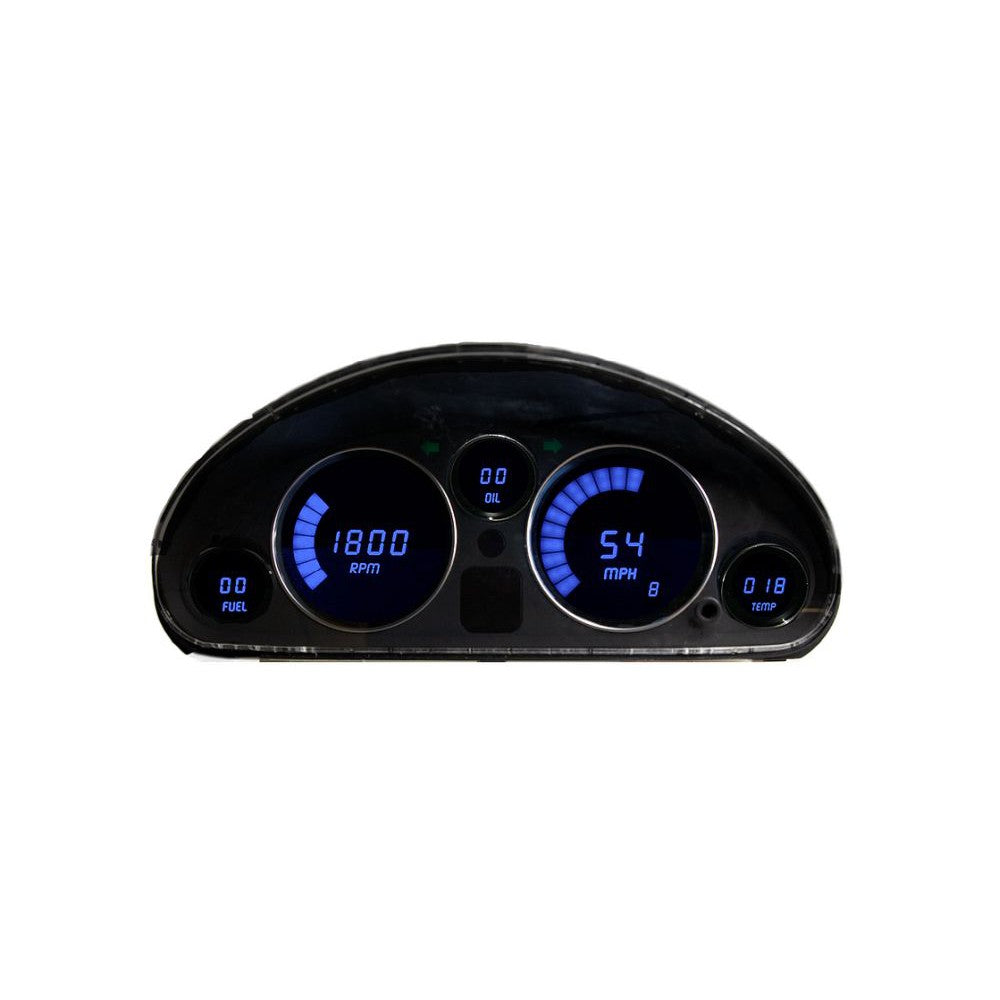

Intellitronix 1990-1998 Mazda Miata LED Digital DP1301 - Blue

Cruise in style in your 90-98 Mazda Miata with Intellitronix 1990-1998 Mazda Miata LED Digital Replacement Gauge Panel. Included in this complete set is a direct fit printed circuit board, custom fit smoked plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration; regardless of tire size, gear ratio or transmission, 0-60 time with 1⁄4 mile elapse time plus high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013, universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Tachometer displays 0-9900 RPM in 100 RPM increments.

Water Temperature displays 100-300°F range with the S8013 sender included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to purchase the correct bushing on your own.

Oil Pressure reads 0-100 PSI range and the oil pressure sender is included.

Voltmeter displays 7.0-18.0 volts range and no sending unit is required.

Fuel Level reads 0-99% range in 1% increments.

Water Temperature reads 100-300°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Just add a note at check-out which bushing size you need; otherwise, you will have to purchase the correct bushing on your own.

The 1990-1998 Mazda Miata LED Digital LED Digital Replacement Gauge Panel features turn signals and high beam indicator.

BEZEL NOT INCLUDED

FEATURES:

AVAILABLE COLORS: White, Red, Blue and Green

SPEEDOMETER READING: Order your speedometer in either MPH or KPH

ACCESSORIES: All required sending and sensor units are included.

Brand: Intellitronix
Part Number: DP1301B

Note: Image is for reference only, actual product may vary slightly.
