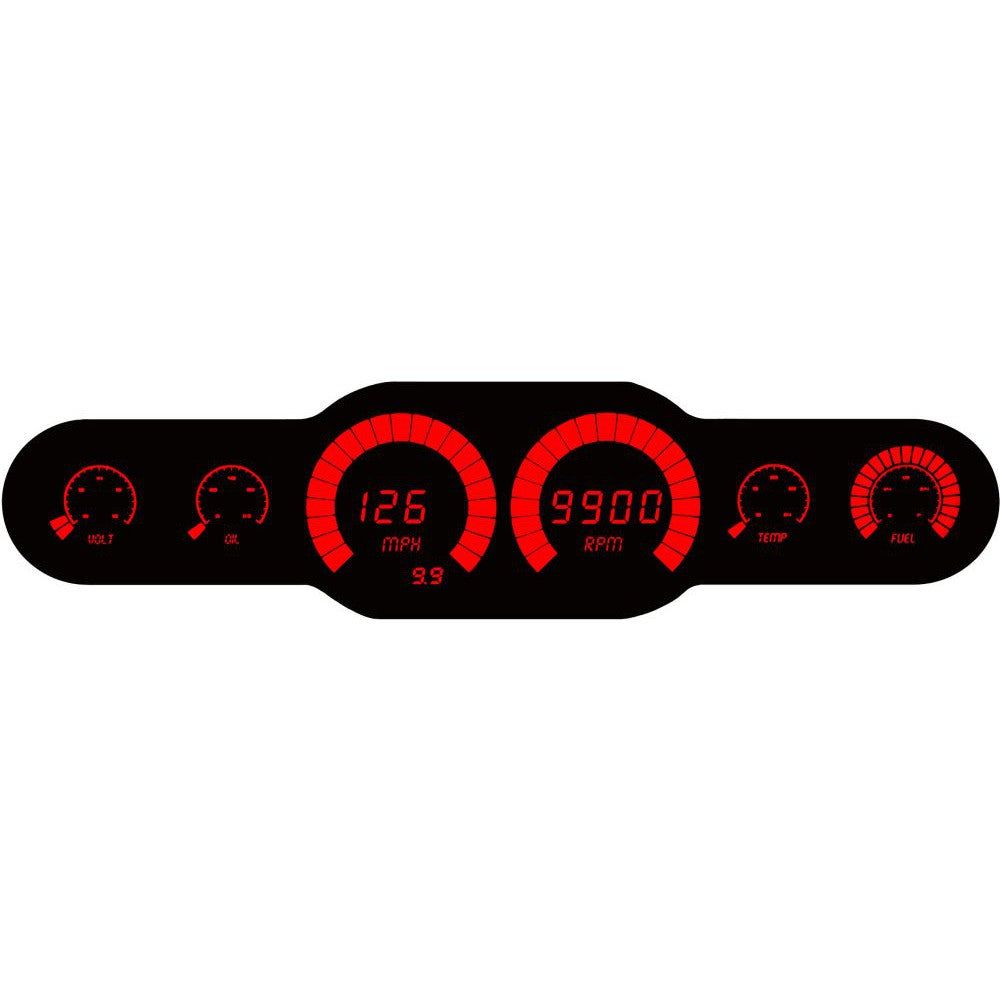

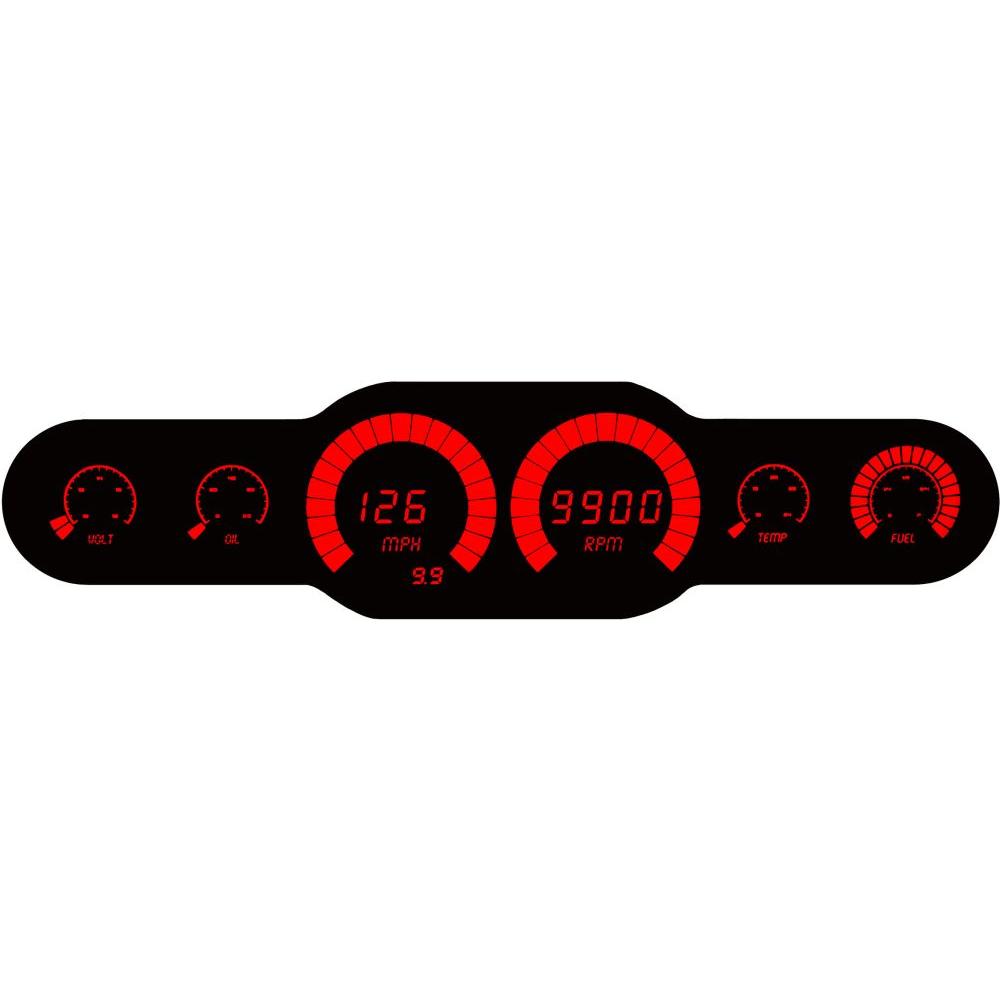

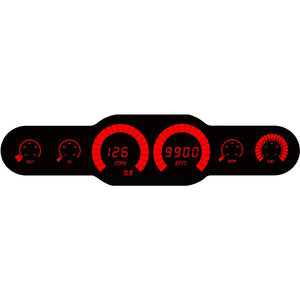

Intellitronix 6 Gauge Analog Bargraph Universal Panel BG10002 - Red

The site of your dash has never looked so, well, dashing! Introducing the newest line of crisp, analog gauges in the Intellitronix brand, the 6 Gauge Universal Analog Bar Graph Panel! Now you can upgrade the interior of your treasured hot rod to a bright new glow while still maintaining the forever classic appearance of analog readouts!! These beautiful new panels come in four LED colors: Red, Blue, Green, and White!! Guaranteed to turn heads and amp up the jealousy of your friends, keep that ride tearing up asphalt all with the style and grace you have come to expect from the Intellitronix line of products!! We also make these beauties in KPH and Celsius, just make sure to let us know when you order!!

This Analog Dash comes complete with custom fit smoked Plexiglas face plate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit (sender/sensor) for vehicles without electronic transmission or cruise control, and instructions for installation. The Analog Dash works with your factory fuel level sending unit and cruise control sender or electronic transmission output if so equipped. The unit dimensions are 16-7/16 x 4in high, and only 3/4in deep!

The Speedometer reads up to 255 MPH (KPH is also available--please just add a note when you order for that option) and features odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission) and 0-60 time, 1⁄4 mile ET, and high speed recall, all with the push of a button. The Tachometer reads 0-9,900 RPM in 100 RPM increments, has peak RPM recall and works on 4-6-8 cyclinder engines.

Temperature display reads 160° to 240°F range (Sender S8013 included; Please add a note if you need a 3/8in bushing because we send the more common 1/2in bushing--otherwise, you will have to supply the bushing on your own), the Oil Pressure display reads 0-80 PSI range (Oil pressure sender included), Voltmeter display with 12-16 volt range (no sending unit required), and Fuel Level display with Empty to Full in 1/4 increments (works with most existing fuel level sending unit (set at industry standard 0-90 ; please message if your sender works off a different Ohms range).

Brand: Intellitronix
Part Number: BG10002R

Note: Image is for reference only, actual product may vary slightly.
