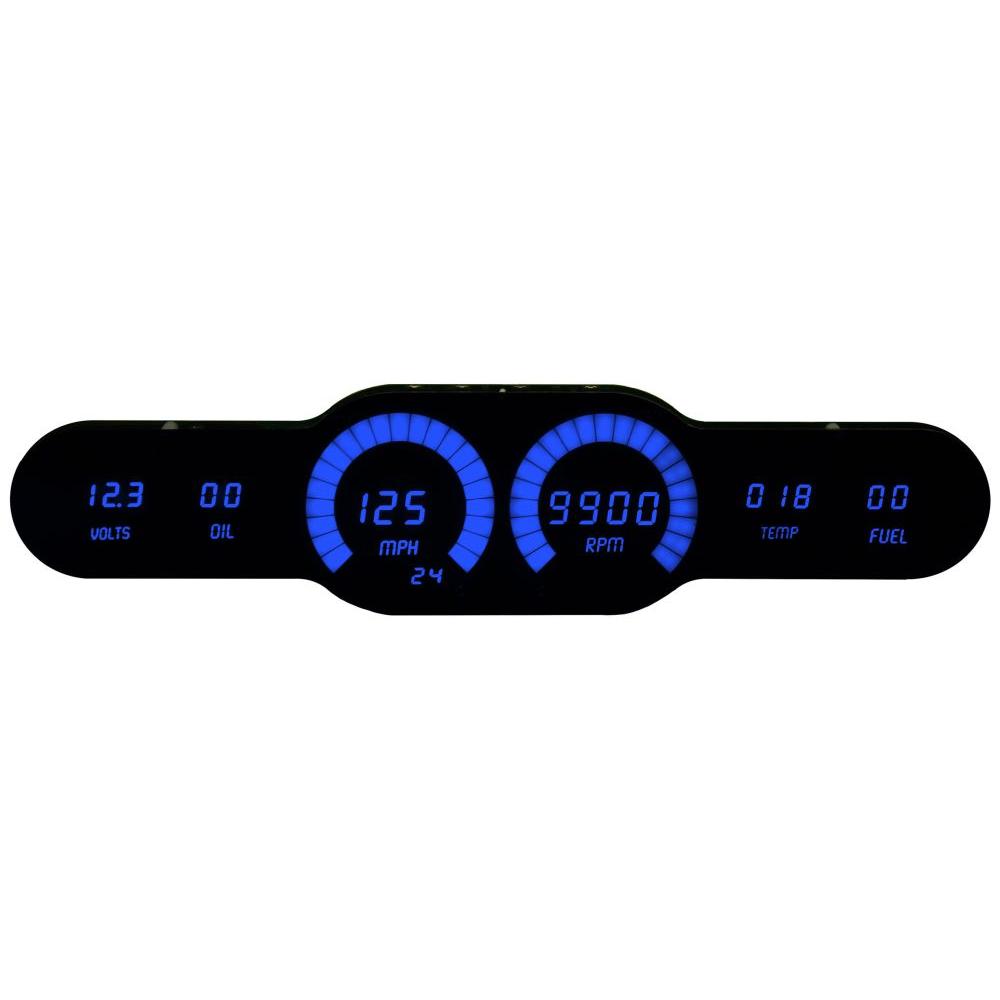

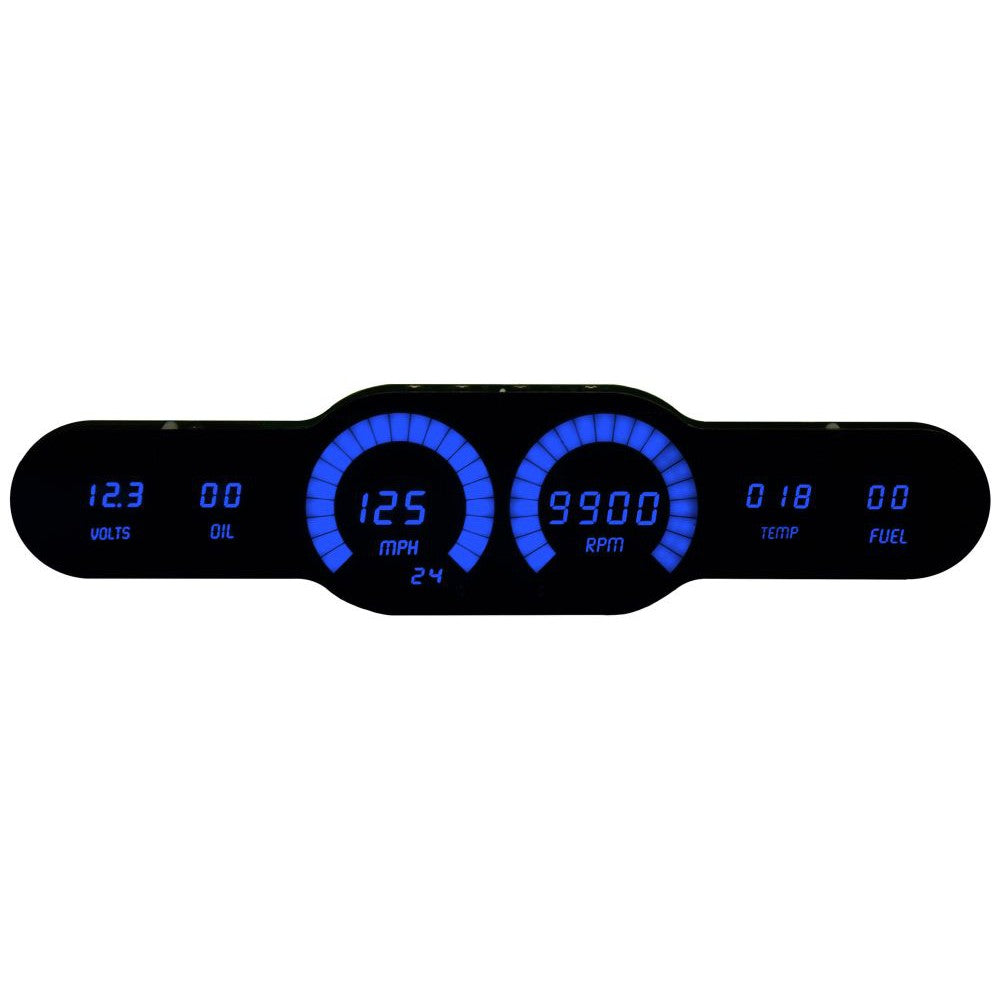

Intellitronix 6 Gauge Bar Sweep Digital Universal Panel DP10004 - Blue

The Intellitronix Universal LED Digital 6 Gauge Panel w/sweeps can easily be installed by anyone. The Intellitronix Universal LED Digital 6 Gauge Panel w/sweeps comes with: a printed circuit board, a ‘smoked’ plexiglass face plate, a universal temperature sending unit (S8013); a universal oil pressure sending unit (S8434); a universal speedometer sending unit (S9013), and (if required) a hardware kit.

Dimensions 16 ¾”L x 3/4 deep x 4”H

Product Specifications

Speedometer: Reads up to 255 mph, includes odometer, trip meter, one button calibration, 0-60 time, ¼ mile and high speed recall.

Tachometer: 0 – 9900 RPM in 100 RMP increments.

Water Temp Display: 18 – 255° F range.,

Oil Pressure Display: 0 – 99 PSI range.

Voltmeter Display: 7.0 – 18.5 volt range.

Fuel Level Display: 0 – 99% range in 1% increments. User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders.

Indicators: Left & Right turn signals, high beam & brake.

Brand: Intellitronix
Part Number: DP10004B

Note: Image is for reference only, actual product may vary slightly.
