Intellitronix Create-a-Dash Universal Bargraph Gauge Kit BG10003 - White

CREATE-A-DASH BARGRAPH was created for those of you who are looking to build a custom digital dash and love the look and accuracy of Intellitronix gauges!

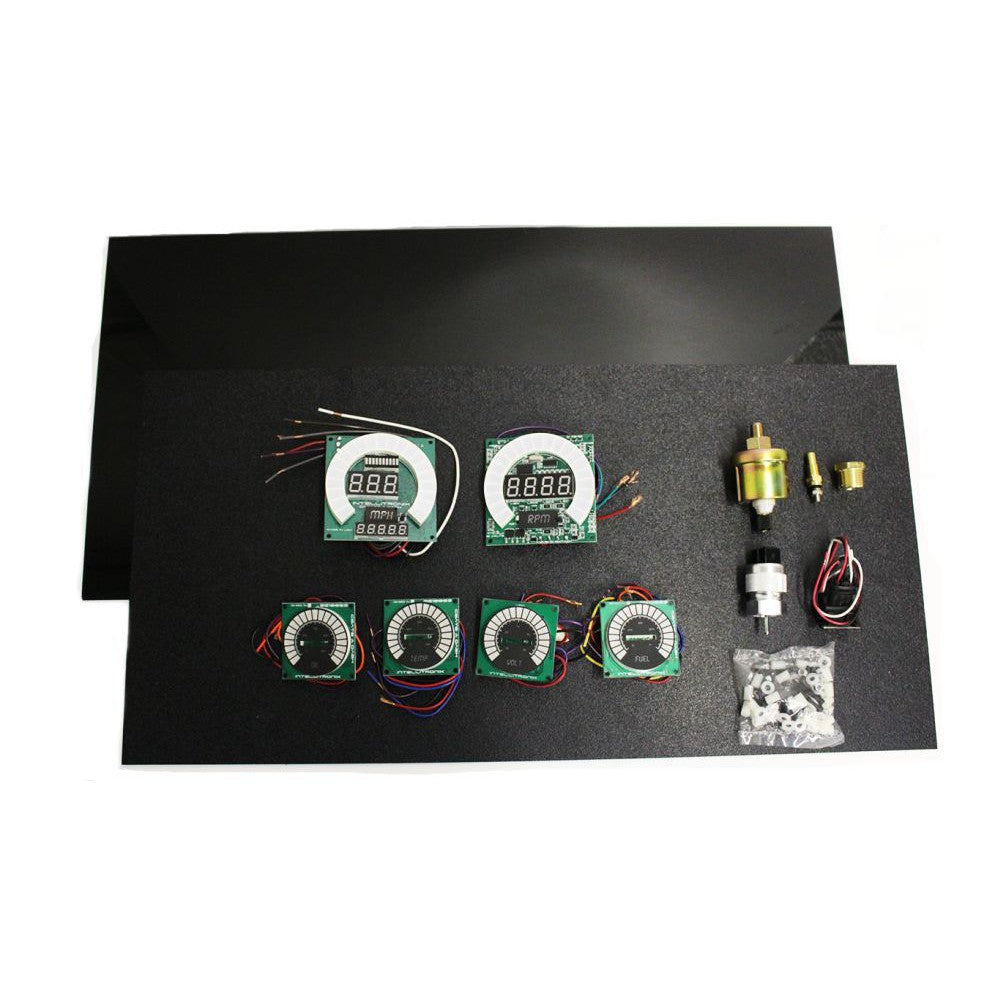

A generous size backing board (12in x 24in) and smoke plexiglass piece are included! Just cut to size to fit your existing factory or aftermarket bezel. Here’s how it works, each kit comes with an ABS plastic back panel to mount gauges on, a set of 4 gauges

(2in x 2in) (oil,volt,temp and fuel), speedometer and tachometer. Kit also includes tinted Plexiglas sheet, mounting hardware and sending units. You can cut , mount and arrange gauges to match your factory layout on just about any vehicle. As with all our gauges you will get additional features such as Recall, 0-60 and ¼ mile ET, high speed recall and more.

Temperature display reads 160° to 240°F range (Sender S8013 included; Please add a note if you need a 3/8in bushing because we send the more common 1/2in bushing--otherwise, you will have to supply the bushing on your own), the Oil Pressure display reads 0-80 PSI range (Oil pressure sender included), Voltmeter display with 12-16 volt range (no sending unit required), and Fuel Level display with Empty to Full in 1/4 increments (works with most existing fuel level sending unit (set at industry standard 0-90 ; please message if your sender works off a different Ohms range).

Brand: Intellitronix
Part Number: BG10003W

Note: Image is for reference only, actual product may vary slightly.
