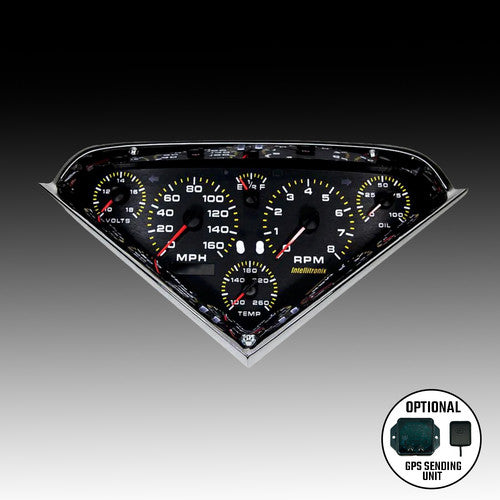

Intellitronix LED Analog Gauge Cluster Set With Black Faceplate For 1955-1959 Chevrolet Truck With Speedometer Sending Unit

You can now have a 1955-59 Chevy Truck Direct Fit Analog Gauge Panel for your 55-59 Chevy Truck. Our black polycarbonate subsurface with brush stroke finish makes it an unforgettable show stopping dash.

Features

Speedometer, Tachometer for 8-6-4-cylinder, Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge and Clock.

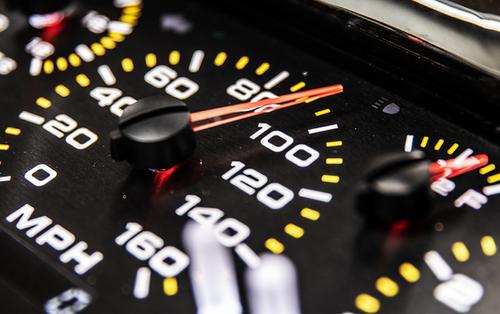

• Speedometer: Reads up to 160 MPH and includes one button calibration, regardless of tire size, gear ratio, or transmission, for 8-6-4-cylinder engines. Features include odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button.
• Voltmeter: With high and low voltage reads from 10.0 to 18.0 volts range.
• Oil Pressure Gauge: Reads from 0-100 psi.
• Tachometer: Reads from 0 to 8000 in 100 RPM increments.
• Water Temperature Gauge: Reads from 100-260°F.
• Fuel Gauge: User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reading from 0-99%.
• Clock: Displays with standard hours and minutes.

Turn signal indicators and high beam indicator are included. It comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.

Works with any mechanical or electronic transmissions, or you can purchase separately a GPS speedometer sender from Intellitronix.

Note: When installed the gauge cluster may disable the cruise control system.

Easy Install, Lifetime Warranty, Great Price & Gauges for your very special classic vehicle.

ACCESSORIES: All required sending and sensor units are included.

Includes Connectors For:

• Water temp
• Oil pressure
• Tachometer
• Voltmeter
• Fuel level
• Speedometer
• Dash lights
• Turn indicators
• High beam indicator

NOTE: BEZEL NOT INCLUDED

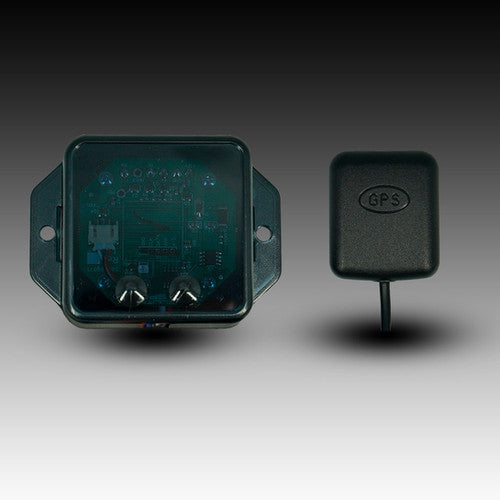

Includes Speedometer Sending Unit - S9020

The Intellitronix GPS Speedometer Sending Unit is designed to provide an accurate speed signal using satellite tracking, bypassing the transmission or computer signal. It is compatible with all Intellitronix speedometers and supports multiple pulse-per-mile options for flexible installation.

Features

• Control module dimensions: 2.5" x 2.5"
• Antenna dimensions: 1" x 1"
• 12V analog square wave output
• Pulse options: 4000, 8000, or 16000 pulses per mile
• Programmable option with Intellitronix speedometers
• Includes 4 1/2 ft antenna
• Bypasses transmission/computer and picks up speed signal via satellite signal
• Compatible with ALL Intellitronix speedometers

Brand: Intellitronix
Part Number: AP6000-S9020

Fitment:

• 1955-1959 Chevrolet Truck

Note: Image is for reference only, actual product may vary slightly.
