Intellitronix LED Create-a-Dash Universal Gauge Kit With Black Faceplate

Intellitronix LED Create-a-Dash Universal Gauge Kit With Black Faceplate

Upgrade any vehicle, vintage or new, with BARGRAPH CREATE-A-DASH. Designed for enthusiasts seeking apersonalized touch paired with Intellitronix gauge accuracy.

Features

• Speedometer / Tachometer Combo: Signature bar graph design.

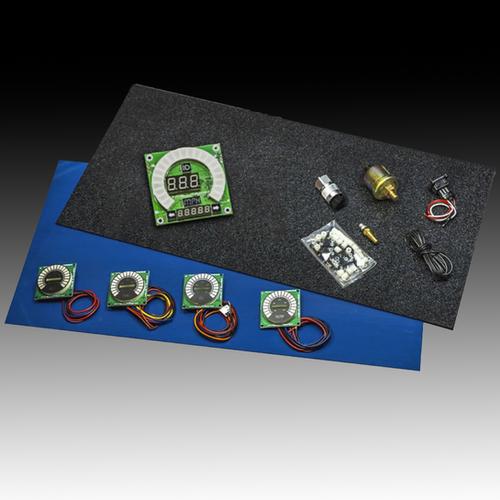

• Customizable Layout: Separate circuit boards for flexible positioning. Kit includes a trimmable 12" x 24" ABS back panel and a trimmable 12" x 24" Plexiglas sheet.
• Comprehensive Kit: Includes mounting hardware, sending units, and advanced features such as recall, 0–60 time, ¼ mile elapsed time, and high-speed recall.
• Universal Fit: Suitable for any vehicle—vintage or modern. Cut, mount, and arrange effortlessly.
• Warranty: All gauges are backed by a Lifetime Warranty.
• GPS Option: Integrated GPS functionality available for precise speed tracking and location-based accuracy.

Gauge Specifications

• Speedometer / Tachometer combo gauges measure 3-7/16" in diameter.
• Fuel level, voltmeter, temperature, and oil pressure gauges measure 1-11/16" x 1-11/16" and include mounting hardware.

Performance Details

• Speedometer / Tachometer Combo: Speedometer: Reads up to 255 MPH and includes odometer, trip meter, one-button calibration regardless of tire size, gear ratio, or transmission, plus 0–60 time, ¼ mile elapsed time, and high-speed recall. Compatible with PCM, electric VSS transmissions, or the included electronic sender S9013.
• Tachometer: Reads 0–9900 RPM in 100 RPM increments.
• Temperature: 160°–240°F range (sender included).
• Oil Pressure: 0–80 PSI range (sender S8868 included).
• Voltmeter: 12–16 volt range (no sender required).
• Fuel Level: Empty to Full display in ¼ increments with selectable ohm ranges of 0–90, 73–10, 10–180, and 240–33.

The panel also features turn signal indicators and a high beam indicator.

Easy Install, Lifetime Warranty, Great Price, & gauges for your very special classic vehicle.

Available Colors

White, Red, Blue, Green, and Teal

Speedometer Reading

Order your speedometer in either MPH or KPH.

Accessories

All required sending and sensor units are included.

Enhance Your Ride with CREATE-A-DASH

Where customization meets precision.

Upgrade Options

• GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes.
• Universal Gauge Harness: 8' harness with color-coded wires, quick-connects for easy removal, and all required hardware. Includes connectors for water temperature, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator.
• LS Swap Kit: Perfect for GM engines. Includes 12mm & 16mm bushings and a 10K 1/2-watt resistor.

Note: Image is for reference only, actual product may vary slightly.
