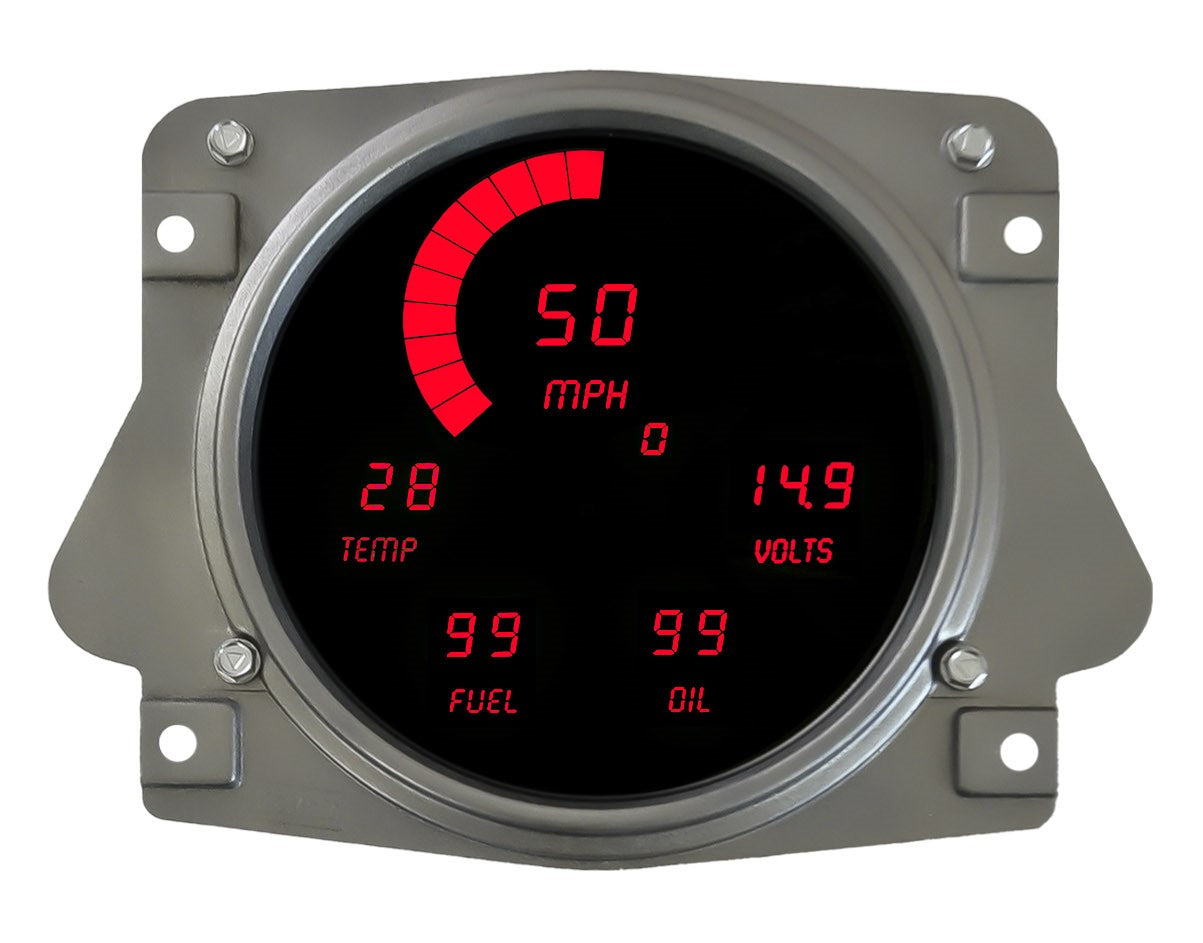

Intellitronix Red OEM Replacement Digital LED Gauge Panel For Ford Bronco 1966-1977
Intellitronix Red OEM Replacement Digital LED Gauge Panel For Ford Bronco 1966-1977
NOTES:

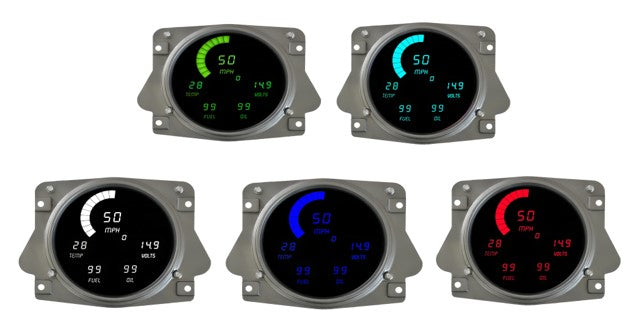

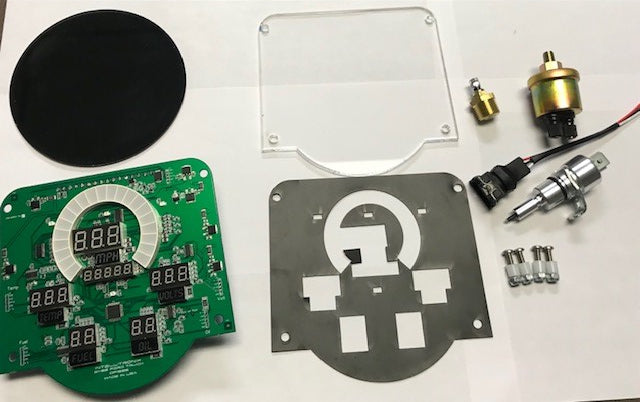

Intellitronix LED digital direct-fit gauge kits make it easy to go from analog to digital. These replacement gauge panel kits come complete with a circuit board, tinted Plexiglas lens plates, mounting hardware, and all necessary sending units and instructions. Intellitronix LED digital kits work with your factory fuel level and cruise control sender or electronic transmission output if so equipped. Plus, you get the cool stuff of modern gauges like 0-60 time, quarter-mile ETs, and high-speed recall, all with the push of a button. The LEDs are available in five colors--red, royal blue, green, teal and arctic white. Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1?4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use our S9024 universal speedometer sending unit included in the kit, if your vehicle is not equipped with a functional cruise control. Water Temperature reads 50 - 250?F range and includes sending unit. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead, upon request. Make reach out to us regarding your preferred bushing size. All Intellitronix products include a lifetime warranty.
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently. Please reach out before purchasing if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit.
Description:
- Tachometer 0-9,900 rpm in 100 rpm increments.
- Water temperature display with 100-300 degree F range, sender included.
- Oil pressure display with 0-100 psi range.
- Voltmeter display with 8-18 V range (no sending unit required.)
- Fuel level display with 0-99 percent range in 1 percent increments (works with existing fuel level sending unit.) and is programable to 4 different ohms ranges: 73-10 ohm, 16-158 ohm, 22-145 ohm and 240-33 ohm.
- Uses the original factory turn signals and high-beam indicator, unless otherwise noted.
- Can be used with existing electronic cruise control senders, or with included universal speedometer sending unit, if your vehicle is not equipped with functional cruise control.
- Lifetime guarantee.
- Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
Brand: Intellitronix
Part Number: DP1020R
Fitment:
- 1966-1977 Ford Bronco
Note: Image is for reference only, actual product may vary slightly.
