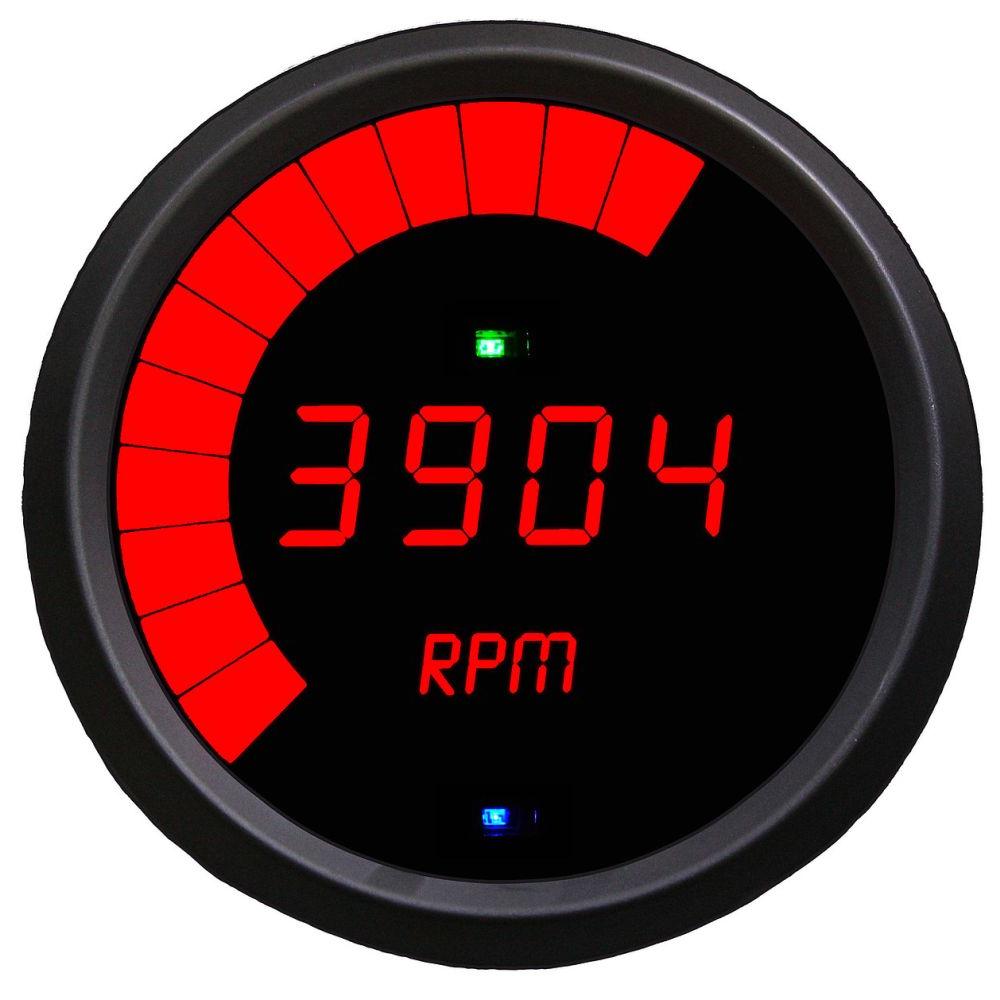

Intellitronix Tachometer Multi-Function LED Digital Programmable in Black Bezel - Red

Absolutely stunning precision. Completely programmable. Looks that kill. The Master Tachometer by Intellitronix.

Featuring a custom-designed LED bar graph, the unit is microprocessor controlled with peak rpm memory recall, and automatic night dimming, Shift light, and RPM activated Switch (Can handle 3 amps) . It also includes in-dash mounting hardware and installation instructions. It is only 3 3/8in diameter & 1 1/2 inches deep. It has a 0-9,999 readout in 100, 10 , or 1 RPM increments (ex. 9,900 , 9,990 , 9,999). It works on 1-2-4-6-8-10-12 cylinder engines. All Intellitronix products include a lifetime warranty and are proudly made in the USA! Also, red is best for night driving.

Features include:

Fully Programmable Tachometer for 1-2-4-6-8-10-12 Cylinder Engines! (Default is 8 Cyl)

RPM is User select-able increments 9,900 ; 9,990 ; 9,999 (Default is 2 active digits)

LED Bar Graph with programmable red line (full bars is set at default of 6500 RPM)

Programmable shift light

Programmable Output light with activation wire (Activated Switch ; can handle 3 amps)

High RPM memory recall

Automatic Night Dimming (50%)

If your vehicle has a magneto system, connect the tach signal wire to the negative side of the coil. Do not connect the tach terminal to the positive (+ or high voltage) side of the ignition coil. Many tachometers, shift lights or RPM-activated switches will not read directly from a Magneto, so your installation may need a Magneto Signal Converter to function properly.

Brand: Intellitronix
Part Number: M9003R

Note: Image is for reference only, actual product may vary slightly.
