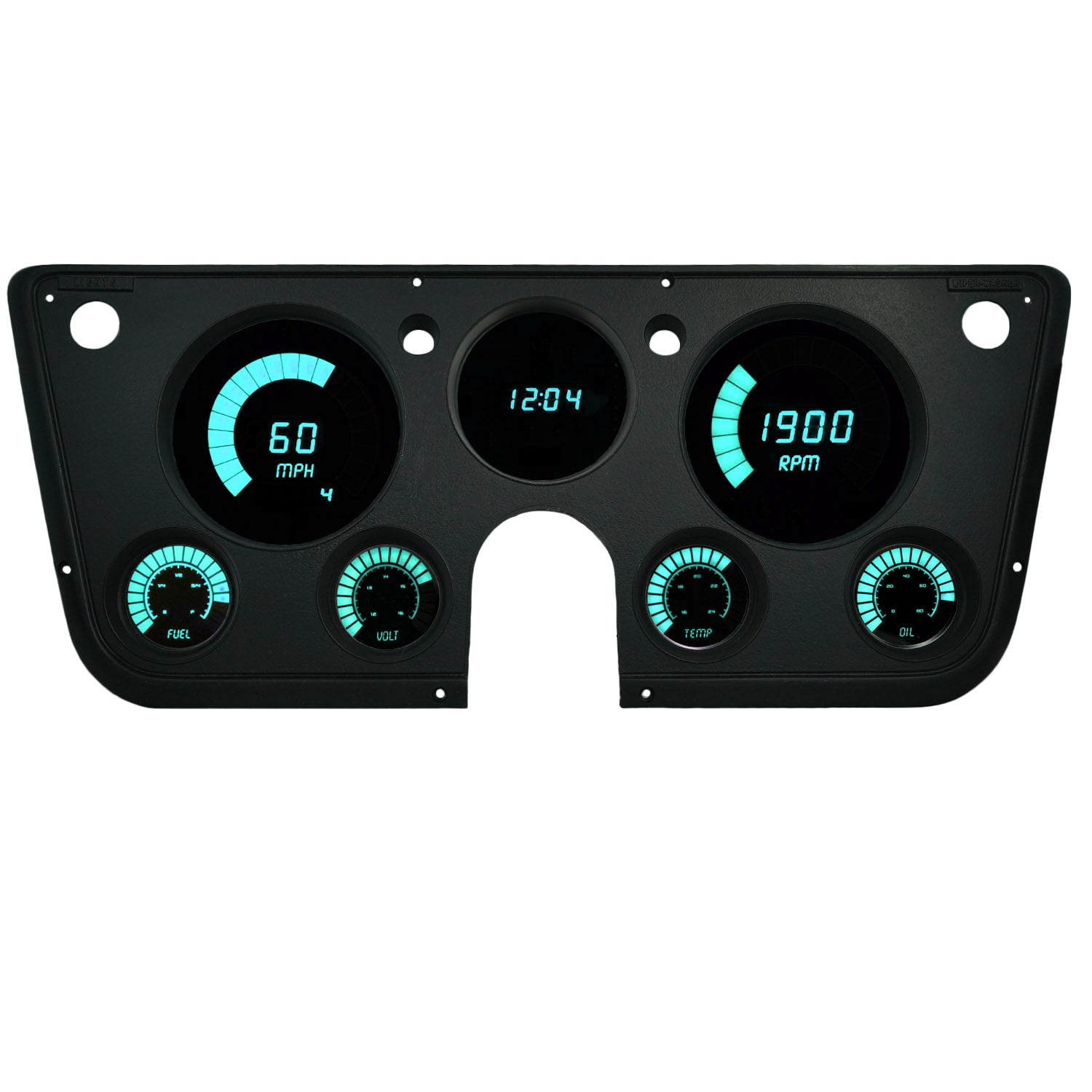

Intellitronix Teal OEM Replacement LED Bar Graph Gauge Panel For Chevrolet Trucks 1967-1972
Intellitronix Teal OEM Replacement LED Bar Graph Gauge Panel For Chevrolet Trucks 1967-1972
NOTES:

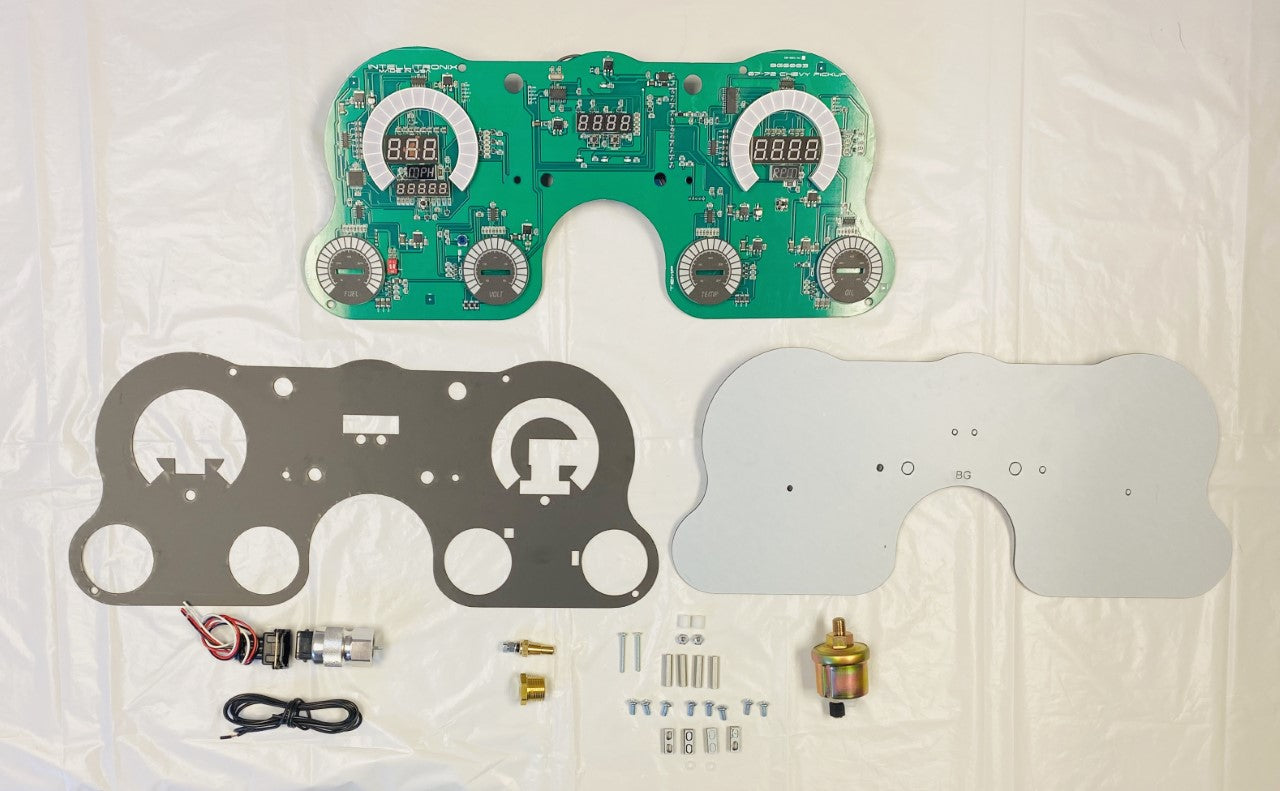

Intellitronix LED digital direct-fit gauge kits make it easy to go from analog to digital. These replacement gauge panel kits come complete with a circuit board, tinted Plexiglas lens plates, mounting hardware, and all necessary sending units and instructions. Intellitronix LED digital kits work with your factory fuel level and cruise control sender or electronic transmission output if so equipped. Plus, you get the cool stuff of modern gauges like 0-60 time, quarter-mile ETs, and high-speed recall, all with the push of a button. The LEDs are available in five colors--red, royal blue, green, teal and arctic white. All Intellitronix products include a lifetime warranty. Speedometer reads up to 255 mph, plus odometer, trip meter, and one-button calibration--regardless of tire size, gear ratio, or transmission
Dress up your 1967-72 Chevy Truck with a state-of-the-art 67-72 Chevy Truck LED Digital Bargragh Direct Fit Panel Replacement from Intellitronix. Fully loaded with direct fit printed circuit boards, custom fit smoked plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control. Featuring a custom-designed LED bargraph, the unit is microprocessor controlled with peak RPM memory recall, and automatic night dimming, shift light, and RPM activated switch that can handle 3 amps. In-dash mounting hardware is included. The panel only 3 3/8? diameter and 1 ?? deep and includes a 0-9999 readout in 100, 10, or 1 RPM increments such as 9900, 9990, 9999. It works on 1-2-4-6-8-10-12-cylinder engines. A night driving tip, red is best!
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1?4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control. Temperature display reads 160? to 240?F range. Sender S8013 included; Please reach out to us before making your purchase if you need a 3/8" bushing because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own.
Description:
- Oil Pressure displays 0-80 PSI range plus Oil pressure sender included.
- Voltmeter reads 12-16 volt range and no sending unit is required.
- Fuel Level displays with Empty to Full in 1/4 increments and works with most existing fuel level sending units set at industry standard 0-90. Please let us know if your sender works off a different Ohms range.
- The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
- Bezel not included.
- Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.
- All required sending and sensor units are included.
Brand: Intellitronix
Part Number: BG6003T
Fitment:
- 1967-1972 Chevrolet Blazer
- 1967-1972 Chevrolet C10
- 1967-1972 Chevrolet C10 Suburban
- 1967-1972 Chevrolet C20
- 1967-1972 Chevrolet C20 Suburban
- 1967-1972 Chevrolet C30
- 1967-1972 Chevrolet K10
- 1967-1972 Chevrolet K10 Suburban
- 1967-1972 Chevrolet K20
- 1967-1972 Chevrolet K20 Suburban
- 1967-1972 Chevrolet K30
- 1967-1972 Chevrolet K5 Blazer
- 1967-1972 Chevrolet LUV
Note: Image is for reference only, actual product may vary slightly.
