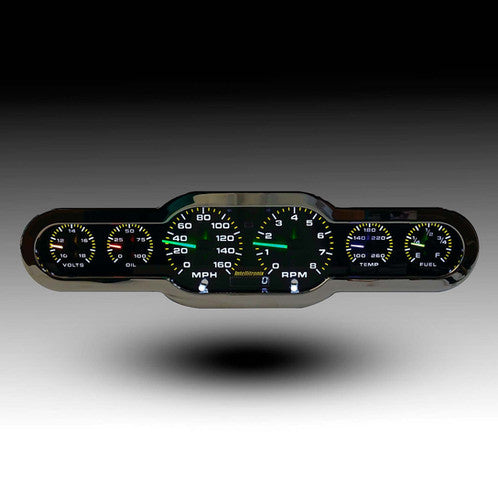

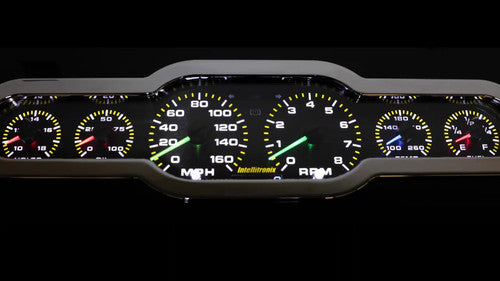

Intellitronix Universal LED Analog Gauge Cluster Set With Black Faceplate

Impress your friends with this clean, sleek, classic design in Intellitronix new 6-Gauge Universal Analog Color Changing Gauge Needles Panel. The black polycarbonate sub surface with brush stroke finish makes it an unforgettable show stopping dash. This is truly a work of art. You can now have our 6-Gauge Universal Analog Color Changing Gauge Needles Panel to light up your dash with colors ranging from green, blue, yellow, orange and red.

Speedometer, Tachometer for 8-6-4-cylinder, Fuel Level, Voltmeter, Oil Pressure, Water Temperature gauges and Clock.

Turn signal indicators and high beam indicator included. It also comes with factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.

Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.

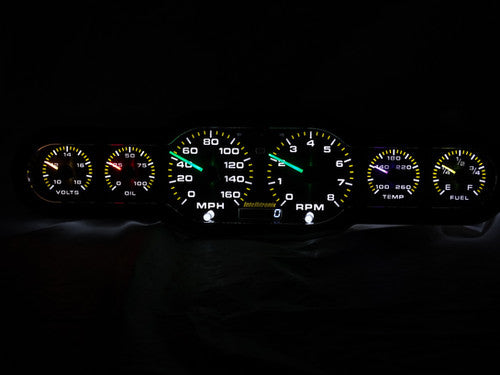

Automatic nighttime dimming.

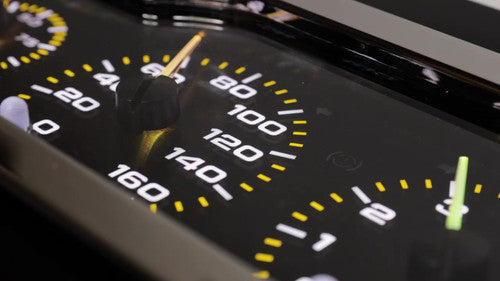

Speedometer: Reads up to 160 MPH and includes one button calibration, regardless of tire size, gear ratio, or transmission. Features include odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time (ET), all with the push of a button. The speedometer comes with a sending unit for GM/Universal. If you have a Ford, you will need to ask for a Ford sending unit.

Speedometer Needle Colors: Starts at Green, then as speed increases the needle changes to Yellow, moves through Orange, and goes to Red at maximum speed.

Tachometer: Reads from 0 to 8,000 in 100 RPM increments.

Tachometer Needle Colors: Starts at Green, then as RPMs increase the needle changes to Yellow, moves through Orange, and goes to Red at maximum RPM.

Voltmeter: With high and low voltage reads from 10.0 to 18.0 volt range.

Voltmeter Needle Colors: Starts at Red, then as voltage increases the needle changes to Orange, moves through Green, and returns to Red at maximum voltage.

Oil Pressure Gauge: Reads from 0-100 psi.

Oil Pressure Needle Colors: Lowest pressure is Red, then as pressure increases the needle changes to Yellow and moves to Green at maximum pressure.

Water Temperature Gauge: Reads from 100-260 degrees Fahrenheit.

Water Temperature Needle Colors: Lowest temperature is Blue, then as temperature increases the needle changes to Green and moves to Red at maximum temperature.

Fuel Gauge: User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reading from 0-99%.

Fuel Gauge Needle Colors: Full tank is Green, then as fuel level decreases the needle changes to Yellow, moves through Orange, and goes to Red at empty.

DIMENSIONS:17" length x 4 3/4" height x 2 3/4" width.

ACCESSORIES: All required sending and sensor units are included.

The speedometer sending unit is included. If you need a Ford sending unit, please add a note at checkout and a Ford sending unit will be included; otherwise, the GM/Mopar/VW unit will be supplied. The water temperature sender is included; please add a note at checkout if you need a 3/8" bushing, as the standard 1/2" bushing is supplied. The oil pressure sender is also included.

Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your vehicle to the next level.

Brand: Intellitronix
Part Number: AP30002

Note: Image is for reference only, actual product may vary slightly.
