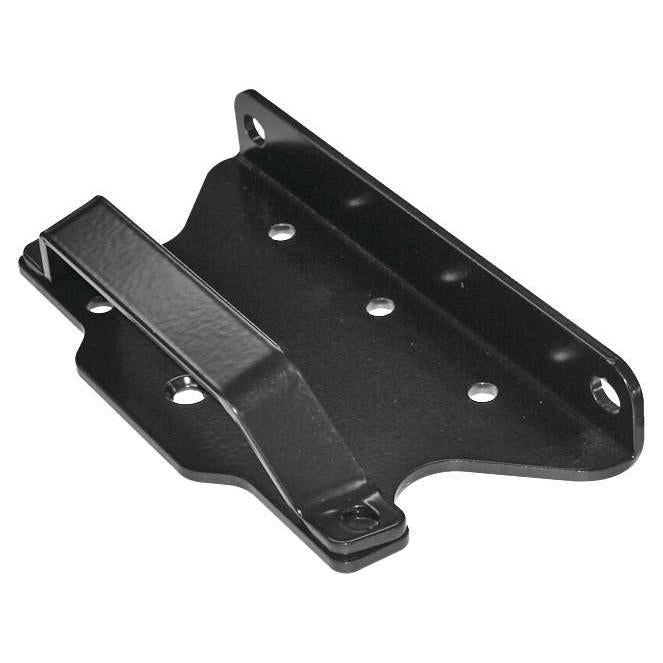

KFI Winch Mount - 100525

KFI

  • $46.27
    Unit price per
  • Save $1.68


Free Ground Shipping Easy Returns Secure Payments Great Shopping Experience

Description

KFI Winch Mount - 100525


Features

  • 100% MADE IN USA.
  • Constructed of 3/16" steel.
  • Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • All mounting hardware included.
  • Very easy to install.
  • Complete installation instructions included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.


Vehicle A2000 A2500 A3000
SE25 SE35
U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
Can-Am Outlander 330 2004-2005 100525 --- --- 100525 ---
Can-Am Outlander 400 2003-2015 100525 --- --- 100525 ---
Can-Am Outlander 400 MAX 2004-2015 100525 --- --- 100525 ---
Can-Am Outlander 500 2007-2012 100525 --- --- 100525 ---
Can-Am Outlander 500 MAX 2007-2012 100525 --- --- 100525 ---
Can-Am Outlander 650 2006-2012 100525 --- --- 100525 ---
Can-Am Outlander 650 MAX 2006-2012 100525 --- --- 100525 ---
Can-Am Outlander 800 2006-2009 100525 --- --- 100525 ---
Can-Am Outlander 800 MAX 2006-2012 100525 --- --- 100525 ---
Can-Am Outlander 800 XMR 2012 100525 --- --- 100525 ---
Can-Am Outlander 800R 2010-2011 100525 --- --- 100525 ---
Can-Am Outlander 800R MAX 2010-2011 100525 --- --- 100525 ---

Please see below for full description and detailed fitment


Brand New "KFI" Winch Mount for the following Bombardier ATV's:

  • 2002 Outlander 400's
  • 2003-2005 Outlander 330's and 400's
  • 2006 Outlander 400's, 650's and 800's
  • 2007-2012 Outlander 400's, 500's, 650's and 800's
  • 2013 Outlander 400
  • 2013 Outlander 400 MAX

Designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
  • KFI: AS-50 (Requires purchase of ATV-MR)
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • MASTER LOCK :1500lbs #2955AT
    • Requiresroller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
  • BADLAND: 2-Hole Winches
  • BADLAND: Standard Winches
  • CHAMPION : 2-Hole Winches
  • CHAMPION : Standard Winches
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
    • 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • Traveller:1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 2-Hole (3.10" with Rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 3/16" steel.
  • Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • All mounting hardware included.
  • Very easy to install.
  • Complete installation instructions included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.



Vehicle A2000 A2500 A3000
SE25 SE35
U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
Can-Am Outlander 330 2004-2005 100525 --- --- 100525 ---
Can-Am Outlander 400 2003-2015 100525 --- --- 100525 ---
Can-Am Outlander 400 MAX 2004-2015 100525 --- --- 100525 ---
Can-Am Outlander 500 2007-2012 100525 --- --- 100525 ---
Can-Am Outlander 500 MAX 2007-2012 100525 --- --- 100525 ---
Can-Am Outlander 650 2006-2012 100525 --- --- 100525 ---
Can-Am Outlander 650 MAX 2006-2012 100525 --- --- 100525 ---
Can-Am Outlander 800 2006-2009 100525 --- --- 100525 ---
Can-Am Outlander 800 MAX 2006-2012 100525 --- --- 100525 ---
Can-Am Outlander 800 XMR 2012 100525 --- --- 100525 ---
Can-Am Outlander 800R 2010-2011 100525 --- --- 100525 ---
Can-Am Outlander 800R MAX 2010-2011 100525 --- --- 100525 ---

Brand: KFI
Part Number: 100525
