KFI Winch Mount - 100560

KFI

  • $56.99
    Unit price per

Ask a Question
Free Ground Shipping Orders $50+
Easy Returns Secure Payments Great Shopping Experience

Description

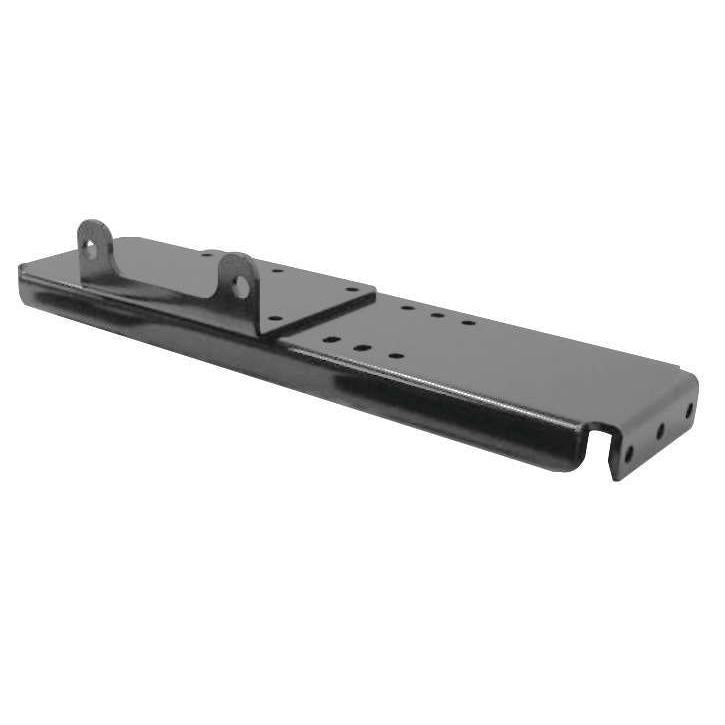

KFI Winch Mount - 100560


Brand New "KFI" Winch Mount for the below listed Polaris Ranger's

Polaris FullSize UTV's Years
TM Ranger Full-Size 4x4 '04-06
425 Ranger Full-Size 2x4 '01-04
500 Ranger Full-Size 2x4 '01-08
500 Ranger Full-Size 4x4 '03-08
500 Ranger Full-Size 6x6 '02-05
700 Ranger Full-Size 4x4 '05-08
700 Ranger Full-Size 4x4 Crew '08-09
700 Ranger Full-Size 6x6 '06-09

Mount designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45W-R2
  • KFI: AS-50 / AS-50w
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
    • Requires Standard fairlead bracket #101715
  • WARN:VRX 45 / VRX 45-S
    • Requires Wide fairlead bracket #100695
  • WARN:AXON 35 / AXON 35-S / AXON 45RC
    • Requires Standard fairlead bracket#101715
  • WARN:AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
    • Requires Wide fairlead bracket #100695.
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:RT40 / XT40
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • WARN:Vantage 4000lbs / Provantage 4500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND: 2-Hole Winches
  • BADLAND: Standard Winches
  • BADLAND: WIDE Winches
  • CHAMPION : 2-Hole Winches
  • CHAMPION : Standard Winches
  • CHAMPION : WIDE Winches
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR:  X3000 / X4000
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up.
    • All with 3.00" x 6.600" bolt pattern mount-up.
  • Traveller:1078311
  • Traveller:1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 3/16" Grade 50 steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Very easy to install.
  • Complete installation instructions included.
  • Mounts winch tucked back behind front bumper.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.



We also have the replacement front grills available for an additional cost.  There are (3) different style grills depending on what winch you are installing and we have a few color options for the grills to better match your finish on your Ranger.  These replacement grills will allow for the clearance of your winches roller fairlead and clutch access.  See the below replacement grill part numbers:

#100562 :    Replacement grill works with the following winches:

  • KFI: S2000
  • SUPERWINCH : LT2000
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY :Work Power 1500
  • BADLAND :2000lb #68146 / 2500lb #61297 / 2500lb #61840 / 2500lb #61258
  • CHAMPION :10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 / 12003
  • KEEPER CORP. TRAKKER :KT2000 Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
  • Traveller:1078088 Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF / 1078302
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)

#100563 :    Replacement grill works with the following winches:

  • KFI: ST17 / A2500 / A3000 / U4500 / SE25 / SE35 / SE45
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / LT2500 / LT3000 / LT4000ATV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5
  • KOLPIN :2500 / 3500 / 4500
  • CYCLE COUNTRY :Work Power 2500 / Powermax 2500 and 3500
  • BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
  • CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR:  X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

#100564 :    Replacement grill works with the following winches:

  • KFI: U4500w
  • WARN:RT40 / XT40
  • WARN:Vantage 4000lbs / Provantage 4500lbs
  • SUPERWINCH : Terra 45 / LT4000UTV
  • BADLAND :  5000lb #68144 / 5000lb #61384
  • CHAMPION :14501 / 14551 / 14552 / 14008 / 40252 (4500lbs)
  • KEEPER CORP. TRAKKER :KT4000 / KT4000C
  • VENOM: 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 6.600" Bolt Pattern mount-up
  • Traveller:1078311
  • Possibly many others with the below standard mounting patterns, call to confirm
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern)
