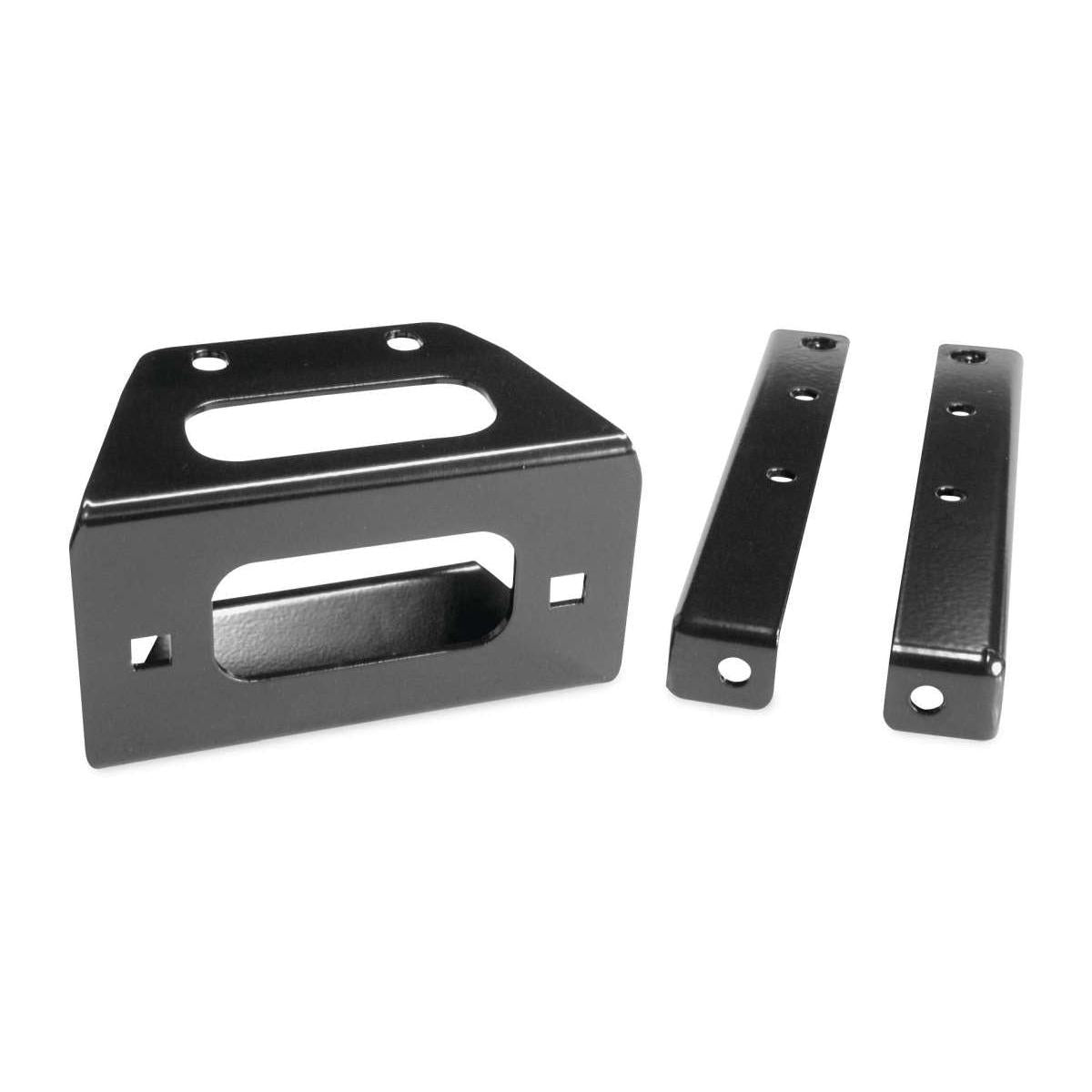

KFI Winch Mount - 100660
5 Star Service
Easy Returns
Secure Payments
Free ground shipping orders $50+
Description
KFI Winch Mount - 100660
Features
- 100% MADE IN USA.
- Constructed of 10 GA steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
- Works with the Polaris Glacier Plow System.
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Polaris 570 RZR 2012-2019 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 570 RZR S 2017 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR 2008-2014 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR 4 2010-2011 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR S 2009-2014 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR 4 2012-2014 | 100660** | 100660** | --- | 100660** | --- |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Please see below for full description and detailed fitment
Brand New "KFI" Winch Mount for the following Polaris RZR's:
| RZR Model | Year |
| 570 RZR | '12-19 |
| 570 RZR S | 2017 |
| 800 RZR | '08-14 |
| 800 RZR 4 | '10-11 |
| 800 RZR 4** | '12-14 |
| 800 RZR S | '09-14 |
** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery on RZR.
Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2
- KFI: AS-50
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2500 / PE3500
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
-
BADLAND: 2-Hole Winches
- All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
- BADLAND: Standard Winches
- CHAMPION : Standard Winches
-
CHAMPION : 2-Hole Winches
- All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
-
2-HOLE MOUNTED WINCHES WITH A 3.10" BOLT PATTERN:
- All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- QUADBOSS: RP25 / RP35
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Requires the additional purchase of the Converter Mount #100480
Specifications:
- 100% MADE IN USA.
- Constructed of 10 GA steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
- Works with the Polaris Glacier Plow System.
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Polaris 570 RZR 2012-2019 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 570 RZR S 2017 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR 2008-2014 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR 4 2010-2011 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR S 2009-2014 | 100660 | 100660 | --- | 100660 | --- |
| Polaris 800 RZR 4 2012-2014 | 100660** | 100660** | --- | 100660** | --- |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Brand: KFI
Part Number: 100660
