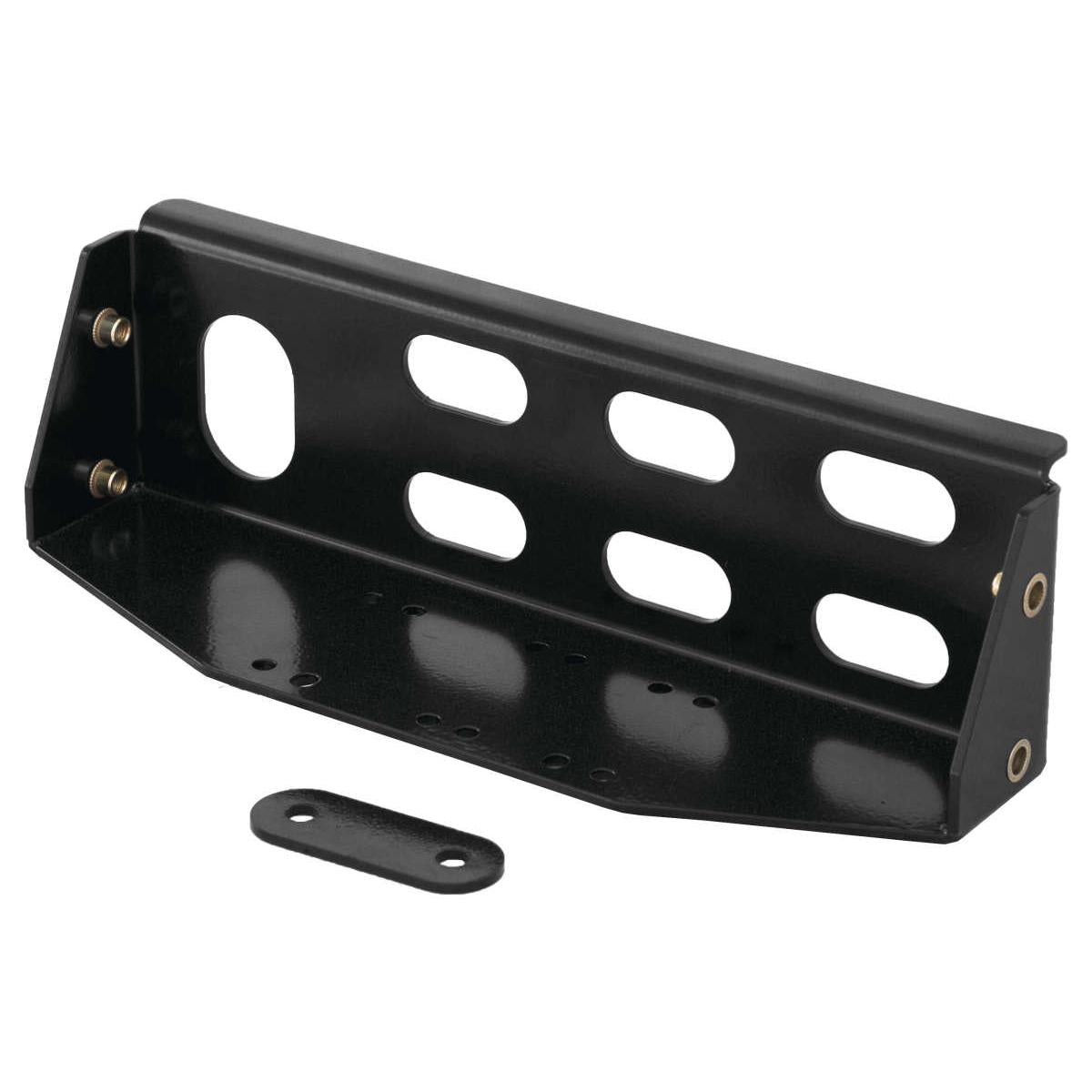

KFI Winch Mount - 100860


Features

  • 100% MADE IN USA.
  • Constructed of 3/16” steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.


Vehicle A2000 A2500 A3000
SE25 SE35		 U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
John Deere Gator HPX 615E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator HPX 815E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 625i ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825i ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825M ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 855D ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 855E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 855M ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825i S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**
John Deere Gator XUV 825M S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**
John Deere Gator XUV 855D S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**
John Deere Gator XUV 855M S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**

1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK


Please see below for full description and detailed fitment


Brand New "KFI" Winch Mount for the following John Deere UTV's:

  • Gator HPX 615E
  • Gator HPX 815E
  • Gator XUV 625i
  • Gator XUV 825E
  • Gator XUV 825i
  • Gator XUV 825i S4
  • Gator XUV 825M
  • Gator XUV 825M S4
  • Gator XUV 855D
  • Gator XUV 855D S4
  • Gator XUV 855E
  • Gator XUV 855M
  • Gator XUV 855M S4

NOTE: This mount will not work with the installation of the John Deere POWERtach Plow System.

Designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AS-50 / AS-50w
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
    • Requires Standard fairlead bracket #101715.
  • WARN:VRX 45 / VRX 45-S
    • Requires Wide fairlead bracket #100695.
  • WARN:AXON 35 / AXON 35-S / AXON 45RC
    • Requires Standard fairlead bracket #101715.
  • WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
    • Requires Wide fairlead bracket #100695.
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:RT40 / XT40
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • WARN:Vantage 4000lbs / Provantage 4500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000/UTV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND 2-Hole Winches :68146 / 61258 / 61297 / 61840
  • BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
  • BADLAND WIDE Winches : 61384 / 68144 / 61605
  • CHAMPION 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
  • CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
  • CHAMPIONWIDE Winches : 14008 / 14501 / 14551 / 14552 / 40252
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up.
    • All with 3.00" x 6.600" bolt pattern mount-up.
  • Traveller:1078311
  • Traveller:1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 3/16” steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.



Vehicle A2000 A2500 A3000
SE25 SE35		 U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
John Deere Gator HPX 615E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator HPX 815E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 625i ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825i ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825M ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 855D ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 855E ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 855M ALL YEARS 100860 100860 100860 100860 100860
John Deere Gator XUV 825i S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**
John Deere Gator XUV 825M S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**
John Deere Gator XUV 855D S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**
John Deere Gator XUV 855M S4 ALL YEARS 100860** 100860** 100860** 100860** 100860**

1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK

Brand: KFI
Part Number: 100860
