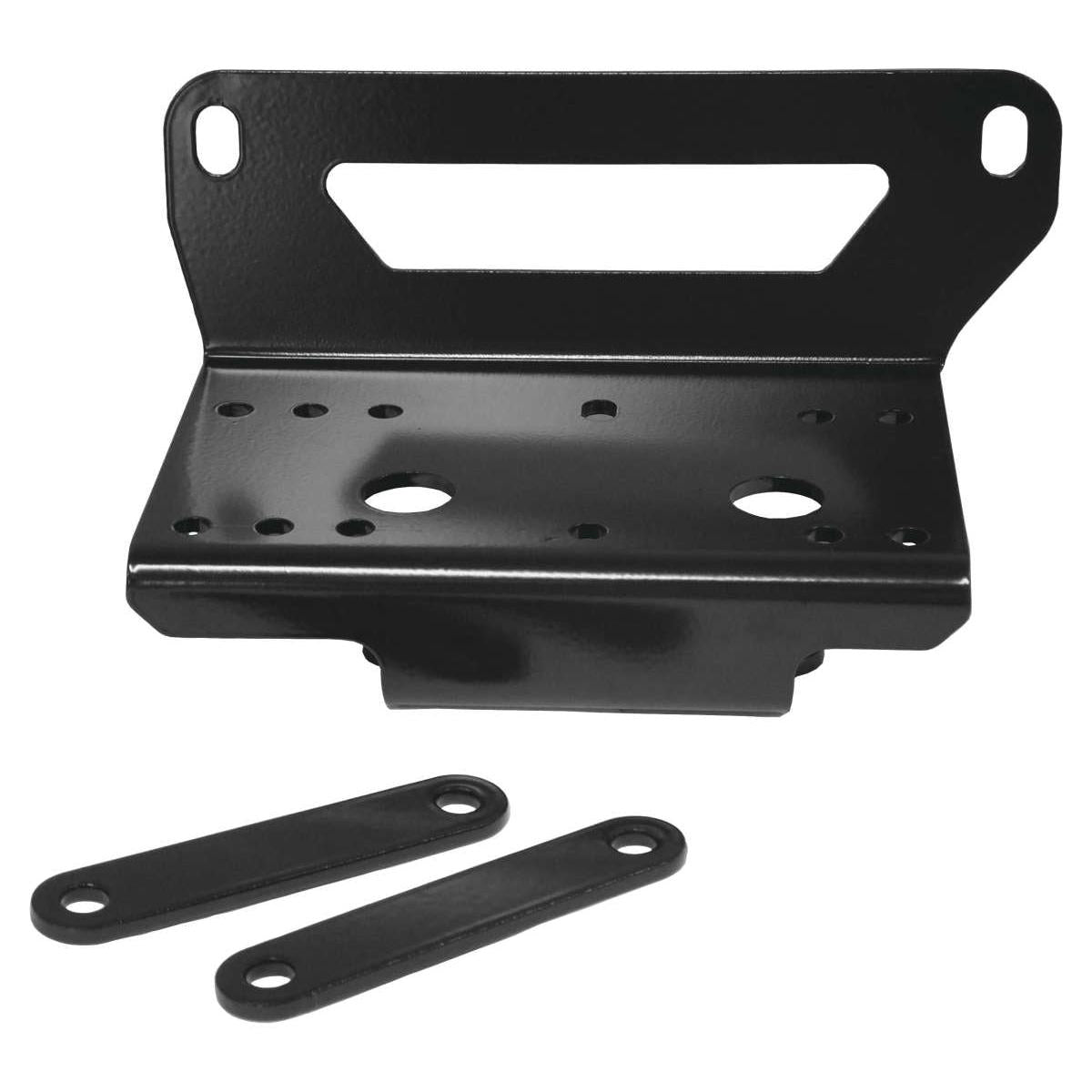

KFI Winch Mount - 100940

KFI

  • $46.27
    Unit price per
  • Save $1.68


Free Ground Shipping Easy Returns Secure Payments Great Shopping Experience

Description

KFI Winch Mount - 100940


Features

  • 100% MADE IN USA.
  • Constructed of 3/16" Grade 50 steel.
  • Plastic trimming may be required for certain models and winches.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Very easy to install.
  • Complete installation instructions included.
  • Mounts winch tucked back behind front bumper.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.


Vehicle A2000 A2500 A3000
SE25 SE35
U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
John Deere Gator RSX 860E ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator RSX 850i ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator RSX 860i ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator RSX 860M ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 550 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 550 S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560 S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560E ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560E S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590E ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590E S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590i ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590i S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590M ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590M S4 ALL YEARS 100940 100940 100940 100940 100940

Please see below for full description and detailed fitment


Brand New "KFI" Winch Mount for the following John Deere UTV's:

  • Gator RSX 860E
  • Gator RSX 850i
  • Gator RSX 860i
  • Gator RSX 860M
  • Gator XUV 550
  • Gator XUV 550 S4
  • Gator XUV 560
  • Gator XUV 560 S4
  • Gator XUV 590i
  • Gator XUV 590i S4
  • Gator XUV 590M
  • Gator XUV 590M S4
  • Gator XUV 560E
  • Gator XUV 560E S4
  • Gator XUV 590E
  • Gator XUV 590E S4

Mount designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AS-50 / AS-50w
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
    • Requires Standard fairlead bracket #101715.
  • WARN:VRX 45 / VRX 45-S
    • Requires Wide fairlead bracket #100695.
  • WARN:AXON 35 / AXON 35-S / AXON 45RC
    • Requires Standard fairlead bracket #101715.
  • WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
    • Requires Wide fairlead bracket #100695.
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:RT40 / XT40
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • WARN:Vantage 4000lbs / Provantage 4500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
  • BADLAND 2-Hole Winches :68146 / 61258 / 61297 / 61840
  • BADLAND Standard Winches : 68145 / 61604 / 61257 / 61383
  • BADLAND WIDE Winches : 61384 / 68144 / 61605
  • CHAMPION 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
  • CHAMPION Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
  • CHAMPIONWIDE Winches : 14008 / 14501 / 14551 / 14552 / 40252
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up
    • All with 3.00" x 6.600" bolt pattern mount-up
  • Traveller: 1078311
  • Traveller:1078088 / 1078302
    • Require roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 3/16" Grade 50 steel.
  • Plastic trimming may be required for certain models and winches.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Very easy to install.
  • Complete installation instructions included.
  • Mounts winch tucked back behind front bumper.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.


Vehicle A2000 A2500 A3000
SE25 SE35
U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
John Deere Gator RSX 860E ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator RSX 850i ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator RSX 860i ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator RSX 860M ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 550 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 550 S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560 S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560E ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 560E S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590E ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590E S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590i ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590i S4 ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590M ALL YEARS 100940 100940 100940 100940 100940
John Deere Gator XUV 590M S4 ALL YEARS 100940 100940 100940 100940 100940

Brand: KFI
Part Number: 100940
