KFI Winch Mount - 101305

KFI

  • $57.60
    Unit price per

Ask a Question
Free Ground Shipping Orders $50+
Easy Returns Secure Payments Great Shopping Experience

Description

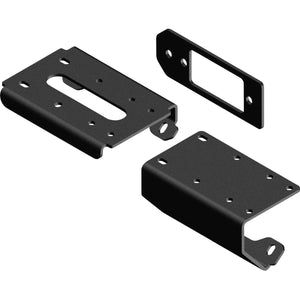

KFI Winch Mount - 101305


Features

  • 100% MADE IN USA.
  • Constructed of 3/16”steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.


Vehicle A2000 A2500 A3000
SE25 SE35
U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
Can-Am Defender (all Models) 2016-2019 101305 101305 101305 101305 101305

Please see below for full description and detailed fitment


Brand New "KFI" Winch Mount for the following Can-Am UTV's:

Can-Am Years
Defender H5 (500) '17-19
Defender H8 (800) '16-19
Defender MAX H8 (800) 2018
Defender H10 (1000) '16-19
Defender H10 XMR (1000) 2018
Defender H10 XTP (1000) 2018
Defender MAX H10 (1000) 2018

Designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
  • KFI: AS-50 / AS-50w
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
  • WARN:AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:RT40 / XT40
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • WARN:Vantage 4000lbs / Provantage 4500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
  • MASTER LOCK :1500lbs #2955AT
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed ATV-RF.
  • CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
  • BADLAND: 2-Hole Winches
  • BADLAND: Standard Winches
  • BADLAND: WIDE Winches
  • CHAMPION : 2-Hole Winches
  • CHAMPION : Standard Winches
  • CHAMPION : WIDE Winches
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR: X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up.
    • All with 3.00" x 6.600" bolt pattern mount-up.
  • Traveller: 1078311
  • Traveller:1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needd #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35

Specifications:

  • 100% MADE IN USA.
  • Constructed of 3/16”steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.


Vehicle A2000 A2500 A3000
SE25 SE35
U45-R2 SE45-R2 U4500w SE45w-R2 (WIDE) AS-50 (ATV's will require ATV-MR) AS-50w
Can-Am Defender (all Models) 2016-2019 101305 101305 101305 101305 101305

Brand: KFI
Part Number: 101305
