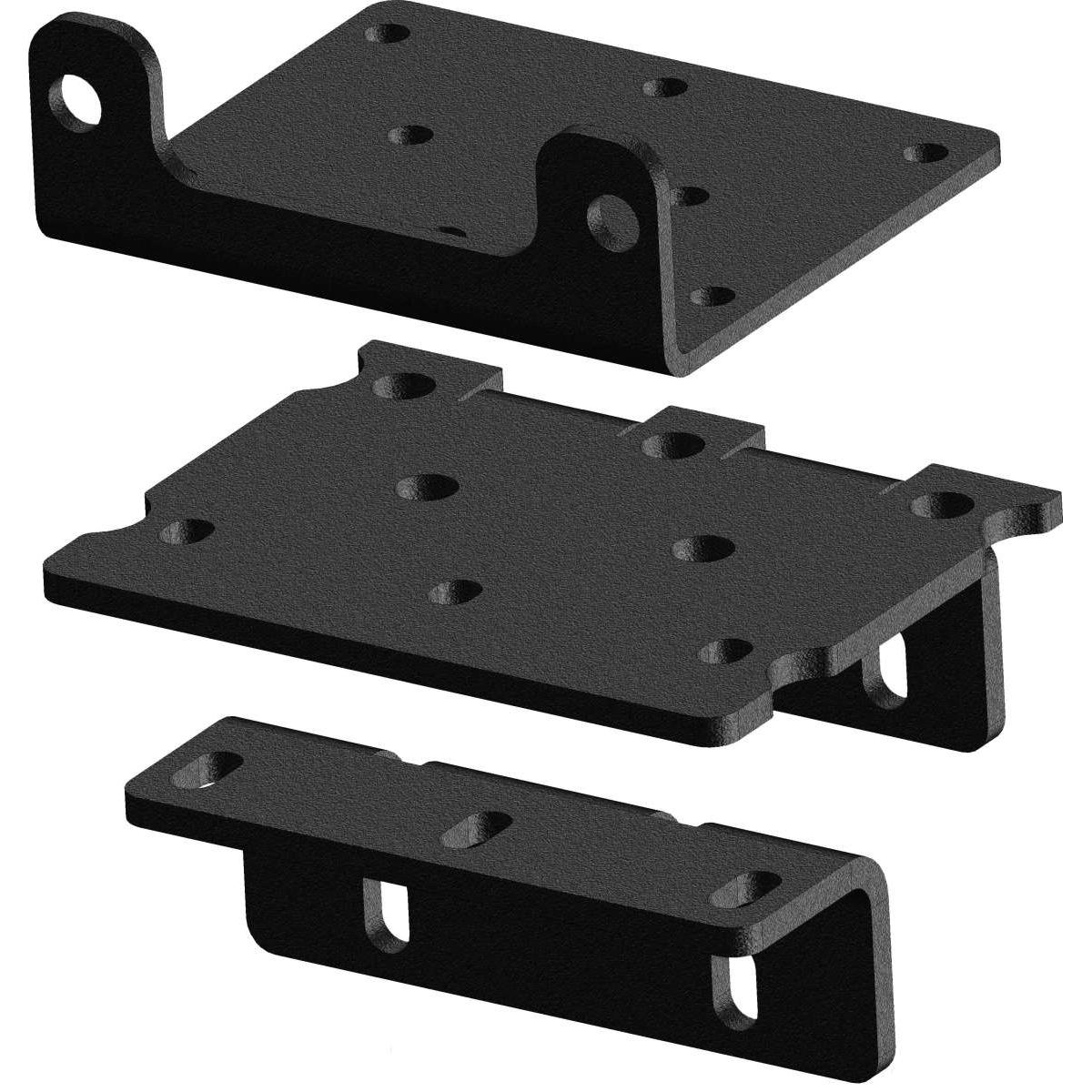

Brand New "KFI Fairlead Bracket" for Arctic Cat UTV's:

Designed to work with both standard 4.875" and WIDE 6.000" or 6.600" bolt pattern fairleads

• If your wide winch does NOT come with the standard Fairlead Bracket you will need to purchase in addition Part Number #100695

Mount Designed to work with the following Winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AS-50 / AS-50w
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • Requires Wide fairlead bracket #101715
• WARN:VRX 45 / VRX 45-S
  • Requires Wide fairlead bracket #100695.
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:RT40 / XT40
• WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN: Vantage 4000lbs / Provantage 4500lbs (Will use WIDE fairlead that comes with your winch.)
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• CHAMPION : WIDE Winches
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER :KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT :XRC 2.0
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" Bolt Pattern mount-up
  • All with 3.00" x 6.600" Bolt Pattern mount-up
• Traveller:1078311
• Traveller:1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  - 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  - 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  - 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35

Specifications:

• 100% MADE IN USA
• Constructed of 1/4" steel
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• Satisfaction guaranteed
• Roller fairlead and winch not included.
