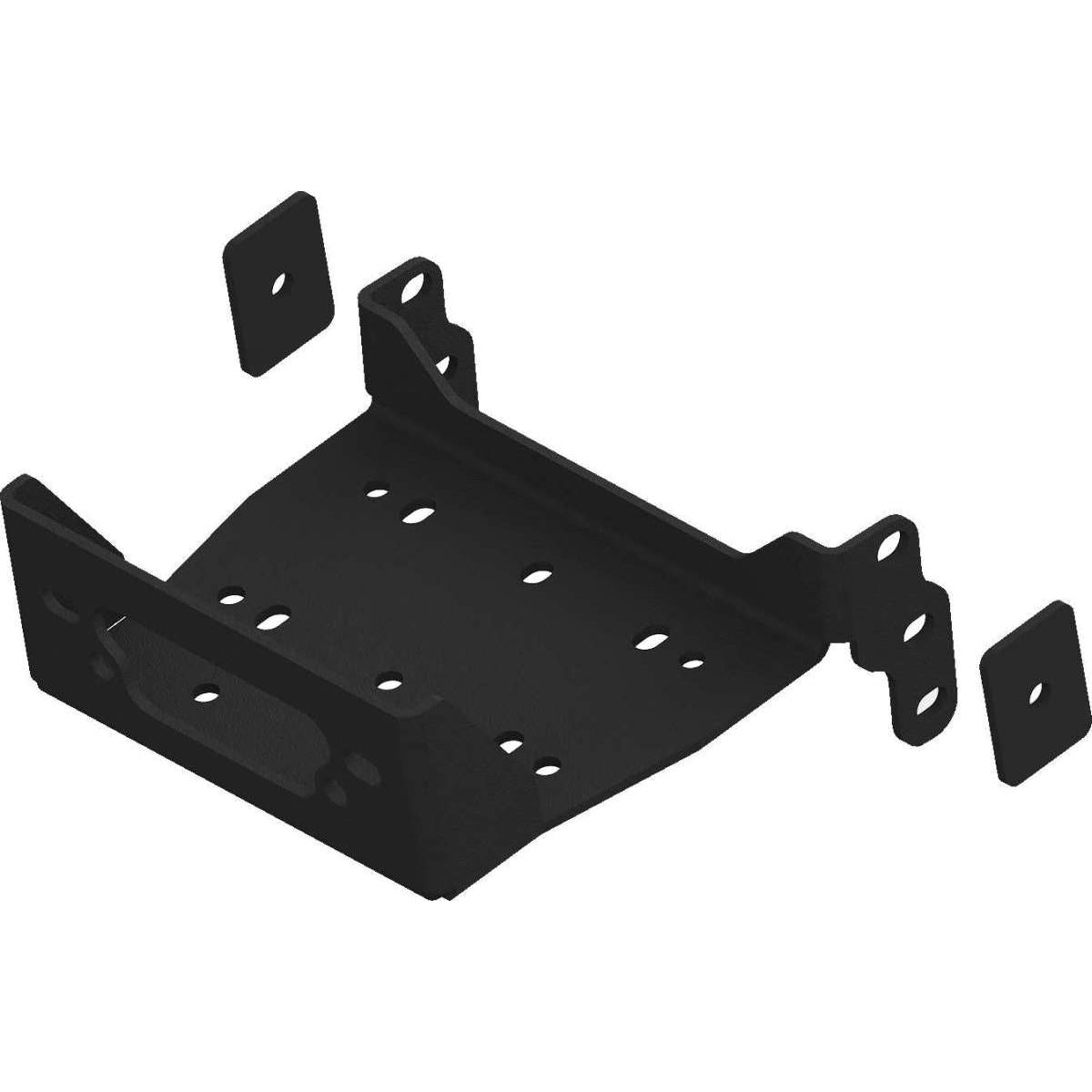

KFI Winch Mount - 101515
Customer Ratings
KFI Winch Mount - 101515
KFI Winch Mount - 101515
Features
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Yamaha Viking 4x4 2014-2019 | 101515 | 101515 | --- | 101515 | 101515 |
| Yamaha Viking VI 4x4 2015-2019 | 101515 | 101515 | --- | 101515 | 101515 |
| Yamaha Wolverine / R-Spec / SE 2016-2018 | 101515 | --- | --- | 101515 | 101515 3 |
| Yamaha Wolverine X2 / R-Spec / SE 2019 | 101515 | 101515 | 101515 3 | 101515 | 101515 3 |
| Yamaha Wolverine X4 / SE 2018-2019 | 101515 | 101515 | 101515 3 | 101515 | 101515 3 |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Please see below for full description and detailed fitment
Brand New "KFI" Winch Mount for the following Yamaha UTV's:
| Yamaha UTV | Year |
| Viking 4x4 | '14-19 |
| Viking VI 4x4 | '15-19 |
| Wolverine / R-Spec / SE | '16-18 |
| Wolverine X2 / R-Spec / SE | 2019 |
| Wolverine X4 / SE | '18-19 |
Designed to work with the following winches:
- KFI on VIKING / Viking VI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50 / AS-50w (Will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
- KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AS-50 / AS-50w (Will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
- KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AS-50 / AS-50w
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:RT40 / XT40 (Requires the drilling of two holes)
- WARN:Vantage 2000-3000lb
- WARN:Vantage 4000lb (Requires the drilling of two holes)
- WARN:ProVantage 2500-3500lbs
- WARN:ProVantage 4500lbs (Requires the drilling of two holes)
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- SUPERWINCH : Terra 45 (Requires drilling of two holes)
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
-
BADLAND: 2-Hole Winches
- (Requires drilling of hole(s))
- BADLAND: Standard Winches
-
BADLAND: WIDE Winches
- (Requires drilling of two holes)
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
-
CHAMPION : WIDE Winches
- (Requires drilling of two holes)
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER :KT4000 / KT4000C (Requires the drilling of two holes)
-
KEEPER CORP. TRAKKER :KT2000 (Requires the drilling of one holes)
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
SMITTYBILT :XRC 2.0 (Requires drilling of one holes)
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up.
- All with 3.00" x 6.600" bolt pattern mount-up will require the drilling of two holes.
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE that will require the drilling of two holes (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole that will require the drilling of one hole (3.10" with rollers that are 4.875" bolt pattern)
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Yamaha Viking 4x4 2014-2019 | 101515 | 101515 | --- | 101515 | 101515 |
| Yamaha Viking VI 4x4 2015-2019 | 101515 | 101515 | --- | 101515 | 101515 |
| Yamaha Wolverine / R-Spec / SE 2016-2018 | 101515 | --- | --- | 101515 | 101515 3 |
| Yamaha Wolverine X2 / R-Spec / SE 2019 | 101515 | 101515 | 101515 3 | 101515 | 101515 3 |
| Yamaha Wolverine X4 / SE 2018-2019 | 101515 | 101515 | 101515 3 | 101515 | 101515 3 |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Brand: KFI
Part Number: 101515
