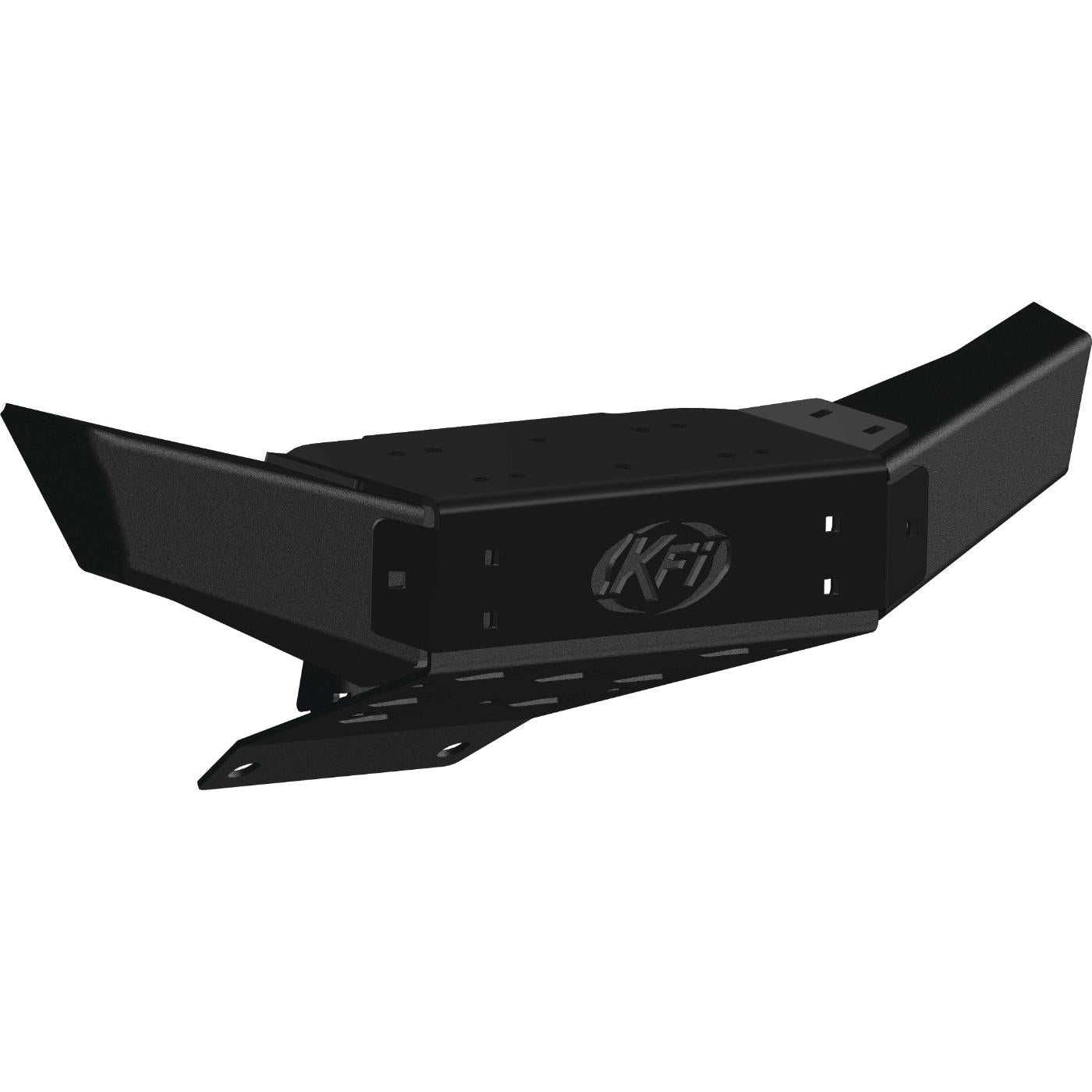

KFI Winch Mount - 101655
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
KFI Winch Mount - 101655
Brand New "KFI" Winch Bumper for the below listed Arctic Cat / Textron
Arctic Cat / Textron | Years |
Wildcat XX | 2018 |
Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45W-R2
- KFI: AS-50 / AS-50w
-
WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- Requires Standard fairlead bracket #101715.
-
WARN:VRX 45 / VRX 45-S
- Requires Wide fairlead bracket #100695.
-
WARN:AXON 35 / AXON 35-S / AXON 45RC
- Requires Standard fairlead bracket #101715.
-
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- Requires Wide fairlead bracket #100695.
- Requires Winch Spacer Kit #101210
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:RT40 / XT40
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN:Vantage 4000lbs / Provantage 4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- BADLAND: WIDE Winches
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
- CHAMPION : WIDE Winches
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
-
KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- SMITTYBILT :XRC 2.0
- SMITTYBILT :XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up.
- All with 3.00" x 6.600" bolt pattern mount-up.
- Traveller:1078311
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 10ga Grade 50 steel.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
Brand: KFI
Part Number: 101655
