Namura Hyperdryve Piston Ring NX-70062R

Bore Size: 87.97mm
Size Over Standard: +0.01mm

• Namura premium world class rings produced by the largest Japanese OEM supplier in the world
• Namura?s rings are designed specifically for their application
• Namura understands that the rings are an essential part of piston performance, engine efficiency, and durability

Often overlooked and unglamorous, they are an essential part of piston performance, engine efficiency, and durability. The materials used in the manufacturing of piston rings are one of the most critical factors in their performance. Namura?s rings are designed specifically for their application. The type of cylinder sleeve, sleeve coating, size of the engine, and the stroke (2 or 4) all play a role in determining the composition best suited for the operating environment. While it may vary by model, we have outlined some of the key features below:

Compression Rings: Composed of either a highly ductile cast iron or stainless steel alloy; both materials possess excellent wear resistance and provide a gastight seal. Chrome, phosphate and nitride coatings are also used to meet the demands of the application.

Oil rings: consist of three separate components. Two scraper rails constructed from highly ductile cast iron or a stainless steel alloy and also have a chrome, nitride, or phosphate coating. The single expansion ring is manufactured from stainless steel.

Brand: Namura
Part Number: NX-70062R

Fitment:

• 2014 HUSABERG FC350
• 2013-2014 HUSABERG FE 350
• 2014-2015 HUSQVARNA FC 350
• 2014-2016 HUSQVARNA FE 350
• 2012-2017 KTM 350 FREERIDE
• 2012-2016 KTM 350EXC-F
• 2011-2015 KTM 350SX-F
• 2012-2015 KTM 350XC-F
• 2012-2015 KTM 350XCF-W

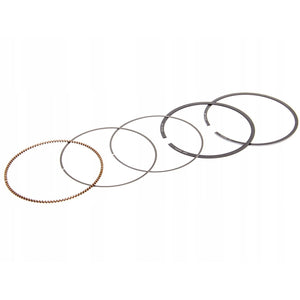

Note: Image is for reference only, actual product may vary slightly depending on your vehicle.
