RMStator High Output Stator RM01023
Customer Ratings

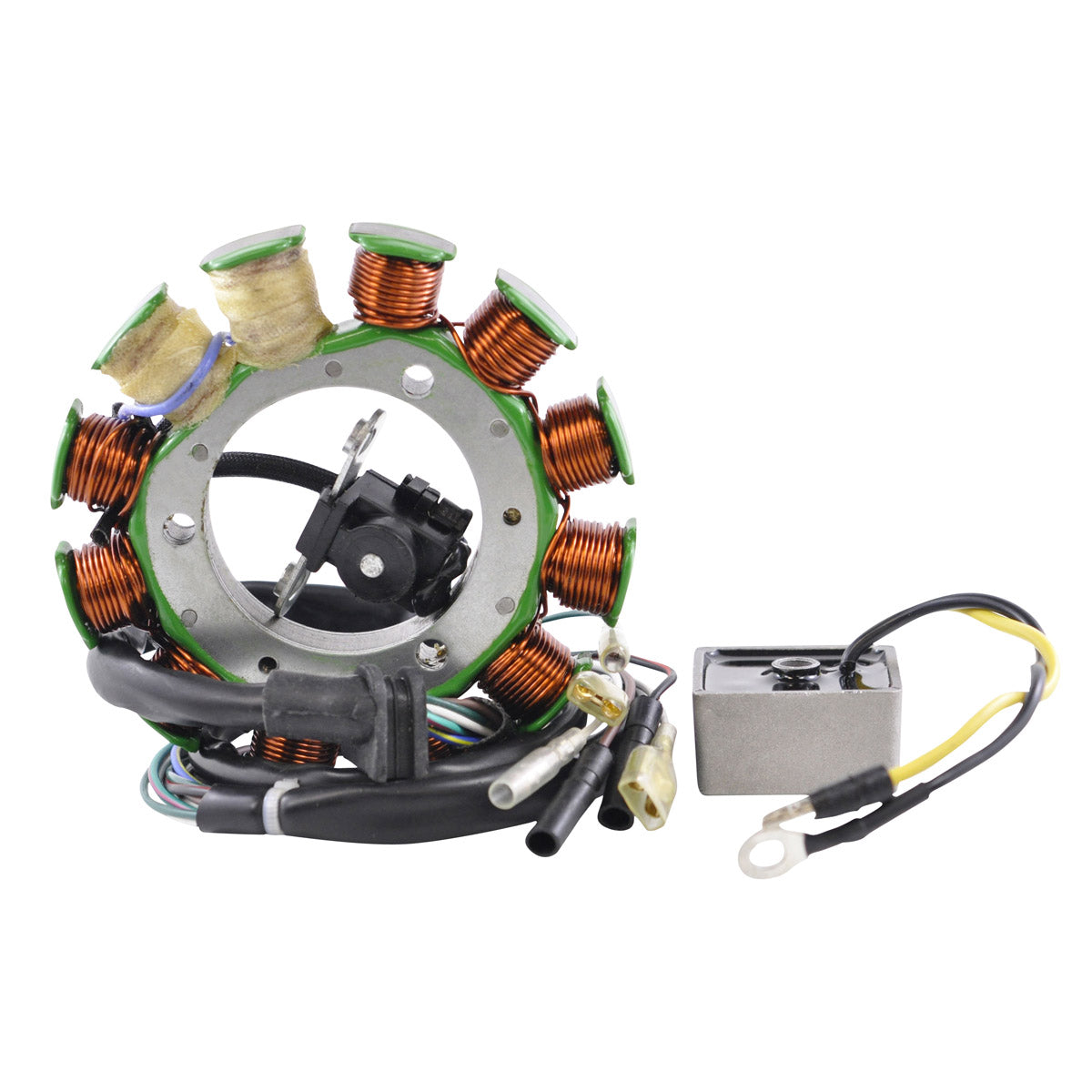

RMStator High Output Stator RM01023
RMStator High Output Stator RM01023
200 W High Efficiency Stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest quality lamination materials
- Highest quality copper windings, resistant to 200 degrees Celsius.
- Pulsar pickup coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Heavy Duty AC Voltage Regulator Rectifier
- 12 Volt regulator used by Baja winners.
- Robust and improved regulator rectifier.
- For use with all standard halogen and quartz lamps.
- Precise tension control, eliminates light burnout.
- Reduce flickering and dimming
- Simple setup.
- Works with all other OEM parts.
- Rated power of 225 watts.
- All products are tested before shipping.
20% MORE PERFORMANCE OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item images are accurate; if in doubt, do not hesitate to compare our article to your original part.
Technical Data
High Output Stator 200 W
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8
Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%
Heavy Duty AC Voltage Regulator Rectifier
Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm
Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?
Please note : this regulator has two wires, yellow to power and black to ground.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01023
Fitment:
- 1996-2004 Honda XR400R
- 2000-2007 Honda XR650R
Note: Image is for reference only, actual product may vary slightly.
