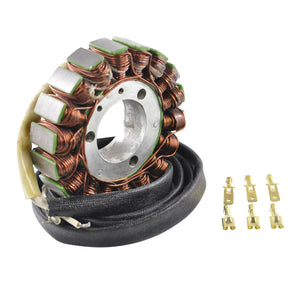

RMStator Stator RM01029

Brand new aftermarket stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :
Interior Diameter: 28mm
Exterior Diamter: 102mm
Thickness: 20mm
Wires length stator to terminals : 700 mm

Other specifications :
Number of wires :3
Number of plugs: 0
Number of terminals : 3

Wire to wire resistance :

Alternator :White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01029

Fitment:

• 1984-1985 Kawasaki 1100 LTD ZN1100B Shaft
• 1980-1984 Kawasaki 550 LTD KZ550C
• 1982 Kawasaki GPz1100 KZ1100B
• 1983-1984 Kawasaki GPz1100 ZX1100
• 1981-1983 Kawasaki GPz550 KZ550H
• 1984-1986 Kawasaki GPz550 ZX550A
• 1981-2003 Kawasaki KZ1000 Lawson
• 2005 Kawasaki KZ1000 Lawson
• 1981-1983 Kawasaki KZ1100A Shaft
• 1980-1983 Kawasaki KZ550A
• 1983 Kawasaki KZ550F Spectre
• 1990-1993 Kawasaki Zephyr 550 ZR550B
• 1983-1986 Suzuki GS550E
• 1983-1986 Suzuki GS550ES
• 1983 Suzuki GS550L
• 1985-1986 Suzuki GS550L
• 2001-2004 Suzuki GSXR1000
• 2004-2005 Suzuki GSXR600
• 2004-2005 Suzuki GSXR750

Note: Image is for reference only, actual product may vary slightly.
