RMStator Stator RM01037

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 13 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 150 mm
Length of pickup coil's wire to grommet : 210 mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : White between each White = 0.2 ohms +/-20%
Pickup : Red to White = 575 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01037

Fitment:

• 1999 Yamaha Kodiak 400 YFM400A

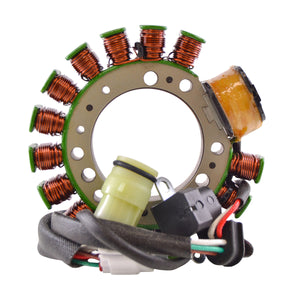

Note: Image is for reference only, actual product may vary slightly.
