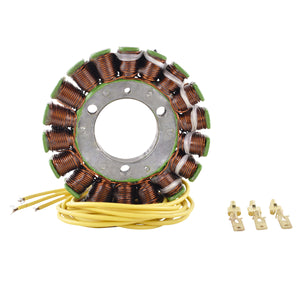

RMStator Stator RM01038

Brand new aftermarket generator stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Wire to wire resistance :

Alternator : Yellow between each Yellow = 0.9 ohms+/-20%
Alternator : Yellow to Ground = O.L. ON DISPLAY
Dimensions :
Interior diameter : 34 mm
Exterior diameter : 93 mm
Thickness : 27 mm
Harness length : 800 mm

Other specifications :
Number of wires : 3
Number of terminals : 3

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01038

Fitment:

• 1983-1988 Kawasaki Voyager 1300 ZN1300A
• 2001-2003 Suzuki GS500
• 2004-2009 Suzuki GS500F

Note: Image is for reference only, actual product may vary slightly.
