RMStator Stator RM01084

Brand new aftermarket stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 23 mm
Length of wires stator : 1000 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Between each Black/Red = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01084

Fitment:

• 1999-2003 Yamaha Road Star XV1600A
• 1999-2003 Yamaha Road Star XV1600A Silverado
• 2001-2003 Yamaha Road Star XV1600AS Midnight
• 2004-2007 Yamaha Road Star XV1700A
• 2004-2007 Yamaha Road Star XV1700AM Midnight
• 2004 Yamaha Road Star XV1700AT Silverado
• 2007 Yamaha Road Star XV1700AT Silverado
• 2004-2007 Yamaha Road Star XV1700ATM Midnight Silverado
• 2003-2009 Yamaha Road Star XV1700PC Warrior
• 2005-2009 Yamaha Road Star XV1700PCM Midnight Warrior
• 2005-2007 Yamaha Road Star Cast Wheels 1700

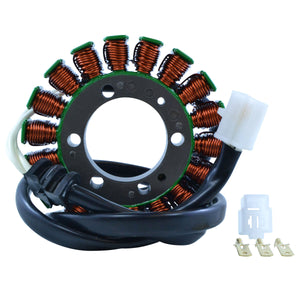

Note: Image is for reference only, actual product may vary slightly.
