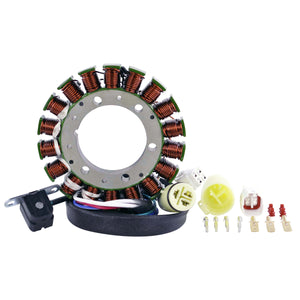

RMStator Stator RM01090

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 460 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications :

Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance :

Alternator: White Between each White = 0.4 ohms +/-20%
Pickup: Green to Blue = 440 ohms +/-20%
Source: Red to Blue/White = 0.2 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01090

Fitment:

• 2007-2008 Yamaha Grizzly 400 YFM400FG 4x4
• 2007-2014 Yamaha Grizzly 450 YFM450 4x4 Auto
• 2000-2006 Yamaha Kodiak 400 YFM400A
• 2003-2006 Yamaha Kodiak 450 YFM450 4x4 Auto
• 2006-2010 Yamaha Wolverine 450 YFM450FX 4x4

Note: Image is for reference only, actual product may vary slightly.
