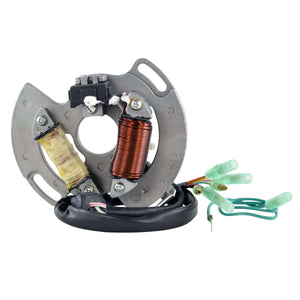

RMStator High Output Stator RM01091

Brand new high output stator 75 watts

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• 75 watts output so you can run brighter light
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 54 mm
Exterior diameter : 120 mm
Thickness : 15 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :

Number of wires : 5
Number of plugs : 5
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow/Red to Black = 0.4 ohms +/-20%
Pickup : White/Red to Black = 20 ohms +/-20%
Source : Black/Red to Green/White = 280 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01091

Fitment:

• 1988-2006 Yamaha Blaster 200 YFS200

Note: Image is for reference only, actual product may vary slightly.
