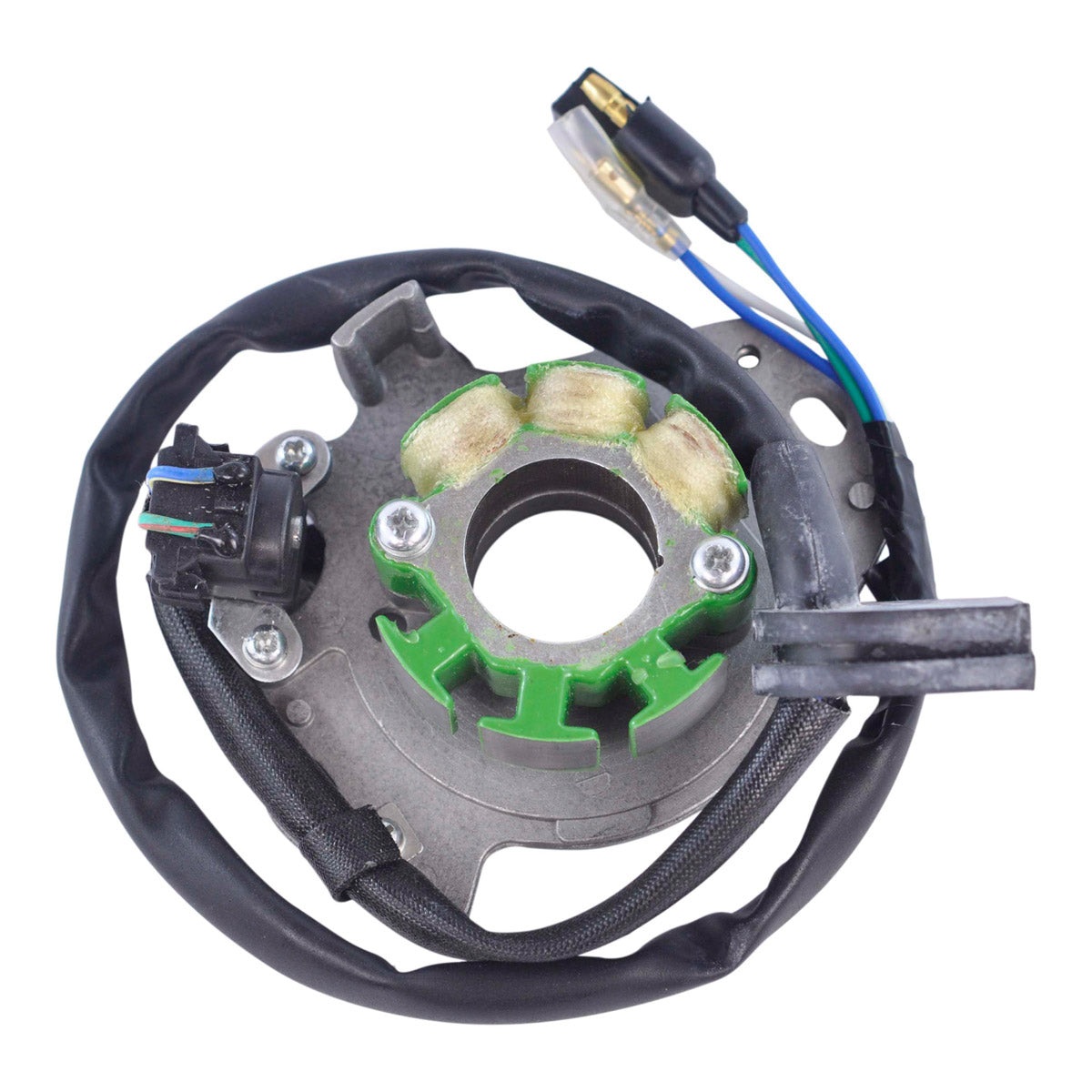

RMStator Stator RM01190

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 27 mm
Exterior diameter : 76 mm
Thickness : 26 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 440 mm
Length of pickup coil's wire to grommet : 145 mm

Other specifications :

Number of wires : 4
Number of plugs : 3
Number of pins : 4

Wire to wire resistance :

Pickup : Blue/White to Green/Red = 255 ohms +/-20%
Source : Blue to White = 35 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01190

Fitment:

• 1990-1997 Honda CR125R
• 1990-1996 Honda CR250R

Note: Image is for reference only, actual product may vary slightly.
