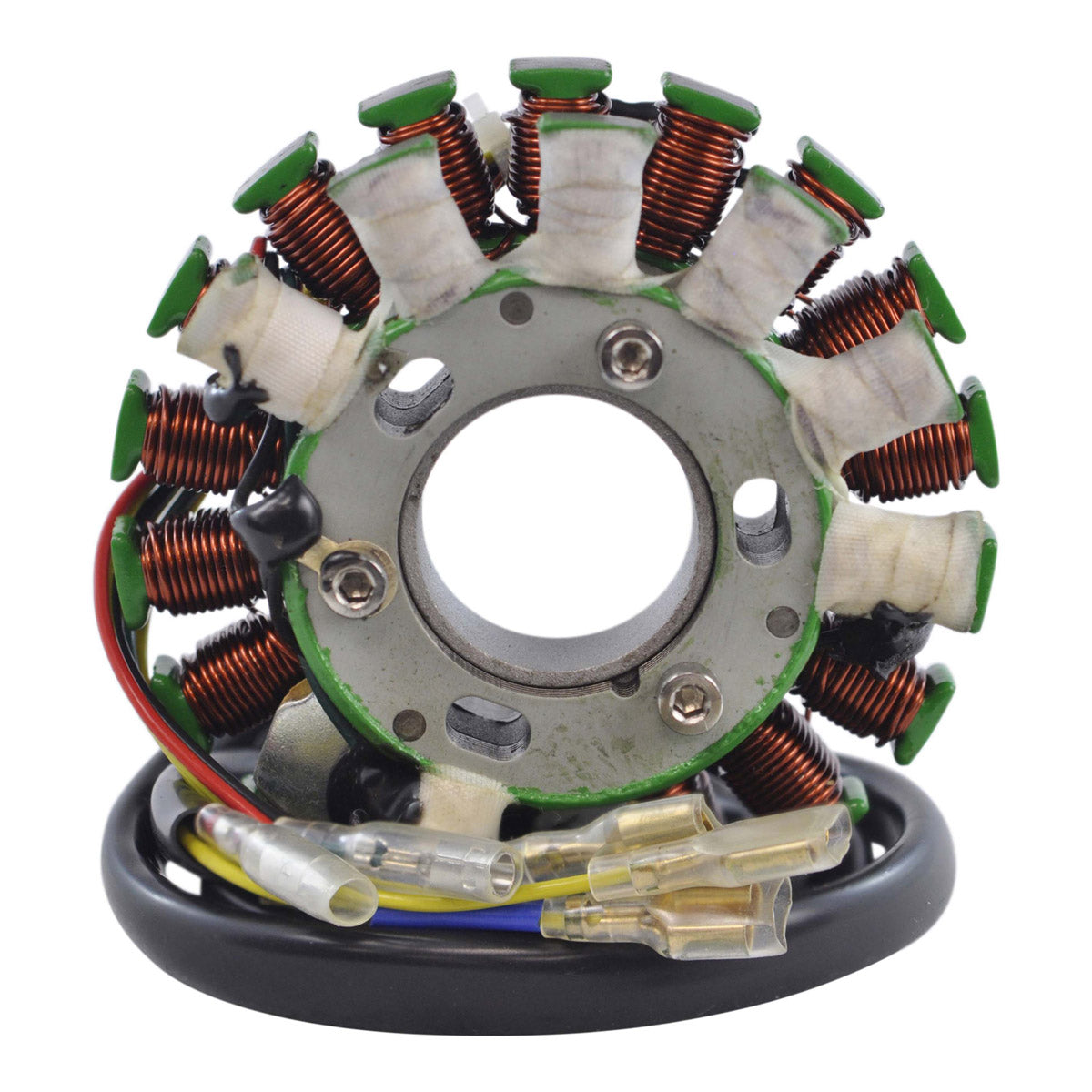

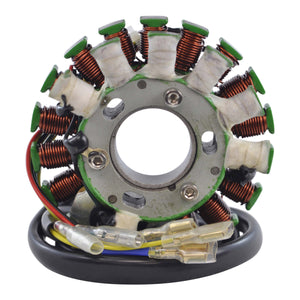

RMStator Stator RM01193

RMStator Stator RM01193

Brand new improved SEM Direct replacment stator

• Direct replacement of original SEM manufactured stator even if the look is different
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Produces a stronger spark when starting and offers a reliable performance
• Pick up coil included
• All product shipped are tested

All item pictures are accurate

Technical Data

Dimensions :

Interior diameter : 28mm
Exterior diameter : 91mm
Thickness : 23mm
Length of wires stator to plug : 700mm

Other specifications :

Number of wires : 6
Number of plugs : 6
Number of pins : 6

Wire to wire resistance :

Alternator :Yellow Between each Yellow = 0.4 ohms +/-20%
Pickup : Black To Green = 179 ohms +/-20%
Source : Red To Black = 1260 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01193

Fitment:

• 2001-2002 Husaberg FC470
• 2002 Husaberg FC470E
• 2001-2002 Husaberg FC550
• 1999-2000 Husaberg FC600
• 1999-2000 Husaberg FE400
• 1999-2003 Husaberg FE400E
• 1999-2000 Husaberg FE501
• 1999-2003 Husaberg FE501E
• 2000 Husaberg FE600
• 1999-2000 Husaberg FE600E
• 2001-2003 Husaberg FE650E
• 2003 Husaberg FS400E
• 1999 Husaberg FS600E
• 2002-2003 Husaberg FS650E
• 2001-2002 Husaberg FX470E
• 1999 Husaberg FX501E
• 1999-2000 Husaberg FX600E
• 2001-2003 Husaberg FX650E

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RM01193-R00,250 202-01,250 286-01,250 272-01,250 285-01,250-285-01
