RMStator Stator RM01209
Customer Ratings

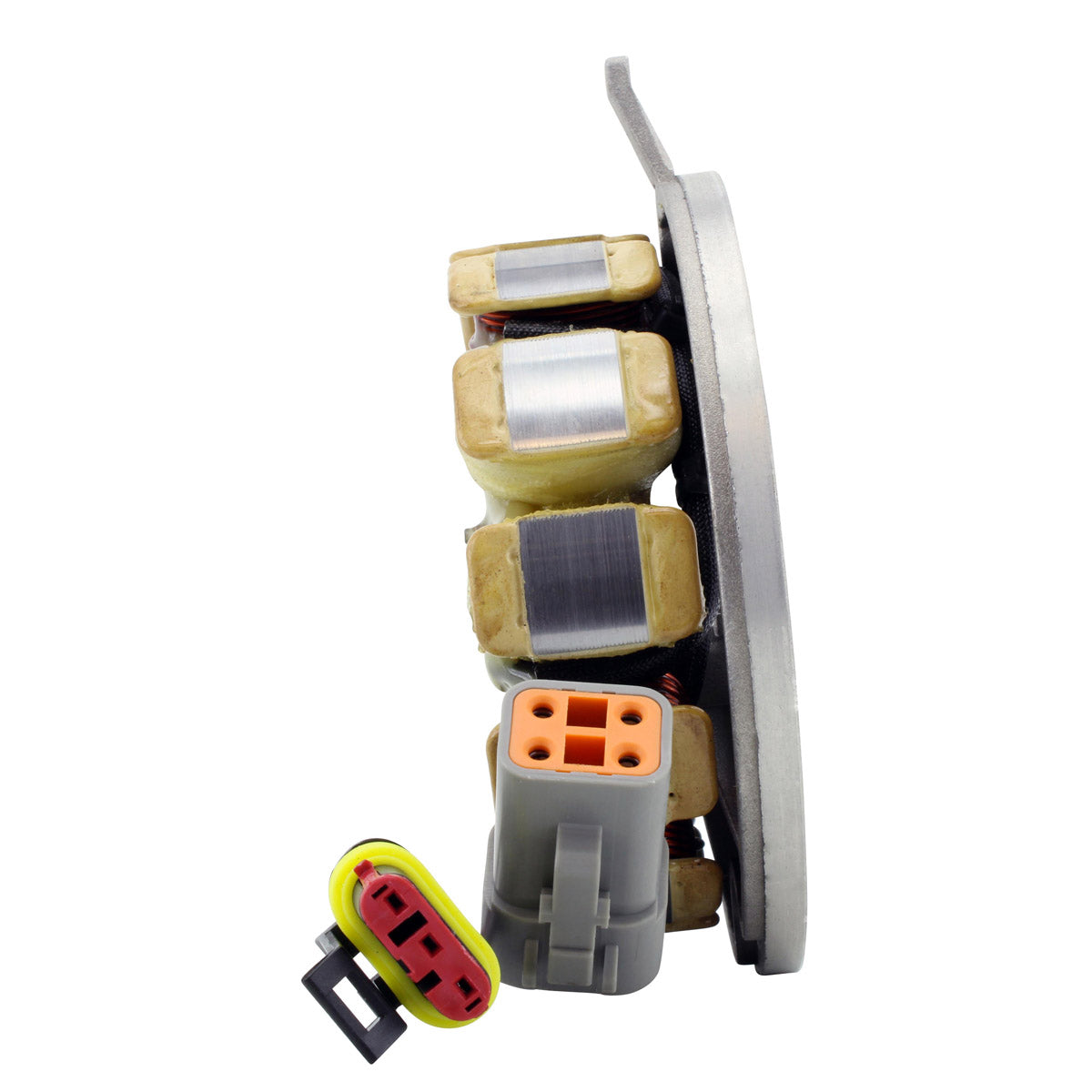

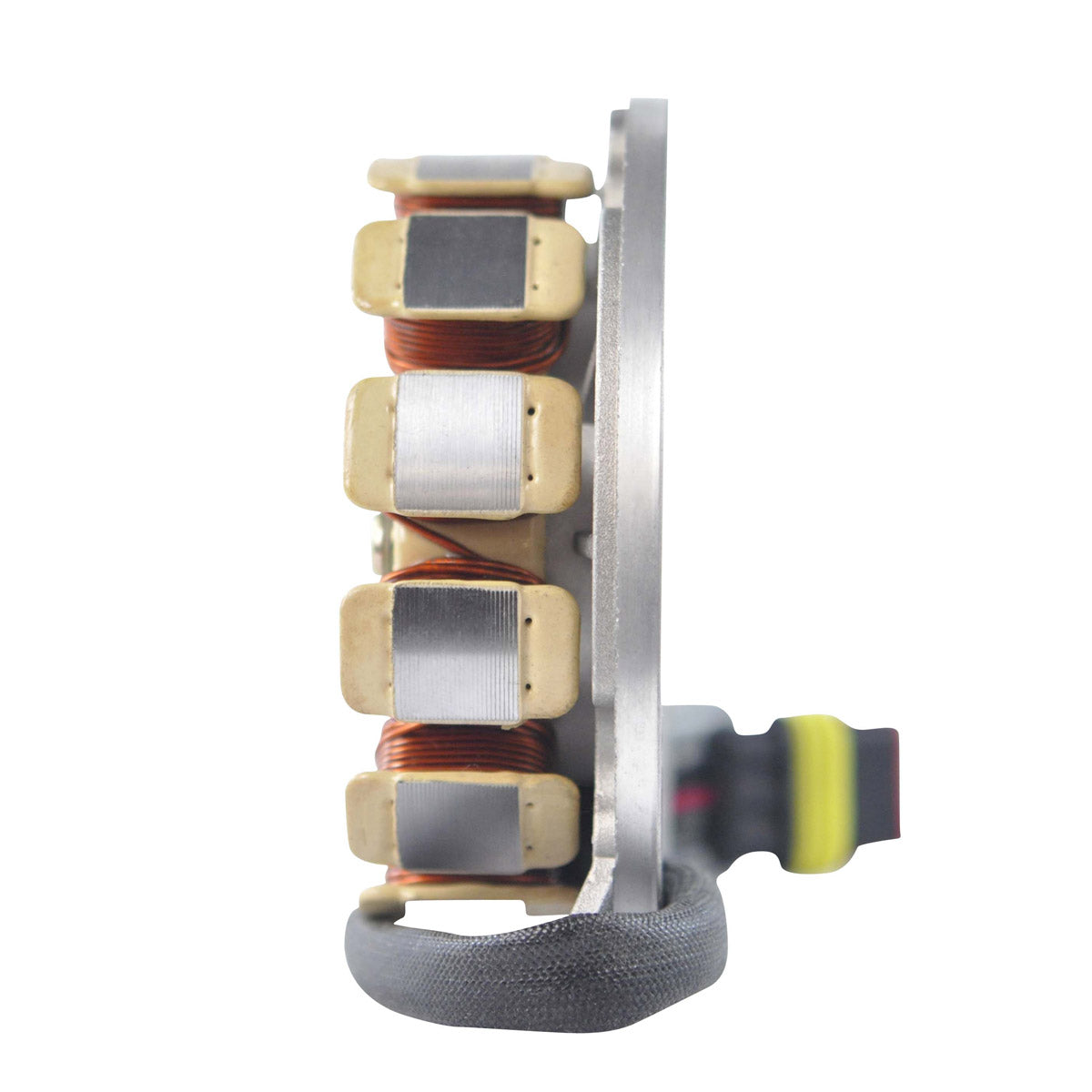

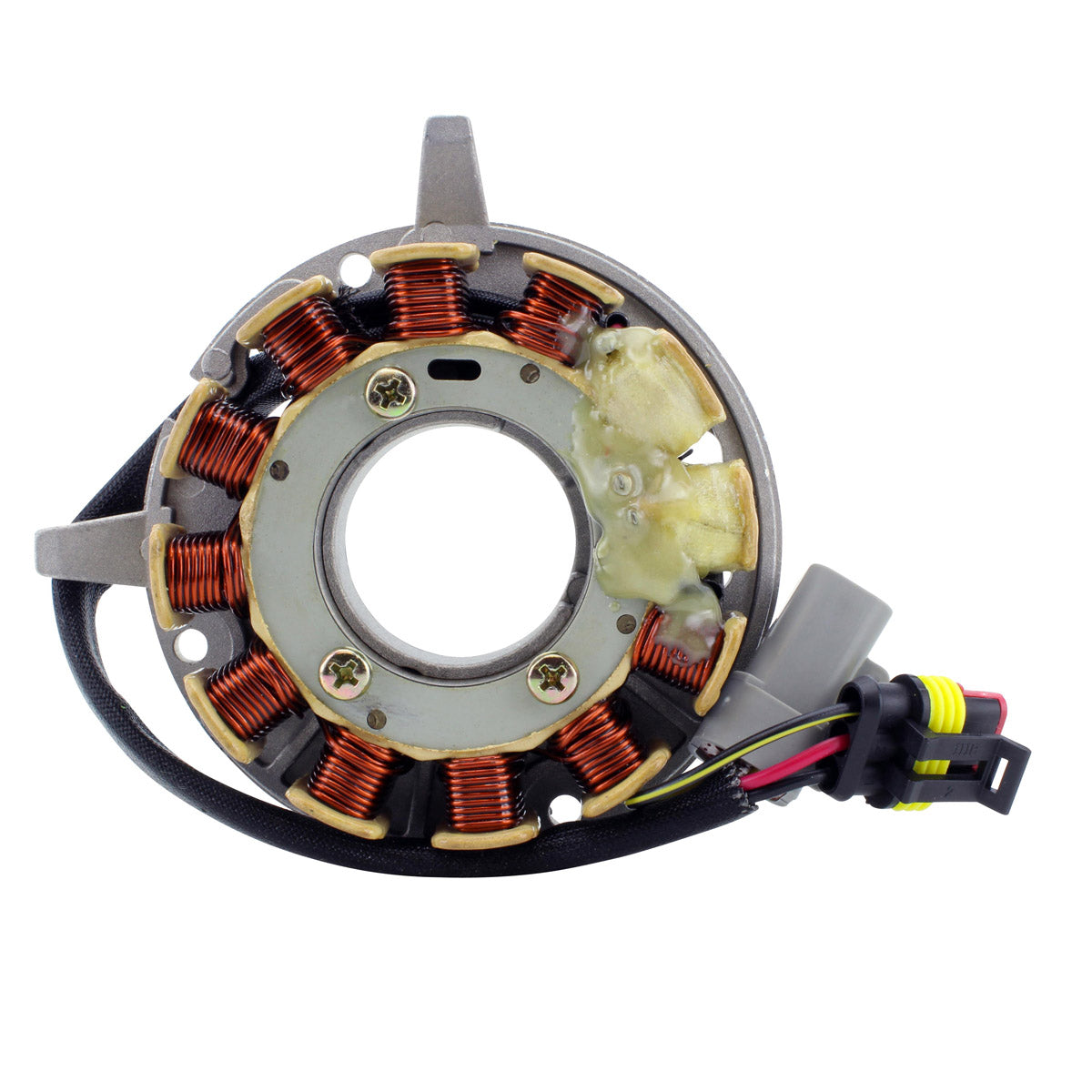

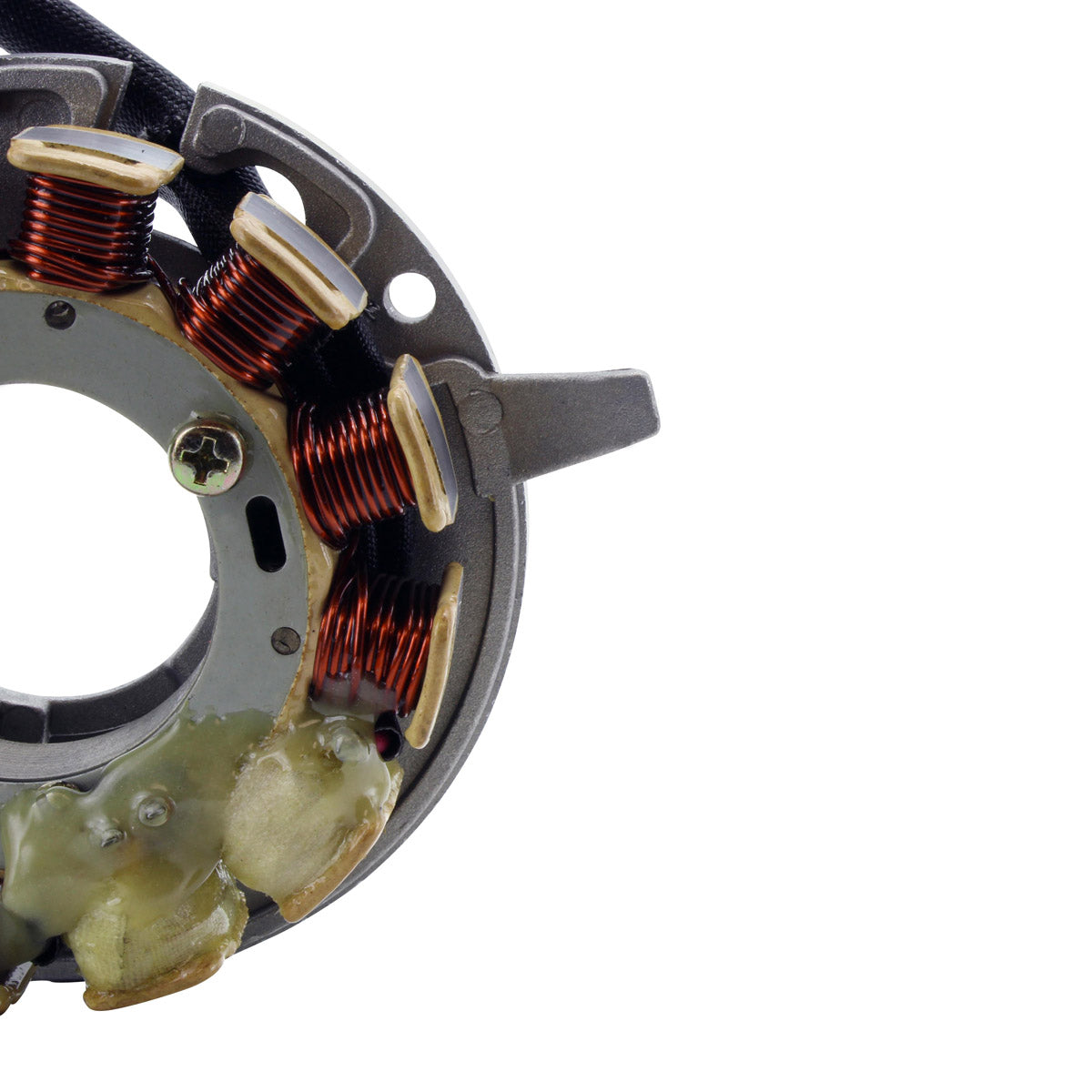

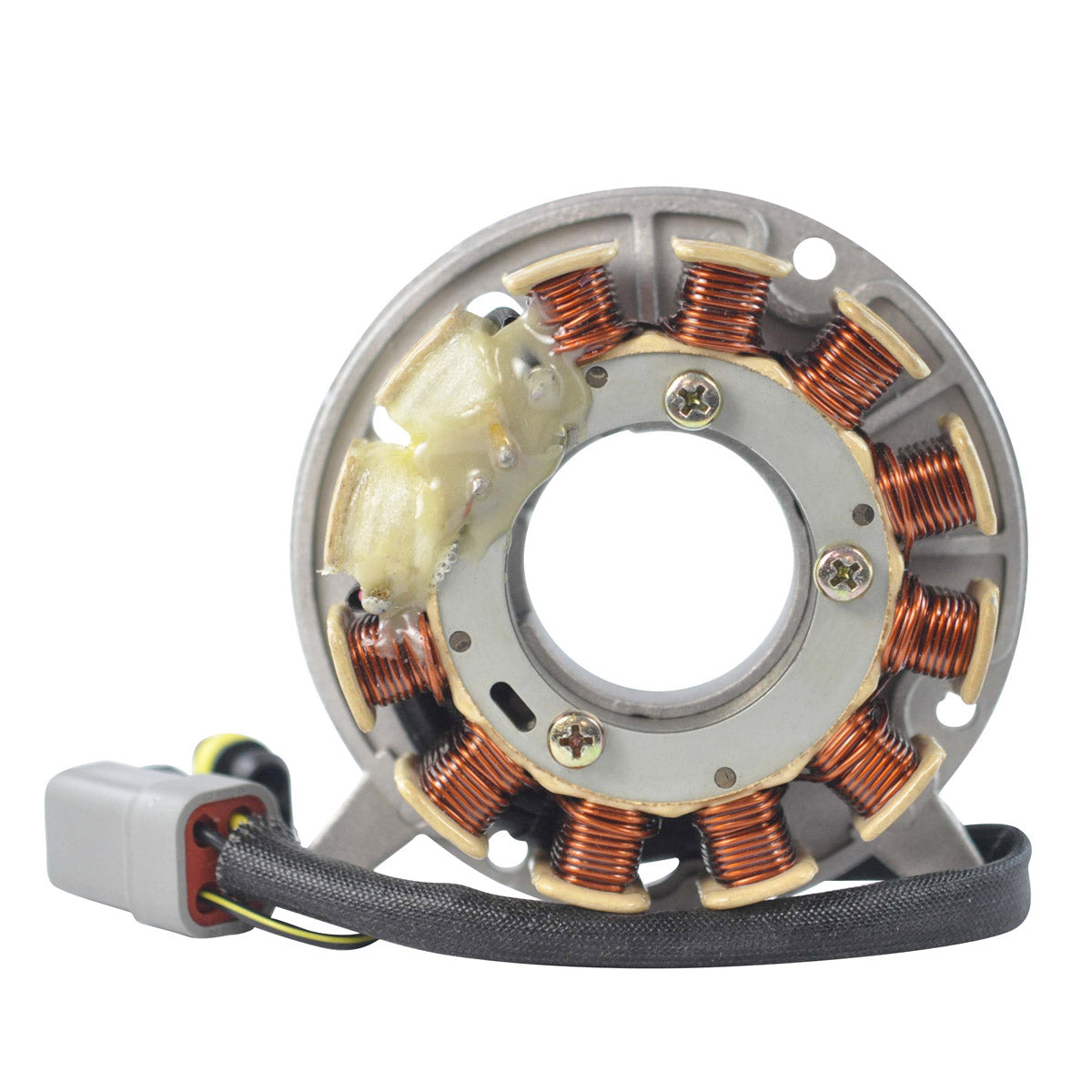

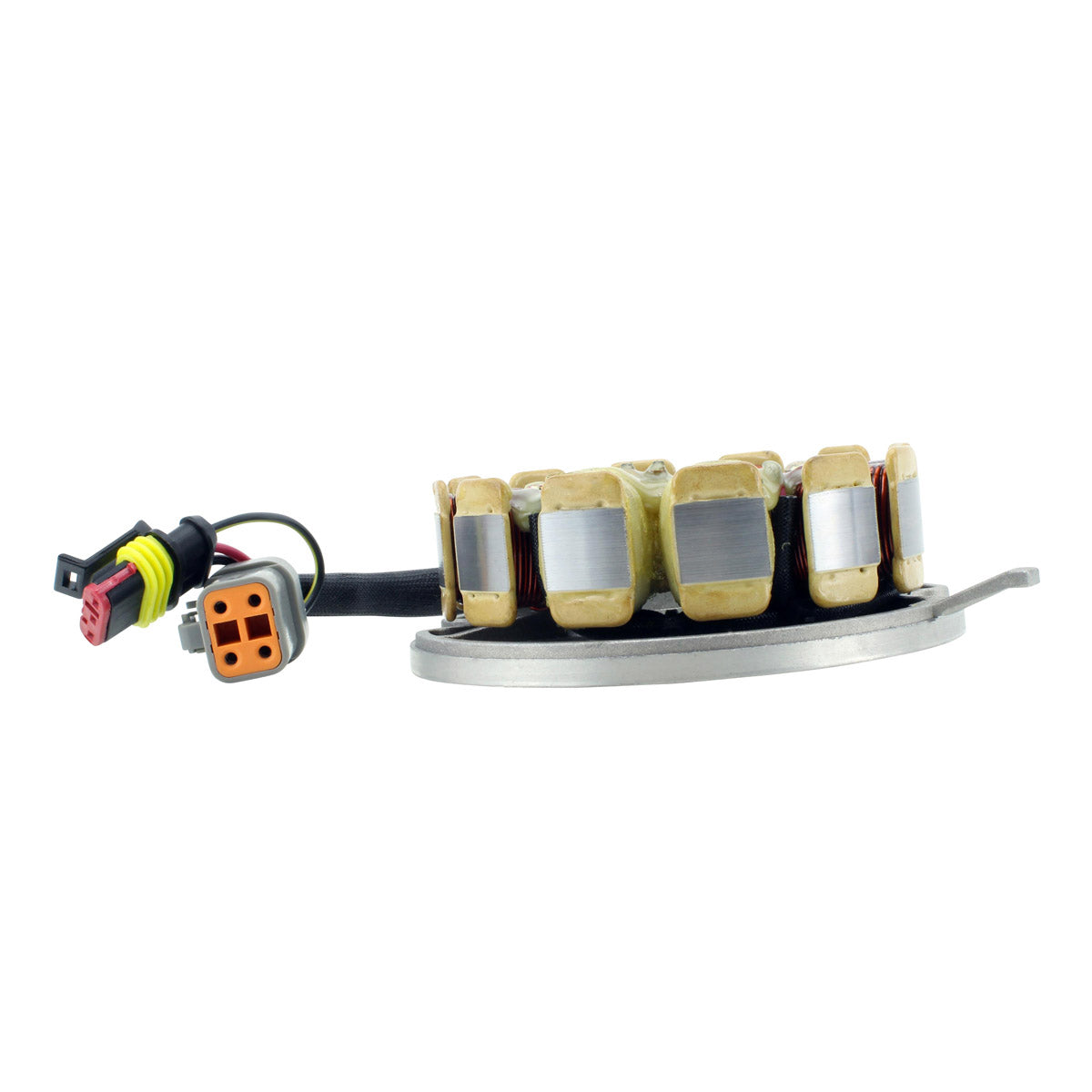

RMStator Stator RM01209
RMStator Stator RM01209
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

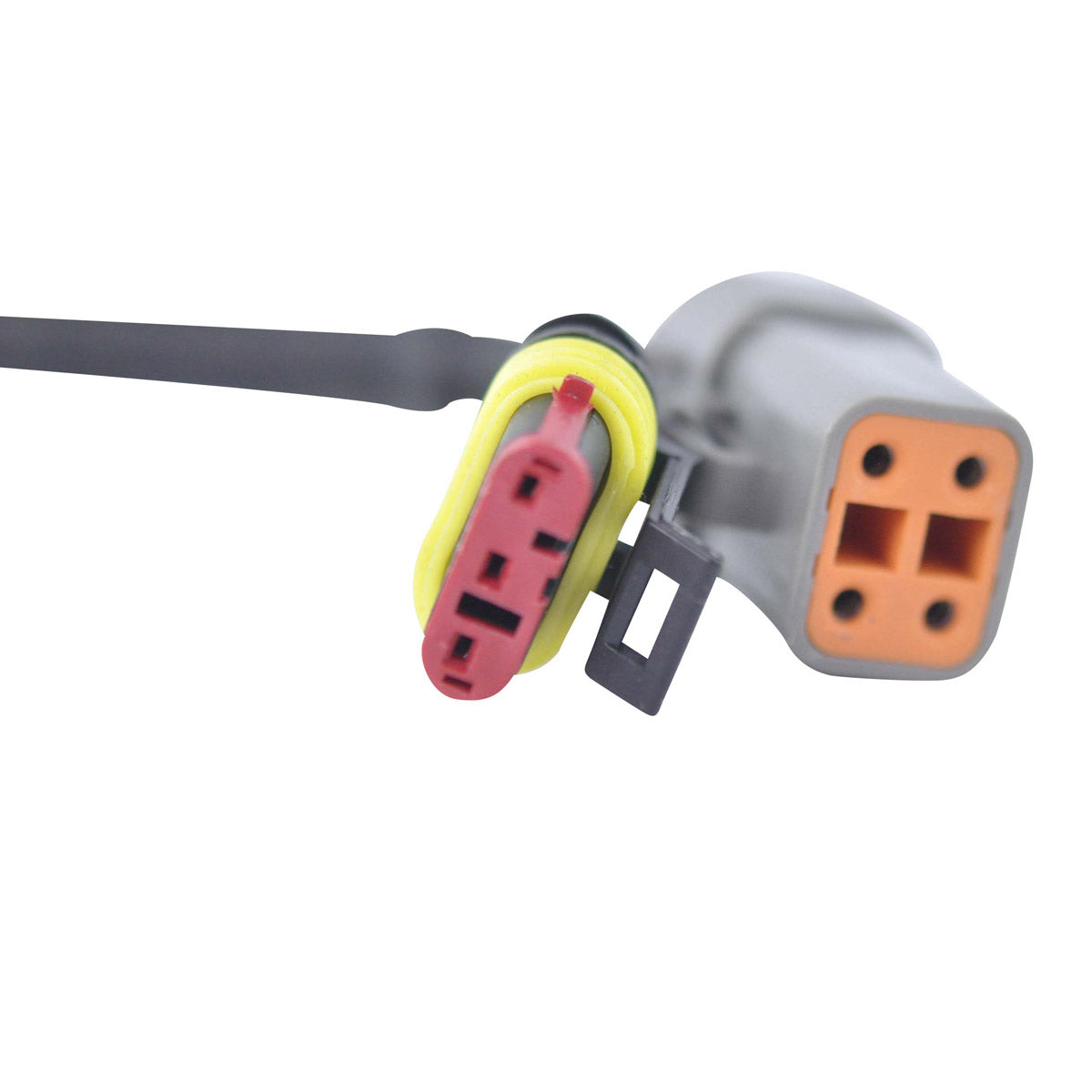

- Connector included

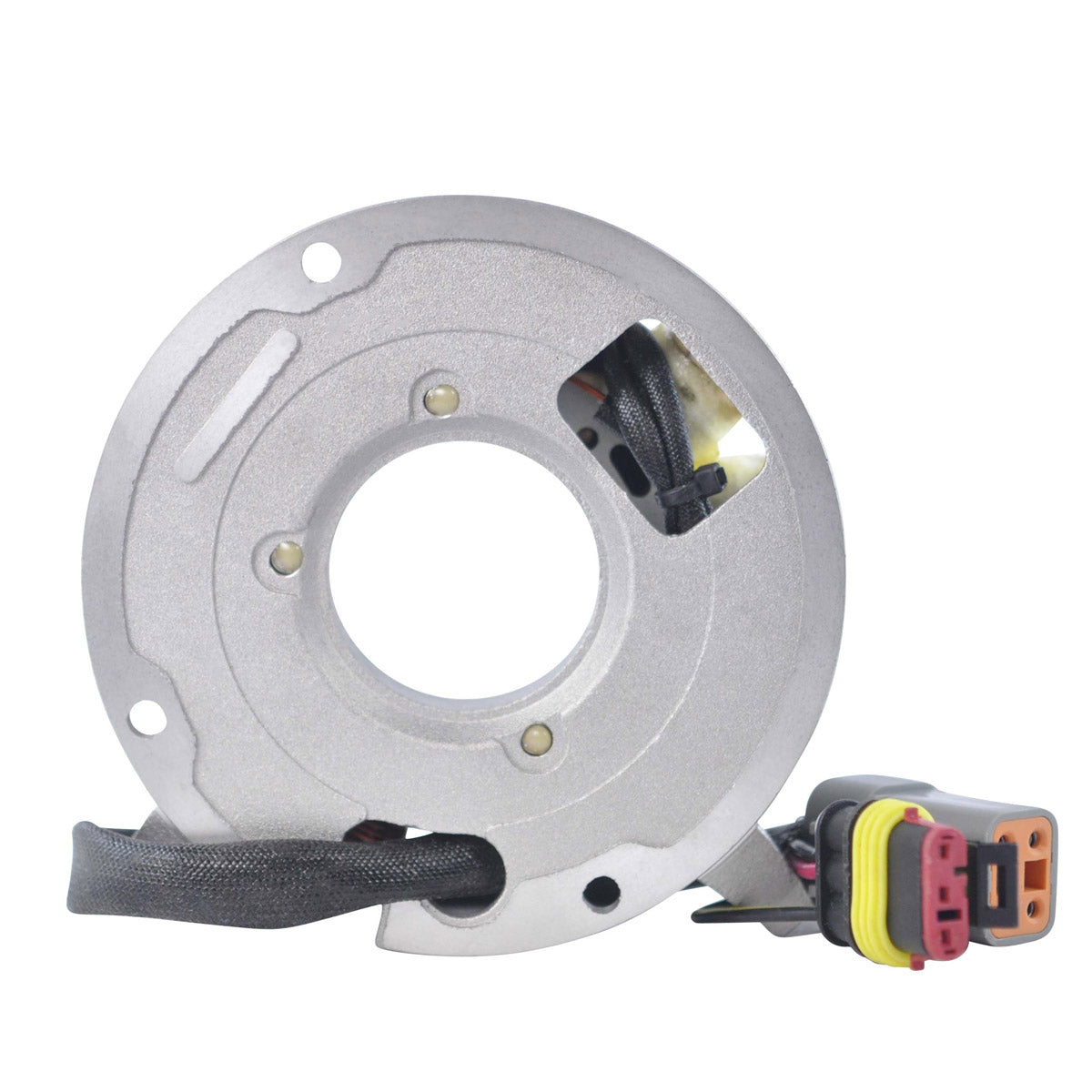

- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 43 mm
Exterior diameter : 96 mm
Thickness : 20 mm
Length of wires stator to connectors : 160 mm & 210 mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Source : Black to Red = 5.0 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01209
Fitment:
- 2002-2006 Lynx 5900 FCE
- 2002-2005 Lynx Enduro 400
- 2002 Lynx Enduro 550F
- 2002 Lynx Explorer 500
- 2002 Lynx Ranger FCE
- 2002 Lynx Safari 400
- 2002 Ski-doo Grand Touring 380F Fan
- 2002 Ski-doo Grand Touring 500 Carb
- 2002 Ski-doo Legend 380F Fan Carb
- 2002 Ski-doo Legend 500F Fan Carb
- 2002 Ski-doo MXZ 380 Fan Carb
- 2002 Ski-doo MXZ 500F Fan Carb
- 2003 Ski-doo Skandic 500F Sport Carb F/C
- 2002 Ski-doo Summit 500 Carb F/C
Note: Image is for reference only, actual product may vary slightly.
