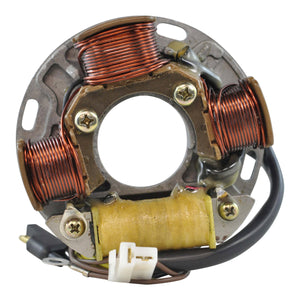

RMStator Stator RM01218

Brand new stator

• Brand new aftermarket part
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 40 mm
Exterior diameter : 110 mm
Thickness : 22 mm
Length of wires stator to plug : 200 mm

Other specifications :

Number of wires : 7
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :

Alternator : Yellow To Yellow/Brown = 0.4 ohms +/-20%
Source 1 : Black to Black/Red = 78 ohms +/-20%
Source : Black To Black/Yellow = 78 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01218

Fitment:

• 1990-1992 Ski-doo Formula MX 467 Carb L/C
• 1990 Ski-doo Formula Plus 500 Carb L/C
• 1990-1991 Ski-doo Formula Plus 521 Carb L/C
• 1990-1991 Ski-doo Formula Plus 537 Carb L/C
• 1992 Ski-doo Formula Plus 580 Carb L/C
• 1991 Ski-doo Formula Plus X 521 Carb L/C
• 1991 Ski-doo Formula Plus X 537 Carb L/C
• 1991 Ski-doo Formula Plus XTC 521 Carb L/C
• 1991 Ski-doo Formula Plus XTC 537 Carb L/C
• 1992 Ski-doo Formula Plus XTC 580 Carb L/C
• 1991 Ski-doo Formula Plus MX X 467 Carb L/C
• 1992 Ski-doo Formula XTC R 467 Carb L/C
• 1990-1991 Ski-doo Mach 1 600 Carb L/C
• 1991 Ski-doo Nordik 50 Carb F/C
• 1991 Ski-doo Nordik 60 Carb F/C
• 1990 Ski-doo Safari L 377 Carb F/C
• 1990 Ski-doo Safari LX 477 Carb F/C
• 1990 Ski-doo Safari LXE 477 Carb F/C
• 1990 Ski-doo Safari 377 Carb F/C
• 1990-1992 Ski-doo Safari 467 Carb L/C
• 1992 Ski-doo Tundra 250 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
