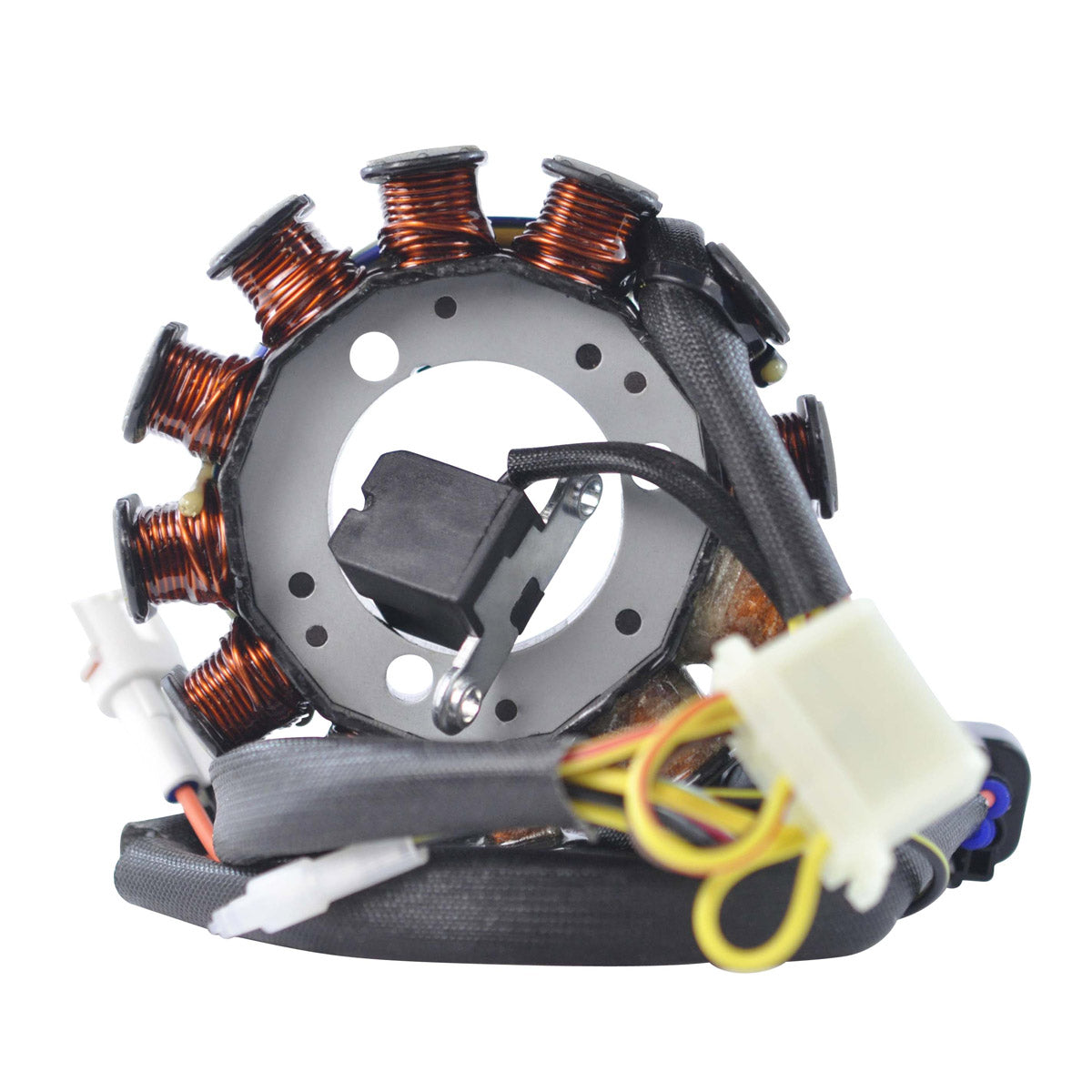

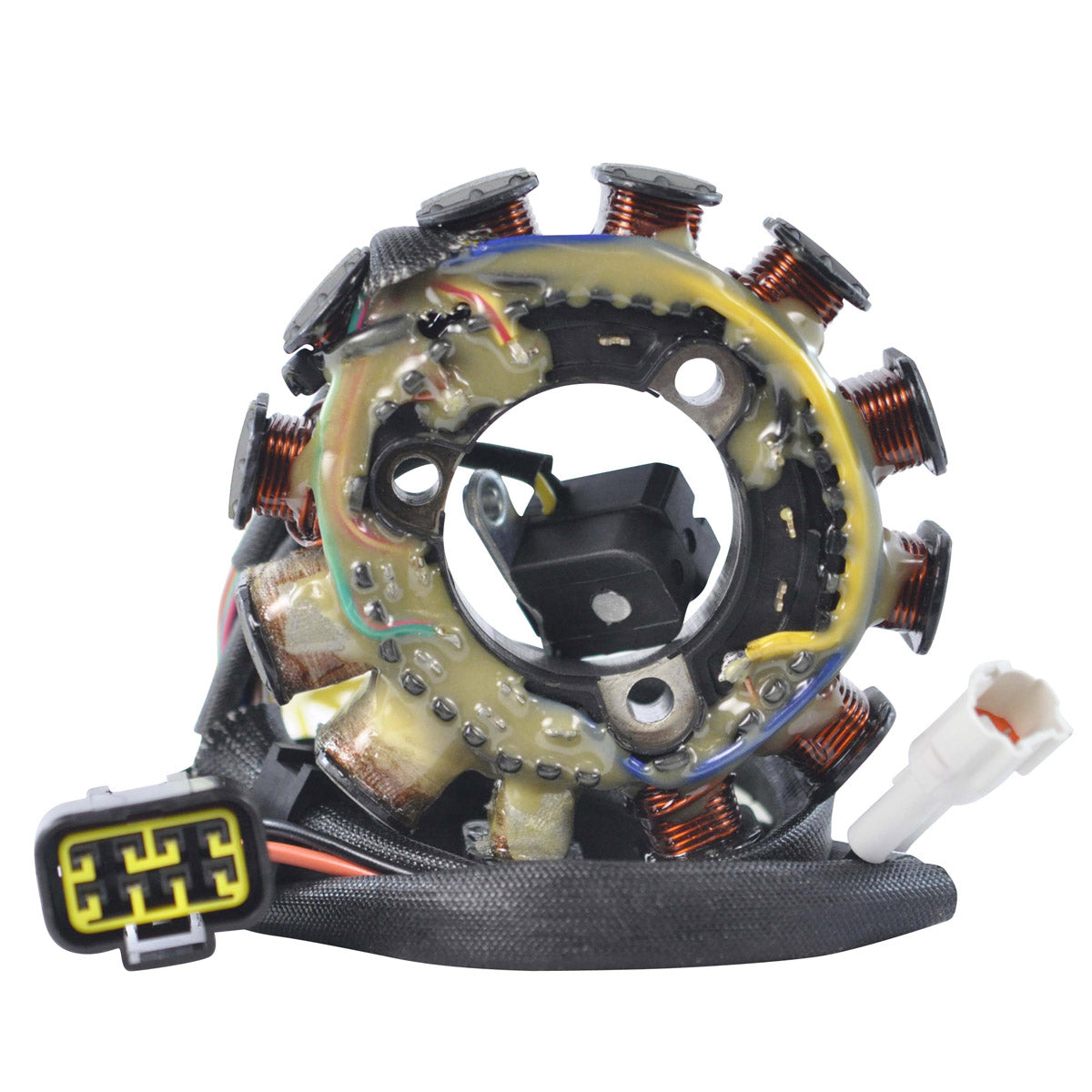

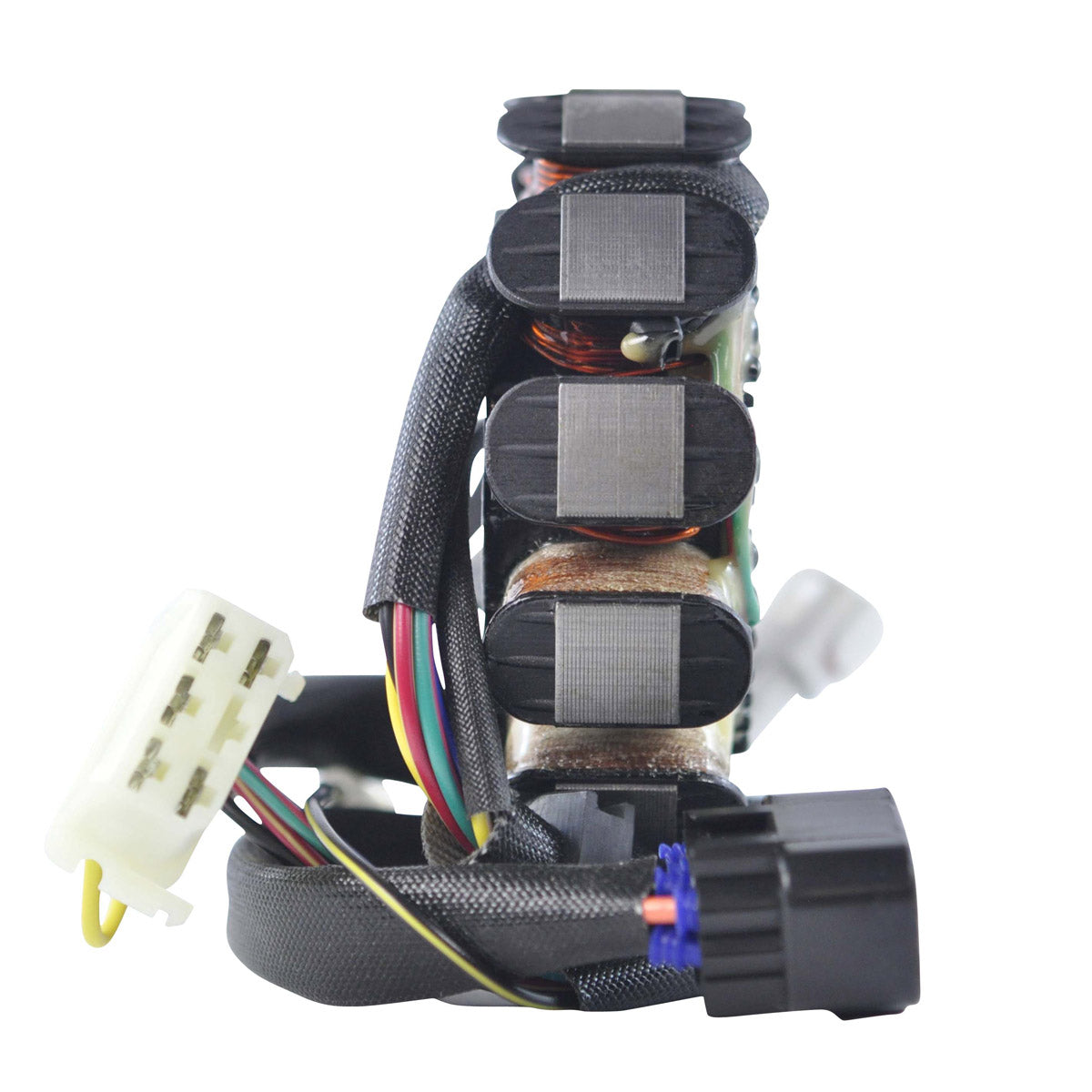

RMStator Stator RM01220

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 15mm
Length of wires stator to grommet : 35mm
Length of wires grommet to plug : 465mm
Length of pickup coil's wire to grommet : 85mm

Other specifications :

Number of wires : 11

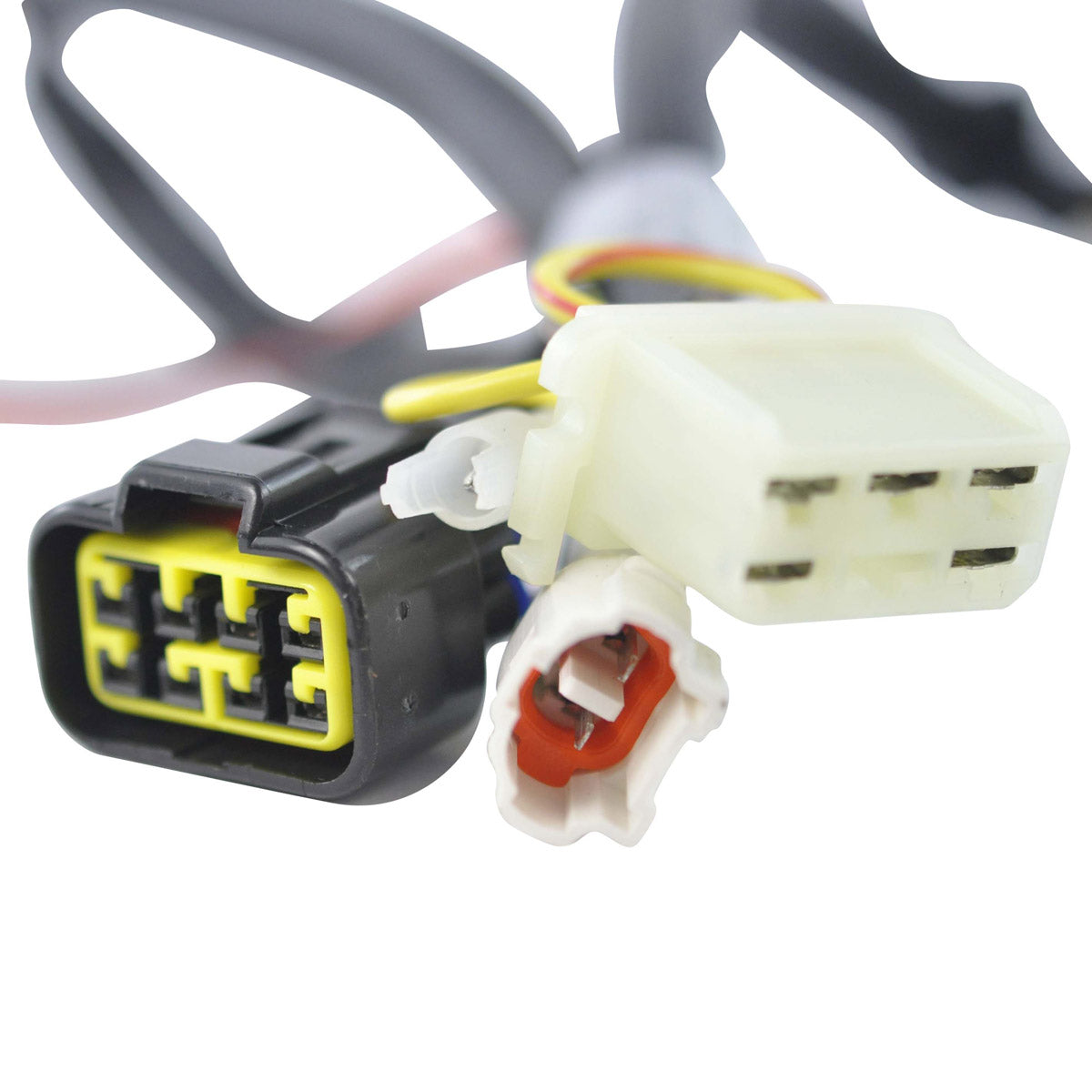

Number of plugs : 4
Number of pins : 16

Wire to wire resistance :

Alternator : Yellow to Yellow/Red = 0.4ohms +/-20%
Pickup : Yellow to Black = 205ohms +/-20%
Source : Blue/Red to Black = 35ohms +/-20%
Source 2 : Green/Red to Red/White = 450ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01220

Fitment:

• 2000-2003 Polaris 550 Sport Touring Carb F/C
• 1999-2003 Polaris 550 Trail RMK Carb F/C
• 2000 Polaris 550 Trail Touring Carb F/C
• 2002 Polaris 550 Trail Touring Carb F/C
• 2002 Polaris Classic 550 Carb F/C
• 2003 Polaris Classic 550 Edge Carb F/C
• 2003 Polaris Edge 340 Supersport Carb F/C
• 2000-2001 Polaris Sport Touring
• 2000 Polaris Sport Lite 440
• 2000-2003 Polaris Sportsman 550 Touring EPS
• 1999-2000 Polaris Super Sport 550 Carb F/C
• 2002 Polaris Super Sport 550 Carb F/C
• 2003 Polaris Super Sport 550 Edge Carb F/C
• 2003 Polaris Super Sport 550 M-10 F/O Carb F/C
• 2003 Polaris Super Sport 550 M-10 X F/O Carb F/C
• 1999 Polaris XCF 440 Carb F/C
• 2000-2001 Polaris XCF EDGE 440 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
