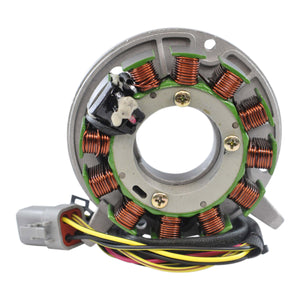

RMStator Stator RM01227

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Back Plate included
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 570 mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : Between each Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black = 8 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01227

Fitment:

• 2004-2007 Lynx 6900
• 2001 Lynx 6900 FCE
• 2007 Lynx Adventure 300F
• 2006-2009 Lynx Adventure 550
• 2008 Lynx Adventure Ranger 550
• 2005 Lynx Enduro 550 RC
• 2003-2005 Lynx Enduro 550F
• 2001 Lynx Explorer 500
• 2003-2004 Lynx Explorer 550
• 2001-2004 Lynx Forest
• 2005-2006 Lynx Forest Fox
• 2007-2008 Lynx Forest Fox 440
• 2000 Lynx Ranger 2000
• 2005-2006 Lynx Ranger 550
• 2001 Lynx Ranger FCE
• 2008-2009 Lynx Rave 550
• 2006-2007 Lynx Rave N-duro 550F
• 2006 Lynx Rave Xtrim N-duro 550F
• 2007 Lynx Rave Xtrim Std 550F
• 2001 Lynx Safari 400
• 2004-2006 Lynx Safari 400
• 2005 Lynx Safari 400E
• 2003 Lynx Safari 400F
• 2005-2007 Lynx ST 550
• 2003-2004 Lynx ST 550F
• 2000 Lynx Touring 500F
• 2001 Lynx Traveller 500
• 2008-2009 Lynx Xtrim 550
• 2008-2009 Lynx YETI 550
• 2011 Lynx YETI 550
• 2008-2011 Lynx YETI Pro 550
• 2005 Ski-doo Expedition 550 Crank Start Carb F/C
• 2005 Ski-doo Expedition 550 Electric Start Carb F/C
• 2007-2008 Ski-doo Expedition 550F Sport Carb F/C
• 2011 Ski-doo Expedition 550F Sport Carb F/C
• 2013 Ski-doo Expedition 550F Sport Carb F/C
• 2006 Ski-doo Expedition 550F Sport Electric Start Carb F/C
• 2006 Ski-doo Expedition 550F Sport Manual start Carb F/C
• 1999-2001 Ski-doo Formula 380 Deluxe Fan Carb
• 1999-2001 Ski-doo Formula 500 Deluxe Fan Carb
• 1998 Ski-doo Formula 500 Deluxe LC Carb
• 2000 Ski-doo Formula S 380 Carb F/C
• 2006-2008 Ski-doo Freestyle 300F Electric Start Carb F/C
• 2006-2007 Ski-doo Freestyle 300F Manual Start Carb F/C
• 2008 Ski-doo Freestyle 300F Session Manual start Carb F/C
• 2007-2008 Ski-doo Freestyle 550F Back Country Crank Start Carb F/C
• 2007-2009 Ski-doo Freestyle 550F Back Country Electric Start Carb F/C
• 2007-2008 Ski-doo Freestyle 550F Park Crank Start Carb F/C
• 2007-2008 Ski-doo Freestyle 550F Park Electric Start Carb F/C
• 2003 Ski-doo Grand Touring 380F Fan
• 2003 Ski-doo Grand Touring 550 Fan Carb
• 2010-2011 Ski-doo Grand Touring 550F Sport Carb F/C
• 2013 Ski-doo Grand Touring 550F Sport Carb F/C
• 2005-2006 Ski-doo GSX 380F Fan Carb
• 2005-2010 Ski-doo GSX 550F Fan Carb
• 2005-2006 Ski-doo GTX 380F Fan Carb
• 2005-2007 Ski-doo GTX 550F Fan Carb
• 2003-2004 Ski-doo Legend 380F Fan Carb
• 2003 Ski-doo Legend 500F Fan Carb
• 2004 Ski-doo Legend 550 Fan Carb
• 2001 Ski-doo MXZ 380 Fan Carb
• 2003-2006 Ski-doo MXZ 380 Fan Carb
• 2001 Ski-doo MXZ 440 Fan Carb
• 2001 Ski-doo MXZ 500F Fan Carb
• 2003-2006 Ski-doo MXZ 550 Fan Carb
• 2007 Ski-doo MXZ 550 Fan Crank Start Carb
• 2007 Ski-doo MXZ 550 Fan Electric Start Carb
• 2011 Ski-doo MXZ 550F Sport Carb F/C
• 2013 Ski-doo MXZ 550F Sport Carb F/C
• 2010-2011 Ski-doo MXZ 550F TNT Carb F/C
• 2006 Ski-doo MXZ X 550 Carb L/C
• 2007-2009 Ski-doo MXZ X 550 Crank Start Carb F/C
• 2007-2009 Ski-doo MXZ X 550 Electric Start Carb F/C
• 2010-2011 Ski-doo Renegade 550F Sport Carb F/C
• 2013 Ski-doo Renegade 550F Sport Carb F/C
• 2006-2009 Ski-doo Skandic 300F Tundra Crank Start Carb F/C
• 2006-2009 Ski-doo Skandic 300F Tundra Electric Start Carb F/C
• 1999-2000 Ski-doo Skandic 380 Carb F/C
• 2001-2007 Ski-doo Skandic 440 LT Carb F/C
• 1999-2000 Ski-doo Skandic 500 Carb F/C
• 2004-2010 Ski-doo Skandic 550F SUV Carb F/C
• 2004-2008 Ski-doo Skandic 550F SWT Carb F/C
• 2008-2011 Ski-doo Skandic 550F Tundra Carb F/C
• 2010-2011 Ski-doo Skandic 550F Tundra LT Carb F/C
• 2004 Ski-doo Skandic 550F Tundra Sport
• 2010-2011 Ski-doo Skandic 550F Tundra Sport Carb F/C
• 2004-2011 Ski-doo Skandic 550F WT
• 2013 Ski-doo Skandic 550F WT
• 2001 Ski-doo Summit 500 Carb F/C
• 2003-2009 Ski-doo Summit 550 Fan Carb
• 2001 Ski-doo Touring 380F Fan Carb
• 1998-2001 Ski-doo Touring 500F Fan Carb
• 1998-2000 Ski-doo Touring E 500 Carb F/C
• 2009 Ski-doo Tundra 550F LT
• 2011 Ski-doo Tundra 550F LT
• 2013 Ski-doo Tundra 550F LT
• 2013 Ski-doo Tundra 550F Sport

Note: Image is for reference only, actual product may vary slightly.
