RMStator Generator Stator RM01233

Brand new Generator Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 41 mm
Exterior diameter: 115 mm
Thickness: 17 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 800 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:

Alternator: Yellow between each Yellow = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01233

Fitment:

• 2011 Lynx Rave RE 800 R
• 2007-2012 Lynx YETI Pro V-800
• 2006-2009 Lynx YETI V-800
• 2007-2009 Ski-doo Expedition V800 TUV V 4-TEC EFI L/C
• 2009 Ski-doo Legend V800 Touring
• 2009 Ski-doo Legend V800 Trail EFI L/C
• 2007-2012 Ski-doo Skandic V800 SWT EFI L/C
• 2009 Ski-doo Skandic V800 Tundra LT 4-TEC EFI L/C

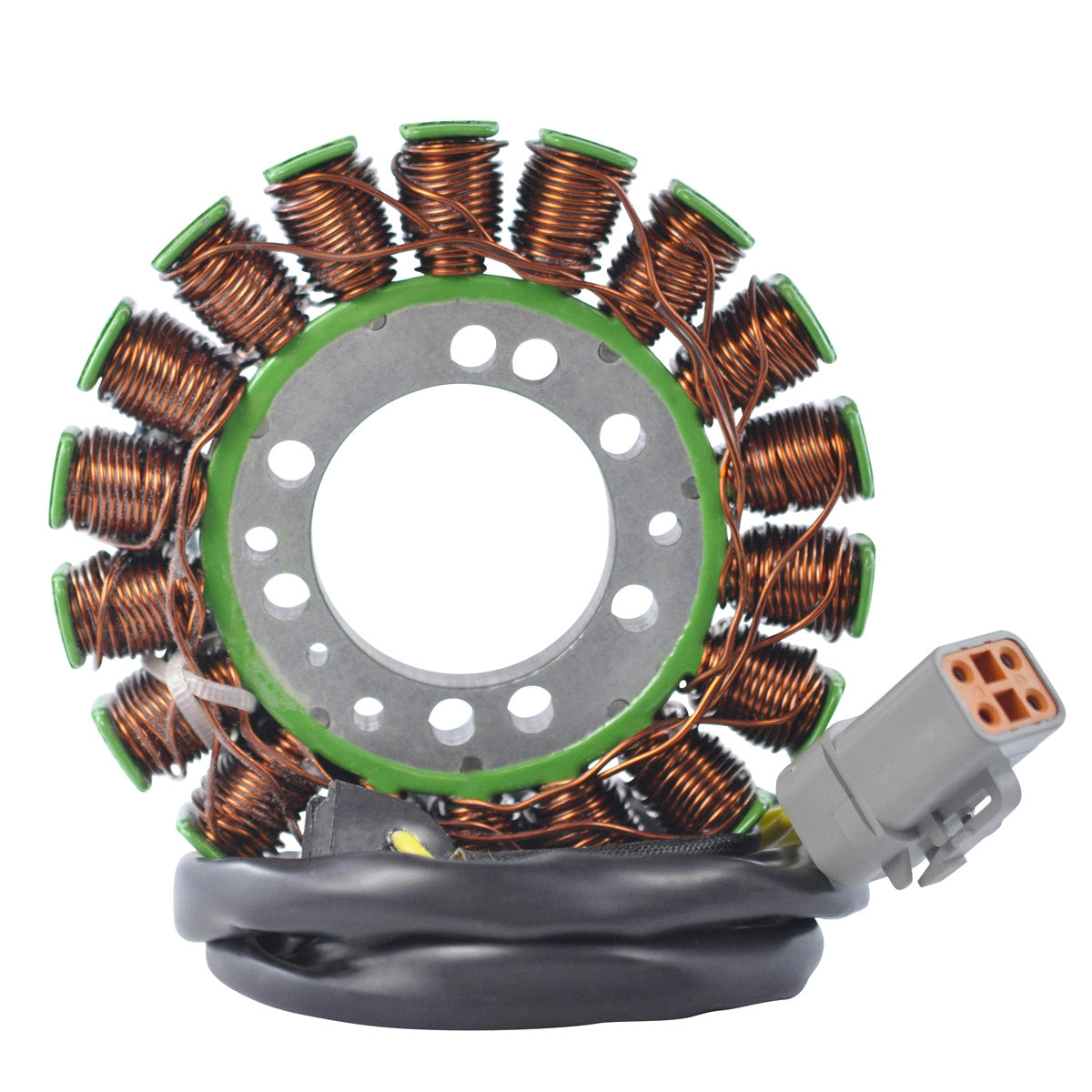

Note: Image is for reference only, actual product may vary slightly.
