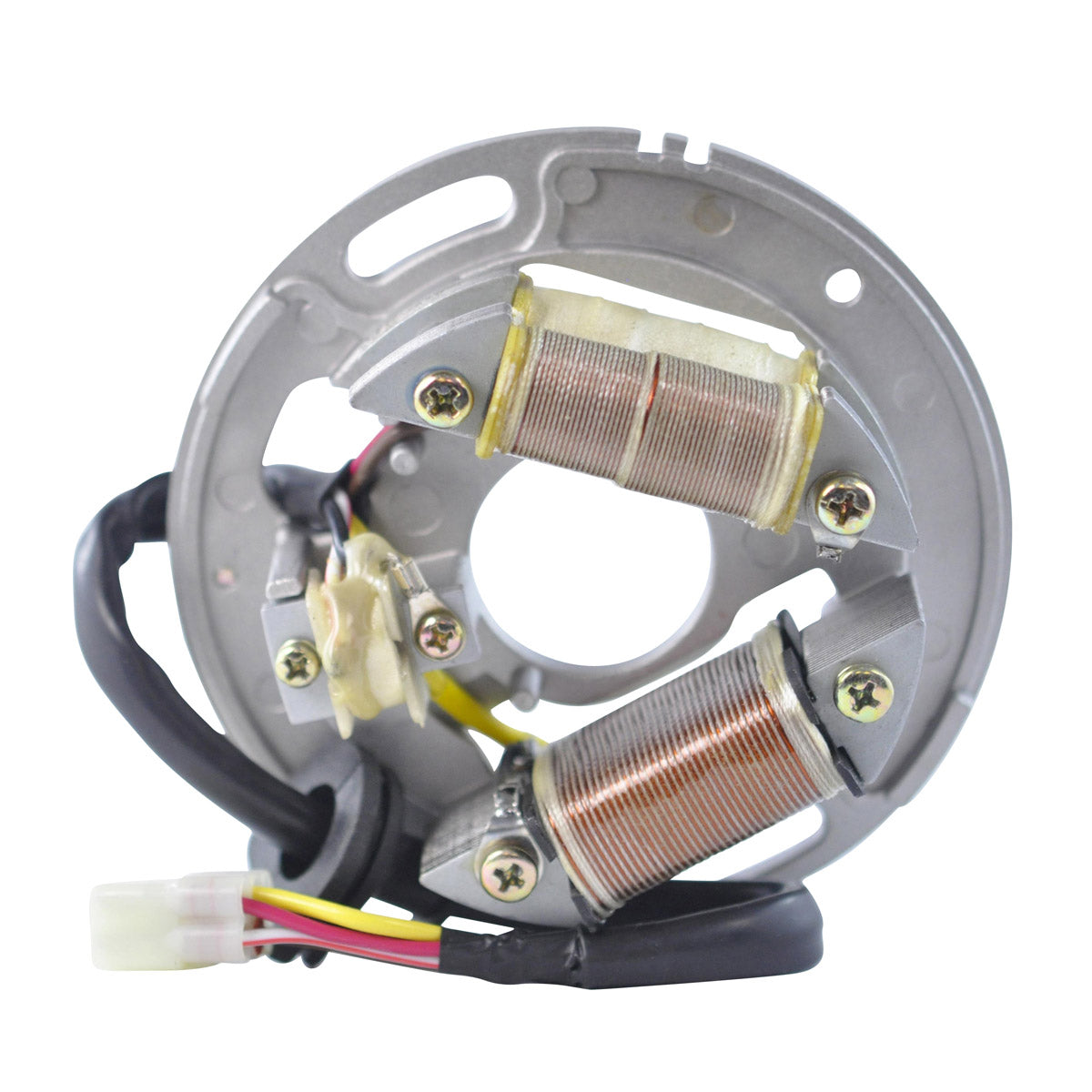

RMStator Stator RM01246

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 35mm
Exterior diameter : 125mm
Thickness : 5mm
Length of wires stator to grommet : 80mm
Length of wires grommet to plug : 140mm
Length of pickup coil's wire to grommet: 120mm

Other specifications :

Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Red to Black = 25ohms +/-20%
Source : Red to Black = 1.5ohms +/-20%
Source 2 : Red to Brown = 300ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01246

Fitment:

• 1995-2001 Yamaha Bravo BR250
• 2006-2011 Yamaha Bravo BR250

Note: Image is for reference only, actual product may vary slightly.
