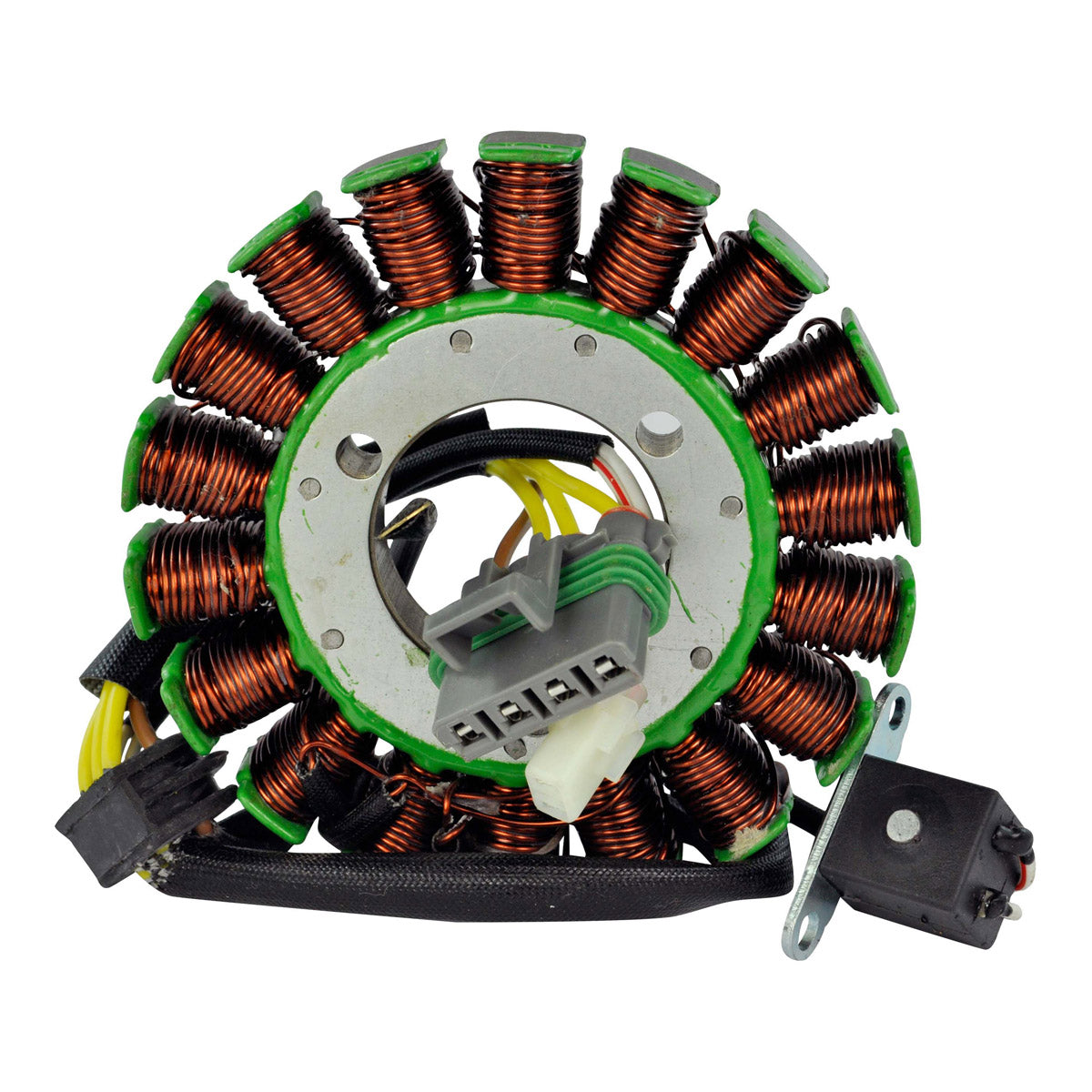

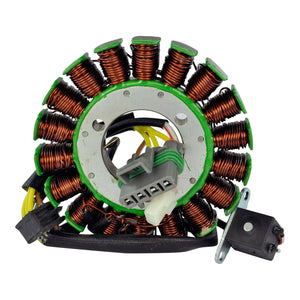

RMStator Generator Stator RM01291

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter : 41 mm
Exterior diameter : 114 mm
Thickness : 14 mmLength of wires stator to grommet : 170mm
Length of wires grommet to plug : 130mm
Length of pickup coil's wire to grommet : 110mm

Other specifications:

Number of wires : 6
Number of plugs: 2
Number of terminals : 7

Wire to wire resistance:
Alternator : Yellow to Yellow = 0.4 ohms+/-20%
Pick up : White to White/Red = 200 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01291

Fitment:

• 2010-2013 Polaris Ranger 500 4X4
• 2006-2009 Polaris Ranger 500 4x4 EFI
• 2011-2013 Polaris Ranger Crew 500 4X4
• 2006-2009 Polaris Sportsman 500 4X4
• 2006 Polaris Sportsman 500 4x4 HO EFI
• 2008-2009 Polaris Sportsman 500 4x4 HO EFI
• 2010-2014 Polaris Sportsman 500 Forest Tractor HO
• 2008-2009 Polaris Sportsman 500 Touring EFI
• 2006-2009 Polaris Sportsman X2 500 EFI

Note: Image is for reference only, actual product may vary slightly.
