RMStator Stator RM01293

RMStator Stator RM01293

Brand new aftermarket stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 28mm
Exterior diameter: 57mm
Thickness: 15mm
Length of wires stator to terminals: 600mm

Other specifications:
Number of wires: 4
Number of plugs: 0
Number of terminals: 4

Wire to wire resistance:
Source 1 : Red to White = 28 ohms +/-20%
Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01293

Fitment:

• 1996-1997 Suzuki RM125
• 2001 Suzuki RM125
• 1996-2000 Suzuki RM250

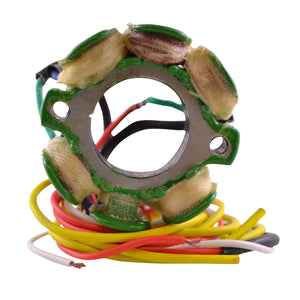

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
32101-36E00,32101-36F00,32101-37E00,32101-37E10,32101-37E30,32101-37E40,32101-37F00,32101-37E20
